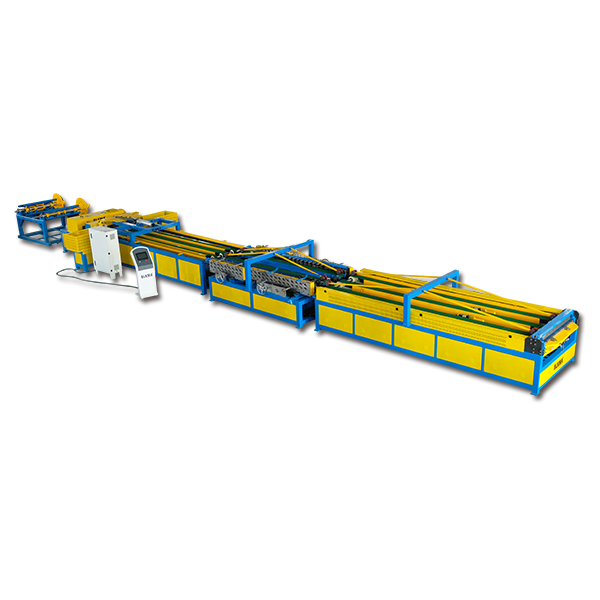

CNC AUTO DUCT FORMING LINE 5 – ADL-5U-1300


BLKMA

Coorig is a professional manufacturer of ventilation duct processing equipment and sheet metal forming machines. With CNC system as main basis, we provide customers with professional solutions and multiple options which will enhance the sustainable competitiveness of our customers.



  • A motor driven speed adjustable decoiler (Optional 8 or 10 tons of hydraulic decoiler)
  • A material supporting frame;
  • A main machine;
  • A manipulator for material clutch, transferring and positioning platform;
  • A movable high-speed Pittsburgh lock forming machine;
  • A duplex TDF flange forming machine;
  • A servo motor driven material feeding and holding platform;
  • A CNC System.

Quick info

SKU: 5546943898 Categories: ,
GET A QUOTESpecs pdf download

Description

MODELADL-5U-1300
Sheeting Thickness0.5-1.2
Maximum width1300mm
Max working speed15m/min
Coiler Max weight7T
Power 30KW
Weight 13T
Dimensions (L x W x H) 12000 * 5500 * 1500mm
