Description
| Model | ADL-III-1300 |
|---|---|
| Sheet thickness | 0.5-1.2 mm |
| Max width | 1300 mm |
| Max working speed | 15 m/min |
| Max Weight of sending coil | 7T |
| Power | 7.5 kw |
| Dimension L*W*H | 5500*1950*1350 mm |
| Weight | 3500kg. |

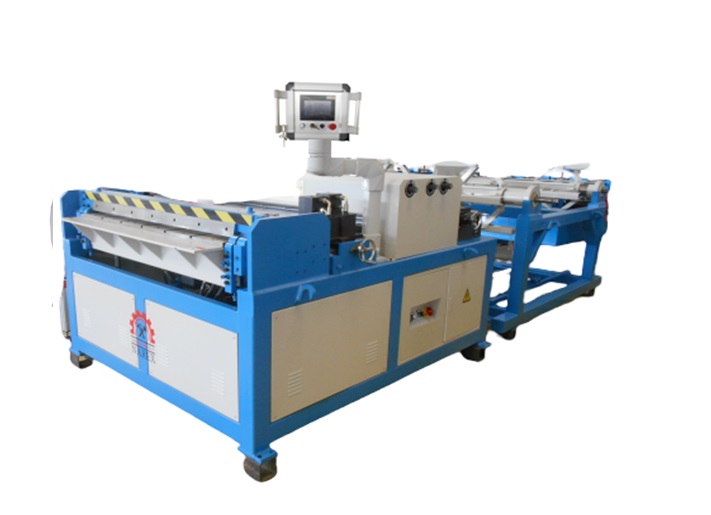

MACHINE DESCRIPTION:

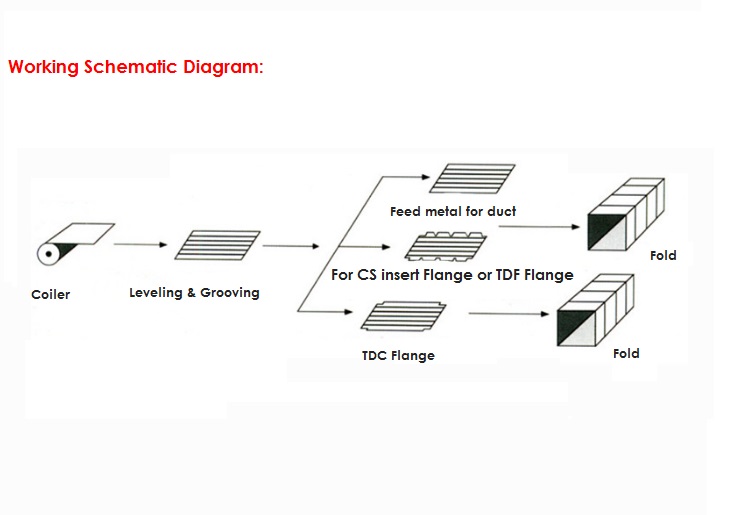

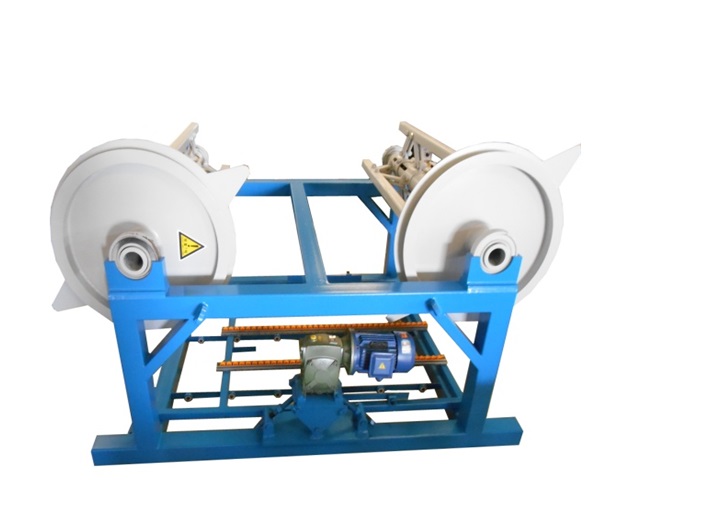

Auto Duct Manufacturing Line III is composed of one electric coil cradle (two material trays), one set leveling and beading equipment, hydraulic angle-shearing machine with four sets of die, hydraulic sheet – shearing, hydraulic bending machine, hydraulic press machine and a set of CNC computer control system and production software.
This machine greatly improves the utilization of the plate, reduce labor intensity and reduce labor. The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, accuracy and stability were obviously improved.
| Model | ADL-III-1300 |
|---|---|
| Sheet thickness | 0.5-1.2 mm |
| Max width | 1300 mm |
| Max working speed | 15 m/min |
| Max Weight of sending coil | 7T |
| Power | 7.5 kw |
| Dimension L*W*H | 5500*1950*1350 mm |
| Weight | 3500kg. |
