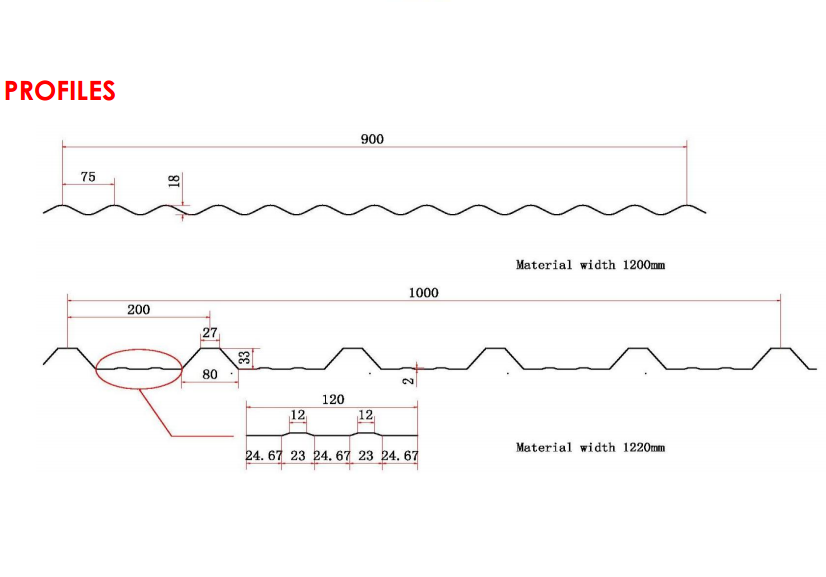

double-layer-roll-forming-machine-drawing-profile

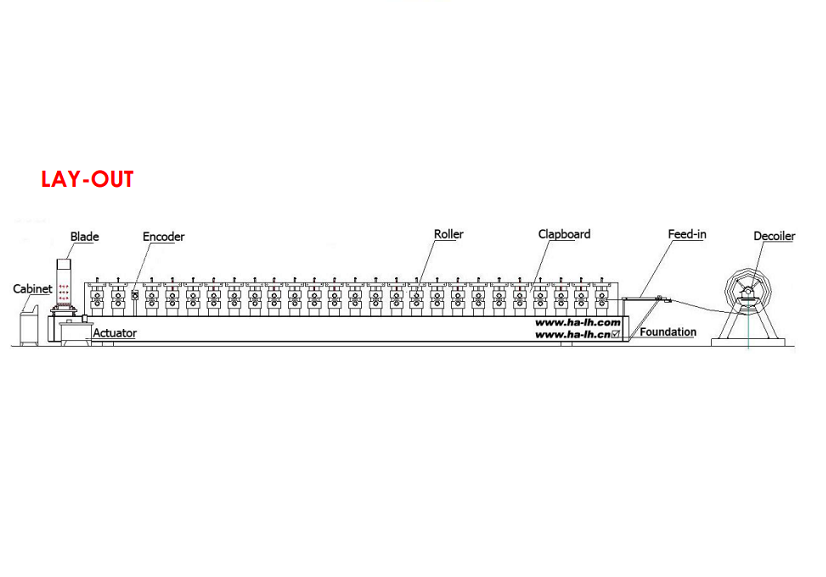

double-layer-roll-forming-machine-layout

Double Layer Roll Forming Machine With 5 Ton Manual Decoiler


GMG

Machine Description:



Double Layer Roll Forming Machine is a machine that can make two design sheets. It’s difference from a one layer roll forming machine is that it has additional rollers and blades for another roofing design which help the clients in terms of cost and space installation in the factory.



Machine Components:

  • Manual Decoiler
  • Roll Forming Machine
  • Hydraulic Shear
  • Hydraulic Station
  • PLC Control Cabinet

Quick info

SKU: 9447353463 Categories: ,
Get A QuoteSpecs PDF Download

Description

MAIN PERFORMANCE
Line speed8-12 m/min
Cutting tolerance±2 mm
Yield strength235 Mp
Max. Capacity of un-coiler5000 kgs
Machine dimension≈8000mm×1500mm×1250mm
Total G.W8500 kgs
Total power10.2 kW
Voltage380 V/50 Hz
MAIN TECHNICAL PARAMETER
Drive motor4kW × 2
Hydraulic motor2.2 kW
Diameter of solid shaftФ68 mm
Material of roller45# steel chromed
Material of foundation350 hot-rolling h-beam
Material of clapboard14# steel milled
Roller standapprox upper layer 11 stations + down layer 15 stations
