FIBER LASER CUTTING MACHINE LF3015GAR\GTR 3000W-30000W


G-WEIKE

G-WEIKE, the largest manufacturer of laser application and intelligent equipment development in Northern China is established in July 2004 and professionally focused on Laser Cutting Machine. All machines passed the European Union CE Authentication, American FDA Certificate and are certified to ISO 9001. G·WEIKE Fiber Laser Cutting Machine is equipped with German Atlanta rack, German Inovance motor and German Neugart reducer.

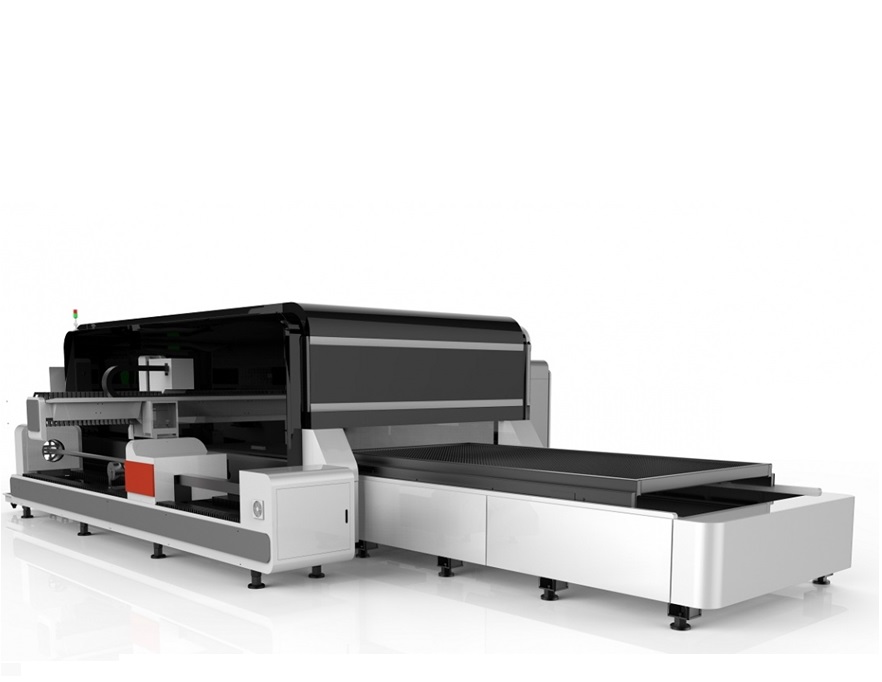

FIBER LASER CUTTING MACHINE LF3015GAR/GTR

LF3015GAR/GTR Models can cut both metal plates and metal pipes making it more productive. All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components. The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer. This machine is environment friendly as the smoke produced by cutting inside is filtered because this machine adapts a European CE Standard Laser Protective Glass.



NOTE : (Optional Table Size 3015 up to 6025)

Quick info

SKU: 1974692441 Categories: ,
GET A QUOTESpecs pdf download

Description

X axis travel1500mm
Y axis travel3000mm
Z axis travel 300mm
X, Y, U axis Positioning accuracy±0.02mm
X, Y, U axis Repeatable positioning accuracy±0.03mm
X, Y axis Max moving speed160 m/min
X axis Max Acceleration1.5G
Angle of rotation of W axisN*360
Pipe Cutting Diameter20-240mm
Laser Power3000W - 30000W
U axis Max moving speed 40m/min
X, Y, U axis max cutting speed30m/min
Specified voltage and frequency380V/50Hz/60Hz/60A
Machine size 9500x3760x2520mm
Weight8750kg
