  /    /  CNC FIBER LASER CUTTING, FIBER LASER CUTTING  /  FIBER LASER CUTTING MACHINE LF3015LN/CN 3000W-12000W

FIBER LASER CUTTING MACHINE LF3015LN/CN 3000W-12000W


G-WEIKE

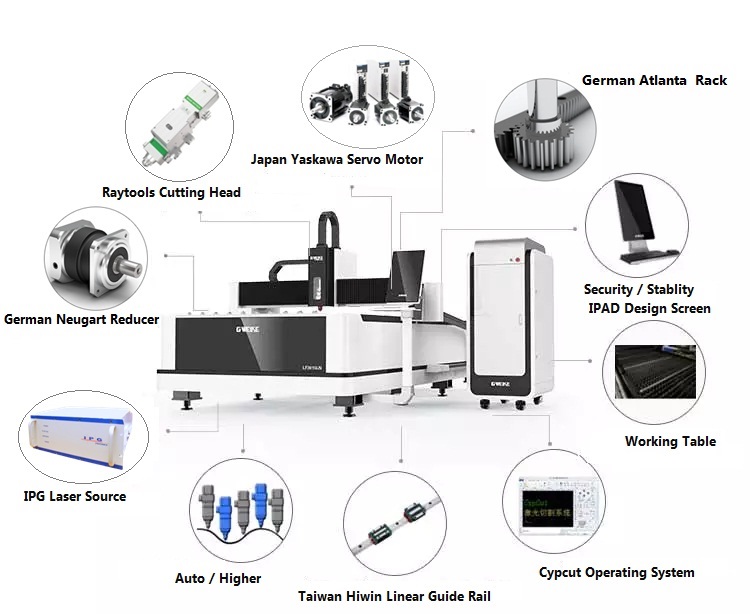

G-WEIKE, the largest manufacturer of laser application and intelligent equipment development in Northern China is established in July 2004 and professionally focused on Laser Cutting Machine. All machines passed the European Union CE Authentication, American FDA Certificate and are certified to ISO 9001. G·WEIKE Fiber Laser Cutting Machine is equipped with German Atlanta rack, German Inovance motor and German Neugart reducer.

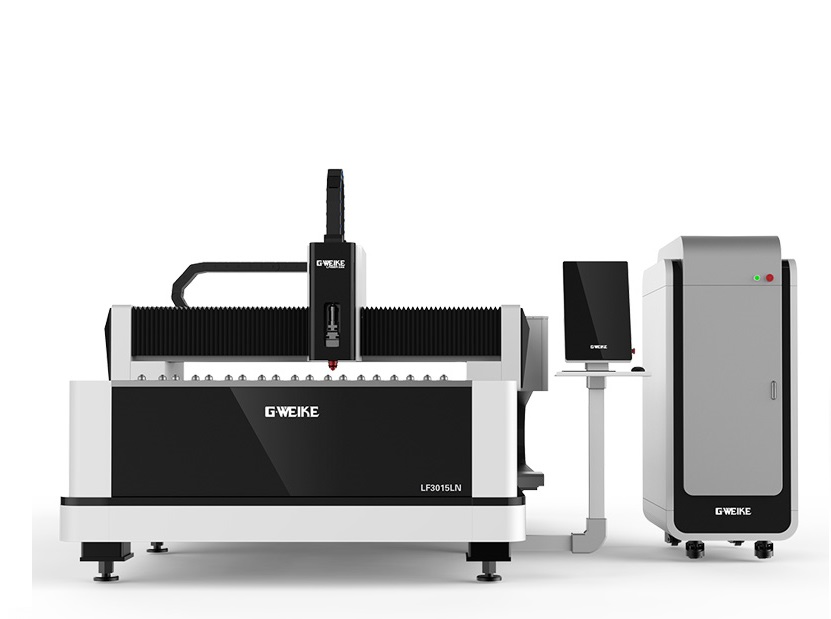

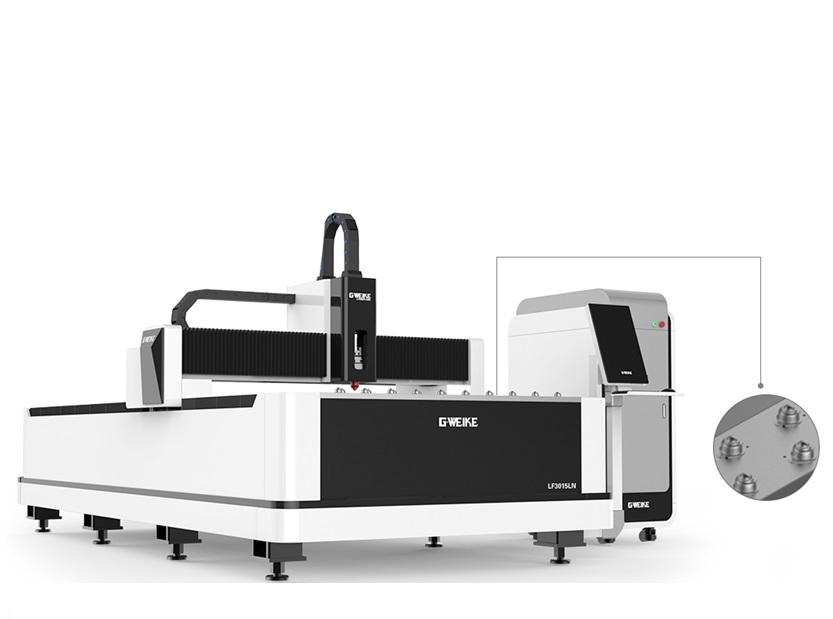

FIBER LASER CUTTING MACHINE LF3015LN /CN

The machine has Stainless Steel Protection Design. The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine’s surface. It has also Independent Control Cabinet with a dust-proof design to prolong the lifespan of the electric components. LF3015LN fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life.



NOTE :(Optional Table Size 3015 up to 6025)

Quick info

SKU: 6112056188 Categories: ,
GET A QUOTESpecs pdf download

Description

X axis travel1500 mm
Y axis travel3000 mm
Z axis travel100 mm
X, Y, U axis Positioning accuracy±0.03 mm
X, Y, U axis Repeatable positioning accuracy±0.02 mm
X, Y axis Max moving speed160 m/min
X axis Max Acceleration1.5 G
Specified voltage and frequency380V/50Hz/60Hz/60A
Laser Power 3000W - 12000W
Machine size (mm)4480 x 2450 x 19500 mm
Weight4500 kg
