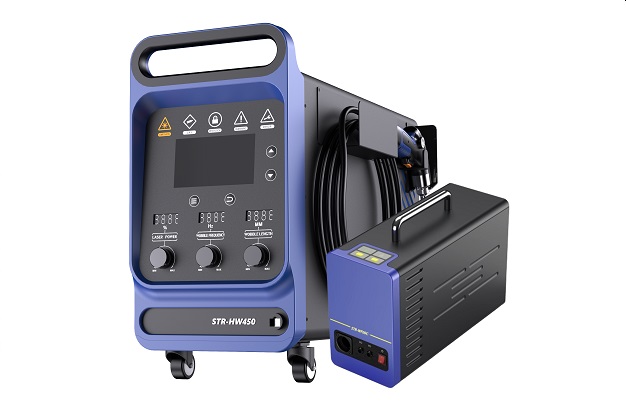

Laser Welding Machine STR-HW-450


STR

Based on the self-developed “small core diameter” laser technology, the STR-HW Series handheld laser welders adapt a new dual circuit refrigerant direct cooling system and integrated structural design. These welders can   provide customers with such experiences as high effectiveness, large penetration, high energy-efficiency, and   high convenience. These welders can weld various metal materials, including aluminum, stainless steel, carbon   steel, galvanized sheet, brass, etc. (The welder for welding special materials can be customized per user’s   requirements).

Quick info

Get A QuoteSpecs PDF Download

Description

MODEL: STR-HW-450
Rated Input power supply: Single Phase 220V
Input power frequency: 50/60Hz
Laser Power: 1200W
Peak Power: 2000W
Guide Beam: Class 1 Red Guide Beam
Laser Type (Welding Mode): Ytterbium Continuous Wave 1070nm Fiber Laser
Wavelength: 1080nm
Spot Size: 14µm
Wobble Length: 5mm
Cooling: Dual- circuit refrigerant direct cooling
Weld Penetration (Single Side)Aluminium: <4mm
Stainless Steel: <4mm
Carbon Steel: <4mm
Galvanized Sheet: <4mm
Brass: <2mm
Mild Steel: <4mm
Process Gas: Argon, Nitrogen, Helium, Compressed Air
Applicable wire diameter: 0.8/1/4.2/1.4/1.6mm
Safety: Class 4 laser Device
Standard ANSI Z136.1 safety precautions. System features include key for laser ON/OFF, 2 step laser operation trigger (Enable and Fire), part- head contact safety circuit, facility door interlock circuit
Working temperature: -20~60°C
Storage Temperature: -30~70°C
Working Humidity: 0-90%
Product Dimensions: 673x605x310mm
Product Weight: 38kg
