MAXPRO 200


HYPERTHERM

Hypertherm is working  tirelessly on innovations to help meet market needs with a history of delivering industry-leading cutting technology and look at the future with possibility. With engineering team that works together to optimize the performance of your system across the Hypertherm product line. Hypertherm’s plasma cutting solutions range from powerful, portable Powermax® systems for cutting and gouging to industry-leading HyPerformance® mechanized cutting systems, as well as LongLife® heavy-duty production tools, and the diesel-driven Freedom™ system.

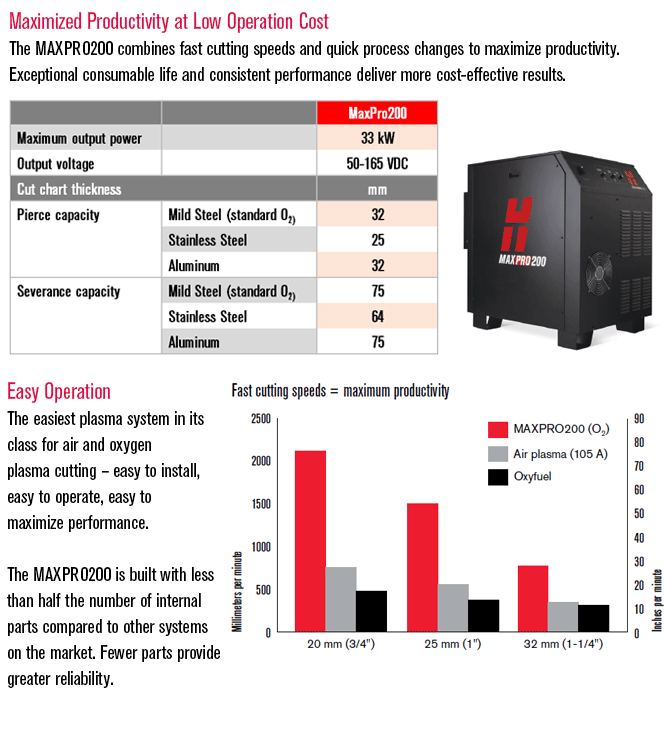

The MAXPRO200® LongLife® plasma cutting system is engineered for heavy-duty, high capacity automated and handheld cutting and gouging applications. The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity. Advanced Hypertherm consumable designs – including LongLife® technology – improve cut consistency and significantly increase consumable life to lower your cost per part.



Quick info

SKU: 6094647777-1-1-1-1-1 Categories: ,
GET A QUOTESpecs pdf download

Description

Input Voltages 200/208 VAC, 3-PH, 50 Hz, 108/104 A
220 VAC, 3-PH, 50 – 60 Hz, 98 A
240 VAC, 3-PH, 60 Hz, 90 A
380 VAC, 3-PH, 50 Hz, 57 A
400 VAC, CE, 3-PH, 50 – 60 Hz, 54 A
415 VAC, CE, 3-PH, 50 Hz, 52 A
440 VAC, 3-PH, 50 – 60 Hz, 49 A
480 VAC, 3-PH, 60 Hz, 45 A
600 VAC, 3-PH, 60 Hz, 36 A
Output Voltage50-165 VDC
Maximum Output Current200 A
Duty Cycle Rating100% @ 33 kW, at 40° C (104° F)
Operating Temperature-10° C to 40° C (+14° F to +104° F)
Power Factor0.98 @ 33 kW output
Maximum OCV360 VDC
Dimensions102 cm H, 69 cm W, 105 cm L
Weight335 kg
Gas SupplyPlasma gasAir, O2, N2
Shield gasAir, N2
Supply gas pressure6.2 +/- 0.7 bar (90 +/- 10 psig)
