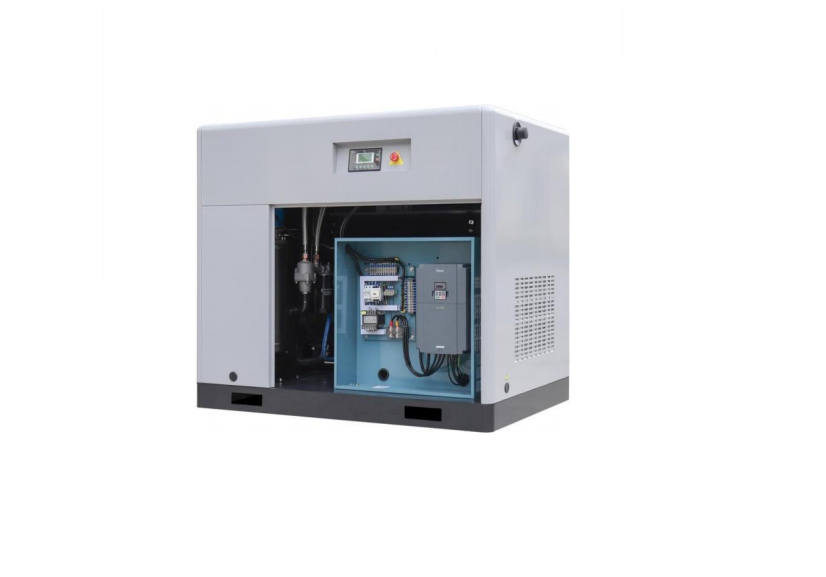

SCREW AIR COMPRESSOR LW-50D


PIONEERAIR

PIONEERAIR COMPRESSOR has been devoted to researching, producing and selling air compressors since the factory was founded in 1980s. With experienced research teams, advanced technology and inspection equipment in these more than 30 years, the brand compressors are becoming more and more famous home and abroad.

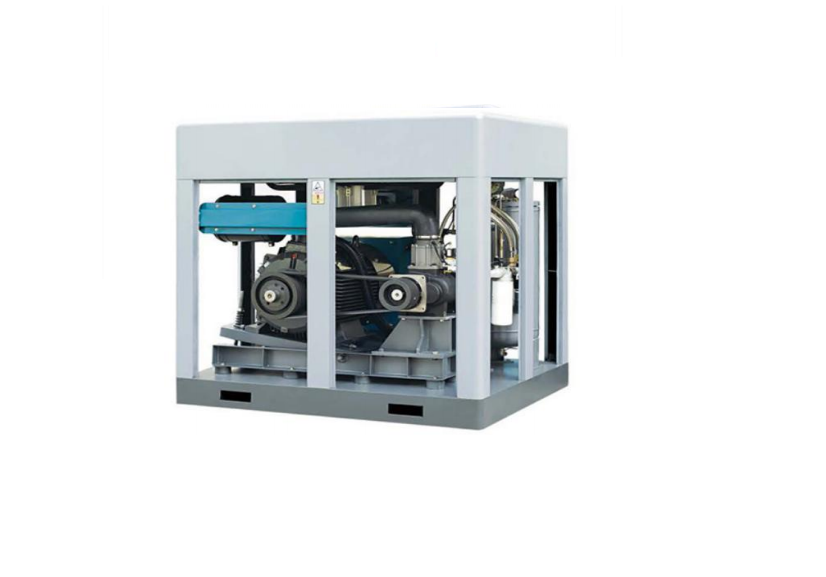

LW-D Series-DIRECT DRIVEN SCREW AIR COMPRESSOR
The Direct Drive of the Compressor eliminates the loss of mechanical energy. Due to the lack of the transmission, this increases the efficiency. A huge advantage is the lack of a systematic replacement of belt drives, which reduces the cost of maintenance of equipment. Due to direct drive, the noise level of the compressor is reduced and energy consumption is saved. In addition, a direct drive compressor can be used in almost any operation environment. It does not react to the ingress of particles of dust or other impurities into the mechanism.

Quick info

SKU: 3501724921 Categories: ,
GET A QUOTESpecs pdf download

Description

SCREW AIR COMPRESSOR
Power37 kw / 50 HP
Rate Pressure1.0 Mpa (10Bar)
Exhaust Volume5.6 m³/min (198 cfm)
Driving wayDirect driven
Cooling WayAir cooling
Type of Cooling
0.7 Mpa (101psi)6.4
0.8 Mpa (116psi)6.2
F.A.D m³/min1.0 Mpa (145psi)5.6
1.2 Mpa (174psi)4.6
Discharge Temperature ≤Ambient Temperature +15 ˚C
Ambient Temperature3-40 ˚C
Lubricant18 Ltr.
Noise Level72±3 Db (A)
Motor Speed2950 rpm
Starting MethodY- △Start
Voltage/ Frequency3Phase /380V / 50Hz
Isolation GradeGrade F
Air Outlet Port SizeG1 ½
Weight880kgs
Dimensions(LXWXH)1580 x 1080 x 1380mm
  • Microcomputer control System
  • nvironmental Protection & Durability
  •  Low Vibration & Low noise
  • High efficiency , heavy load , silent
