Tube Fiber Laser Cutting Machine

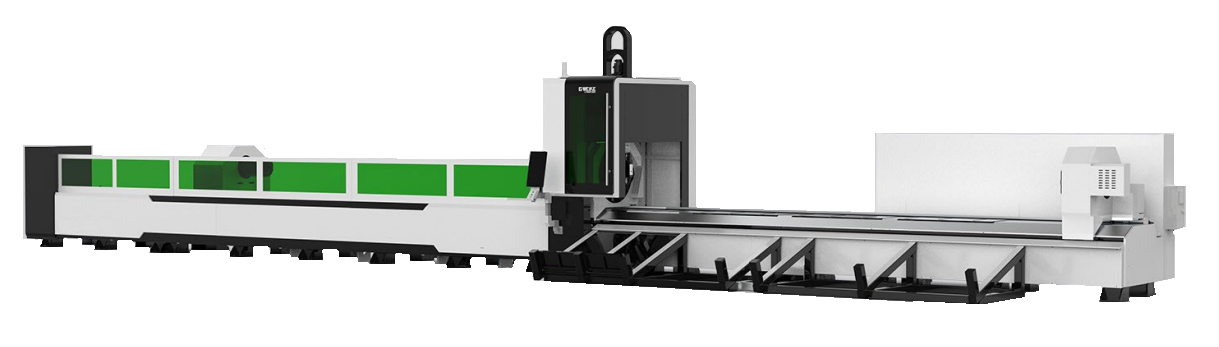

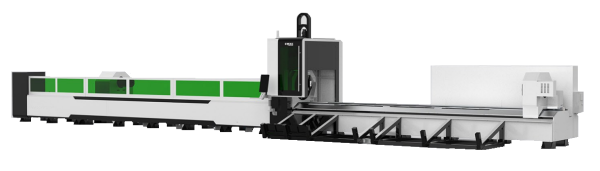

THREE- CHUCK HEAVY DUTY PIPE LASER CUTTING MACHINE MODEL : GKS12036T3-6000W RAYCUS/MAX

G-WEIKE

GKS 12036T3 is a side-mounted three-chuck heavy-duty laser pipe cutting machine. It is equipped with 360 square precision pneumatic 3-chucks, which can realize the zero-tailing cutting process (realized under the condition of reasonable process layout) and the largest single piece. The bearing capacity of the pipe is 1200KG.
Tube diameter cutting range: round tube φ30-φ350mm, square tube □30X30-□
This pipe cutting machine is very suitable for cutting standard pipes such as round pipes, square pipes, and rectangular pipes, as well as profiles such as I-beams, channel steels, and angle steels. The third chuck is designed as a through-hole chuck, which can cut the whole pipe material and can clamp the pipe head in the shape of an inclined plane. The chuck is installed as a side-mounted installation, which effectively reduces the center height of the chuck, facilitates loading and unloading and improves the stability of the machine.

Quick info

Get A Quote

Specs PDF Download

Description

MODEL	: GKS12036T3- 6000W RAYCUS
Pipe Diameter Range
(Diameter of circumscribed circle)	: Φ30-350mm, （Round tube）
□30x30- □350x350mm（Square tube）
Max Single Tube Bearing	: 1200kg
X/ Y/ Z axis travel	: 425mm / 12,500mm / 750mm
Fully Automatic	: OPTIONAL
Single Tube Feeding	: YES
Max. Feeding Length	: 12,500mm
Max. Blanking Length	: 6,500mm (Optional blanking length: 9,500mm or 12,500mm)
Max. speed of chuck	: 60r/min
Idle Speed	: 60m/min
Acceleration	: 0.5G
Repeat positioning accuracy	: ±0.03
Lubrication Type	: Automatic Oiling
Machine size (mm)	: 24000 x 8500 x 3600 mm
Specified voltage and frequency	: 380V/50Hz
Laser Power	: 6000W
Gross Weight	: around 35,000kg
Brand New	: China
