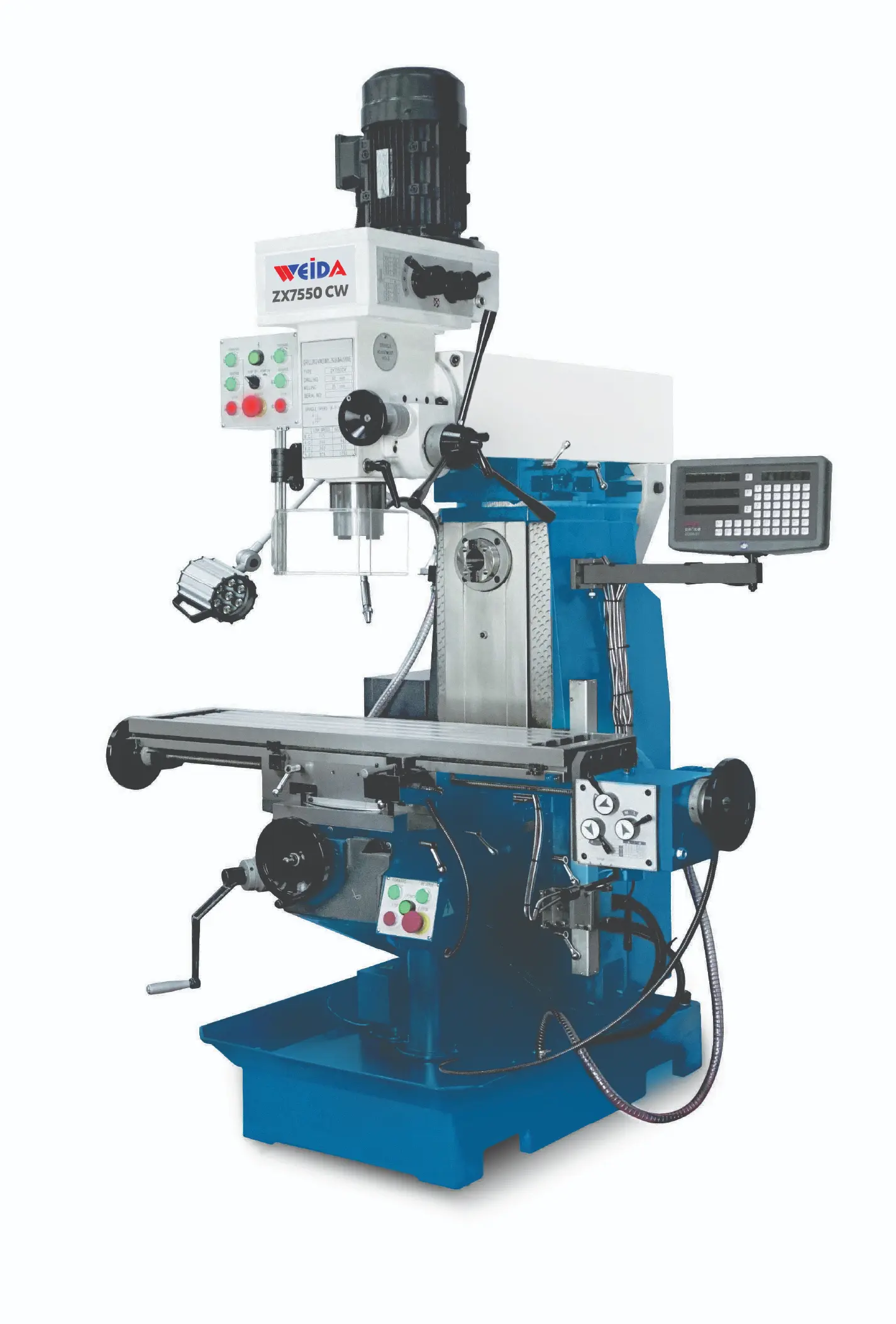

Drilling & Milling ZX7550CW


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines, CNC gantry milling machines, universal milling machines, CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



Machine Description: The machine is used for cutting metals and non-metals. It’s suitable to drill, mill, bore and widely use in the field for instrument, machining, repairing for cutting a single part or a batch.

Quick info

SKU: 9589161480 Categories: ,
Get A QuoteSpecs PDF Download

Description

DRILLING & MILLING MACHINE
Model NoZX7550CW
Brand Name“WEIDA”
Max. Drilling Diameter50mm
Max. Horizontal Milling Diameter100 mm
Max. Vertical Diameter25 mm
Max. Tapping DiameterM16
Max. Boring Diameter120
Spindle taperM.T.4
Spindle Speed Number8, 9 / 9, 9 / 8, 9
Spindle Speed Range 50 /60 HZ230-1825 (276-2190)
60-1350 (72-1620)
220- 2400 (270-2950)
60-1350 (72-1620)
115-1750 (140-2100)
60-1350 (72-1620)
Distance between spindle & surface of column200 -700
Distance between spindle & table100 – 480
Distance between the axis of Spindle & table0 - 380
Spindle Travel120 mm
Table Size800 * 240
1000 * 240
Table travel400 * 230
600 * 230
Motor PowerYD100L-8/4 0.85/1.5Kw
Y90L-4 1.5kw
YL901-4 1.5kw (1PH)
Overall Size1120 x 1060 x 2035
Net weight970kg
