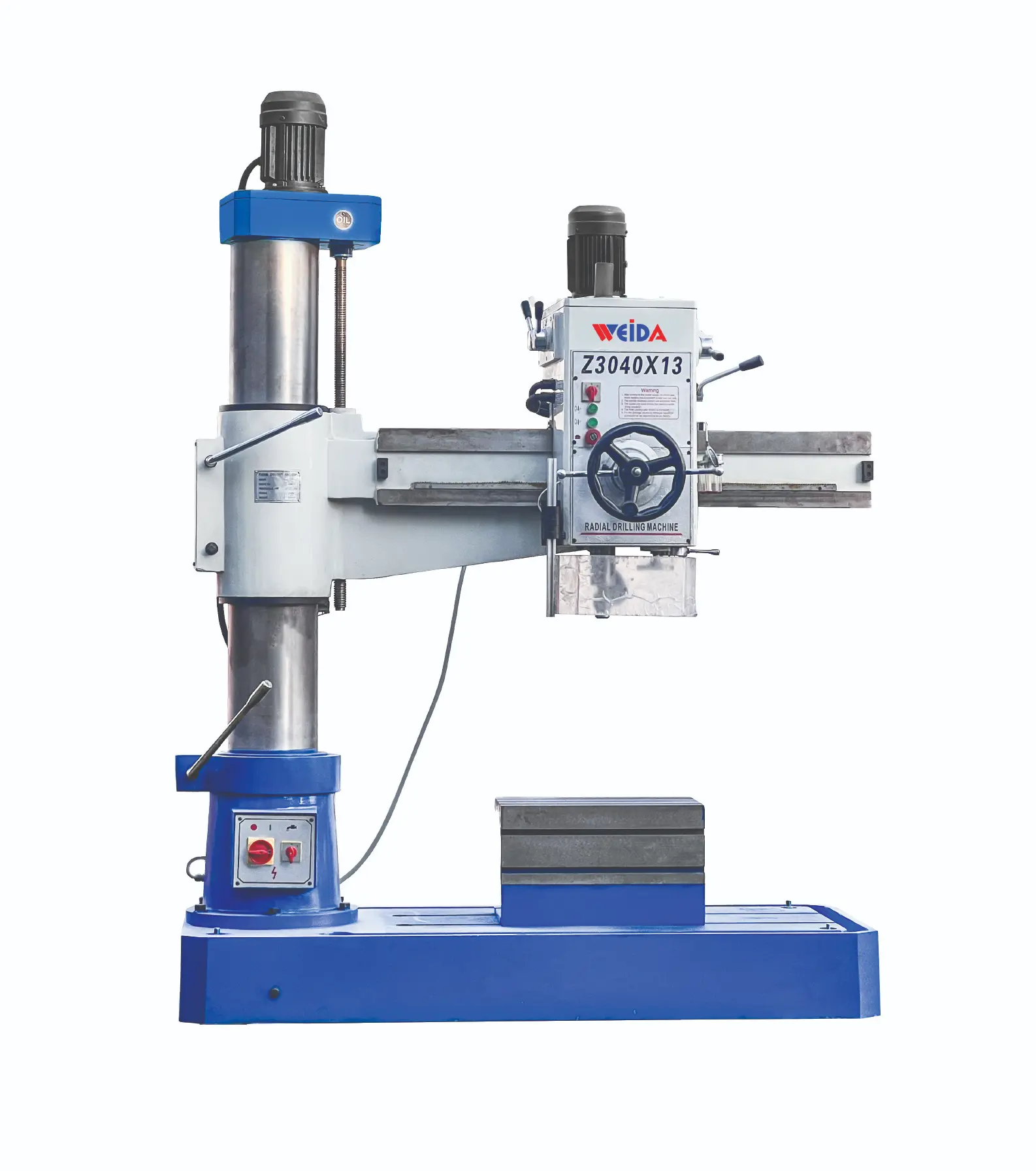

RADIAL DRILL Z3040X13


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines , CNC gantry milling machines , universal milling machines , CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, a product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



MACHINE DESCRIPTION:

Radial Drilling Machine consists of a heavy round vertical column supporting a horizontal arm that carries the drill head. It is used primarily for drilling medium to large and heavy work piece. The machine has wide range application in machinery process such as drilling, tapping even boring if with essential device.

Quick info

SKU: 1936504493 Categories: ,
GET A QUOTESpecs pdf download

Description

RADIAL DRILLING MACHINE
Brand Name “WEIDA”
Model No Z3040 x 13
Max. Drilling Diameter (mm) Iron 40
Steel 32
Center line of the spindle to column (mm)Max. 1300
Min. 360
Horizontal traverse of spindle head 950
Distance from spindle nose to worktable (mm)Max. 1050
Min. 260
Spindle travel (mm) 200
Spindle taper MT4
Spindle speed (6 steps) r/min 75,130,240,380,660,1200
Spindle feed (3 steps) mm/r 0.10,0.16,0.25
Max. feed force permissible for the spindle (N) 6300
Vertical traverse speed of the arm (m/min) 1.3
Swivel of the arm 360°
Main Motor power (Kw) 2.2
Elevating motor (kw) 1.1
Net weight 1900 kg
Overall dimension (mm) 1800 x 810 x 2200
