LATHE MACHINE C6256 x 2000


NARVIK

MACHINE DESCRIPTION :

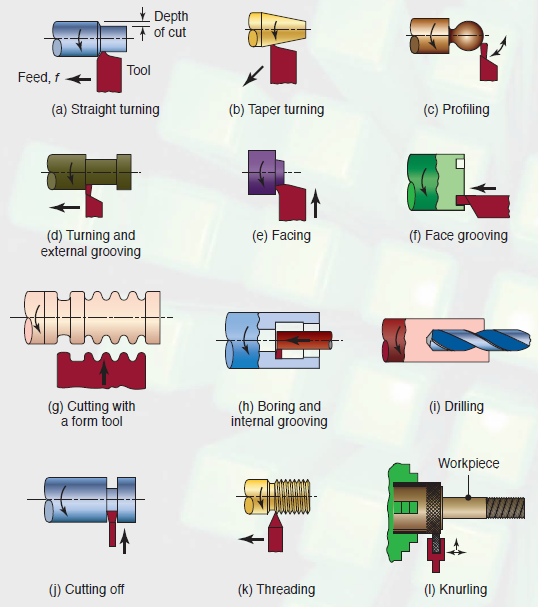

Lathe Machine is a machine tool that is used to remove metals from a workpiece to give a desired shape and size. This Lathe Machines are used in metalworking and parts reclamation. The various other operations that you can perform with the help of Lathe Machine can include sanding, cutting, knurling, drilling, and deformation of tools that are employed in creating objects which have symmetry about the axis of rotation.

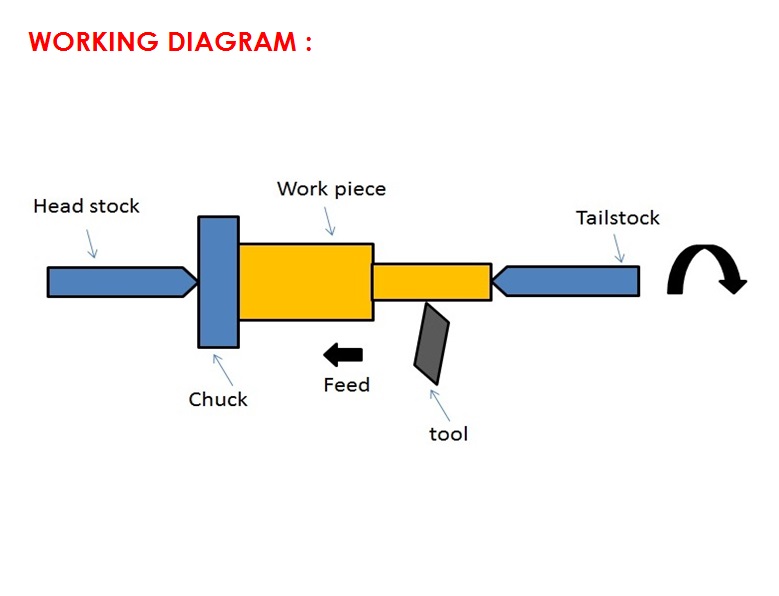

WORKING PRINCIPLE :



Lathe is a machine tool which holds the worpiece between two rigid and strong supports called center or in a chuck or face plate which revolves. The cutting tool is rigidly held and supported in a tool post which is fed against the revolving work.  The normal cutting operations are performed with the cutting tool fed either parallel or at right angles to the axis of the work. The cutting tool may also be fed at an angle relative to the axis of work for machining tapers and angles.

Quick info

SKU: 2395800368 Categories: ,
GET A QUOTESpecs pdf download

Description

LATHE MACHINE
Model NumberC6256 x 2000
Brand nameNARVIK

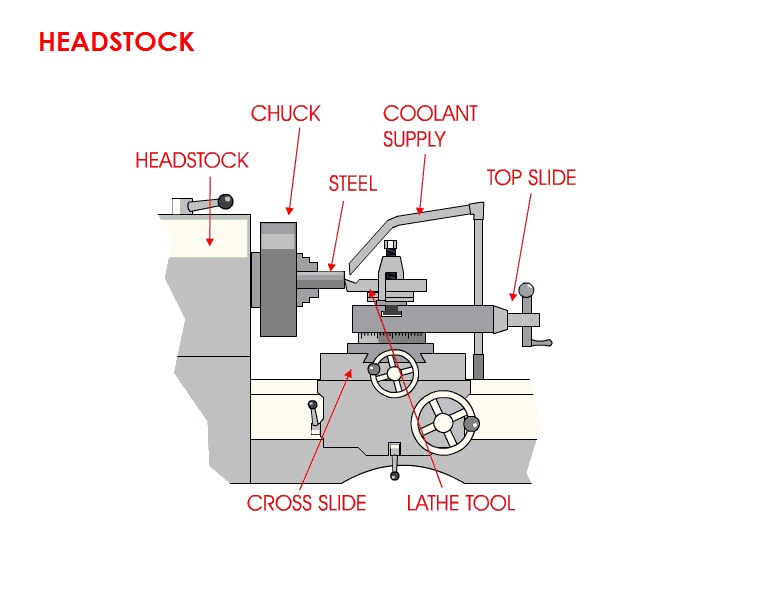

CAPACITYHEADSTOCK
Swing over bedø 560mmSpindle boreø 80mm
Swing over cross slideø 355mmSpindle noseD1-8
Swing in gap diameter x width785mm x 170mmSpindle morse taper in noseM.T.No.7
Height of center280mmSpindle speeds number12
Distance between centers2000mm Spindle speeds range25-1600 r.p.m

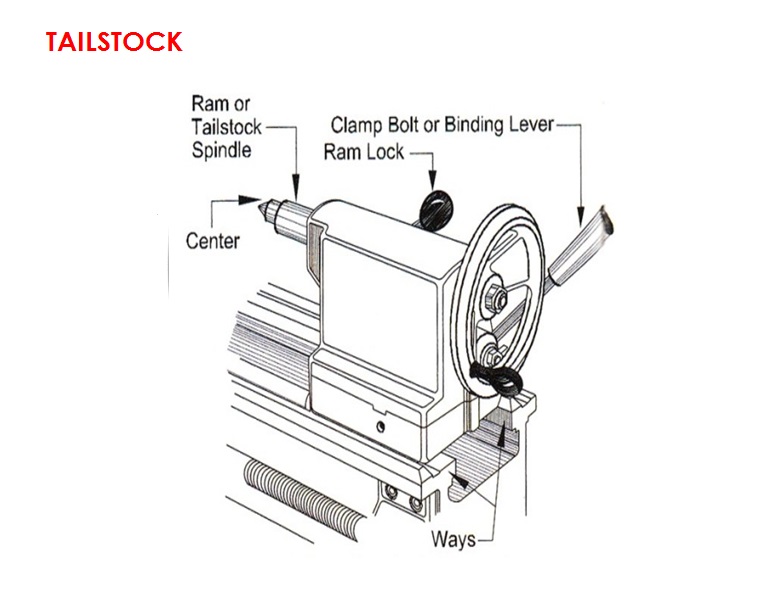

Width of bed350mmTAILSTOCK
Cutting tool max section25 x 25mmTotal Travel of tailstock Quill180 mm
Total travel of cross slide316mmTailstock quill diameterø 75mm
Total travel of top slide130mmTaper in tailstock quillM.T. No.5

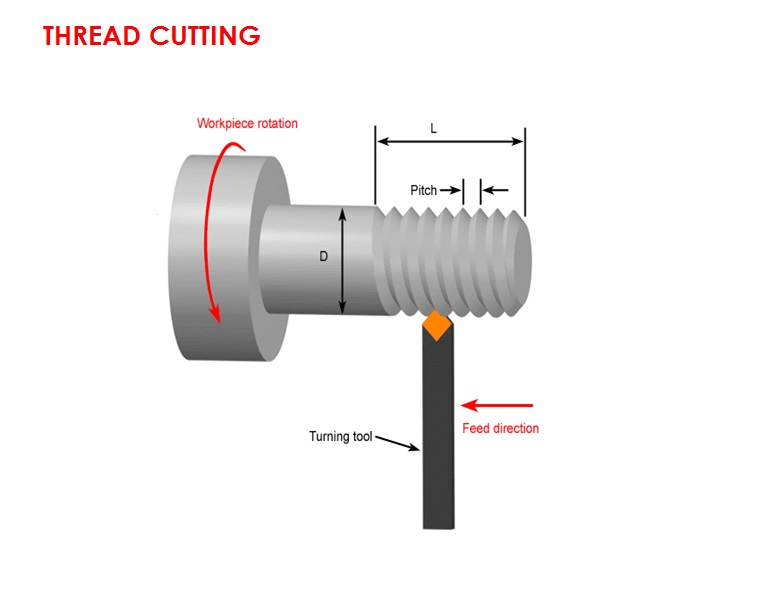

THREAD & FEEDSMOTORS
Leadscrew Diameter & Treadø 40mmx4T.P.I or Pitch 6mmSpindle drive motor7.5KW (10HP) 3PH
Threads imperial pitches2-112 T.P.I (60nos)Coolant pump motor0.1KW (1/8HP)
Thread metric pitches0.2-14mm (47nos)WEIGHT & MEASURES
Diametrical Pitches4-112D.P (50nos)Overall dimension (L x W x H)3340 x 1150 x 1460 mm
Module Pitches0.1-7M.P. (39nos)Net Weight2720Kg
Longitudinal feeds Imperial0.002”-0.0612”/Rev (35nos)Gross weight 3110Kg
Longitudinal feeds Metric0.059-1.646mm/Rev(35nos)
Cross- feeds Imperial0.00048”-0.01354” (35nos)
Cross feeds Metric0.020-0.573mm (35nos)
