HYDRAULIC BAND SAW SEMI AUTOMATIC 260 BSA


CARIF

Carif is a mechanical company in the band saws market since 1948. Today it is a modern and flexible reality, which exports its products all over the world.



MACHINE DESCRIPTION :

Extremely robust Semi-Automatic Band Saw designed of small dimensions, high robustness and for practical working operations.equipped with 2 speed motor 1.4 Kw ,  Ø220 mm; 260x150h mm. It is used to cut many kinds of metal materials like carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless acid resistant steel.



WORKING PRINCIPLES:

Band Saw is a precision cutting tool. The working principle of a band saw machine cuts material to desired shape. Cuts are made by a blade that has long sharp teeth continuously rolling in loop through material.

Quick info

SKU: 5978864081 Categories: , ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC BAND SAW SEMI AUTOMATIC
Machine No.260-BSA
Brand NameCARIF

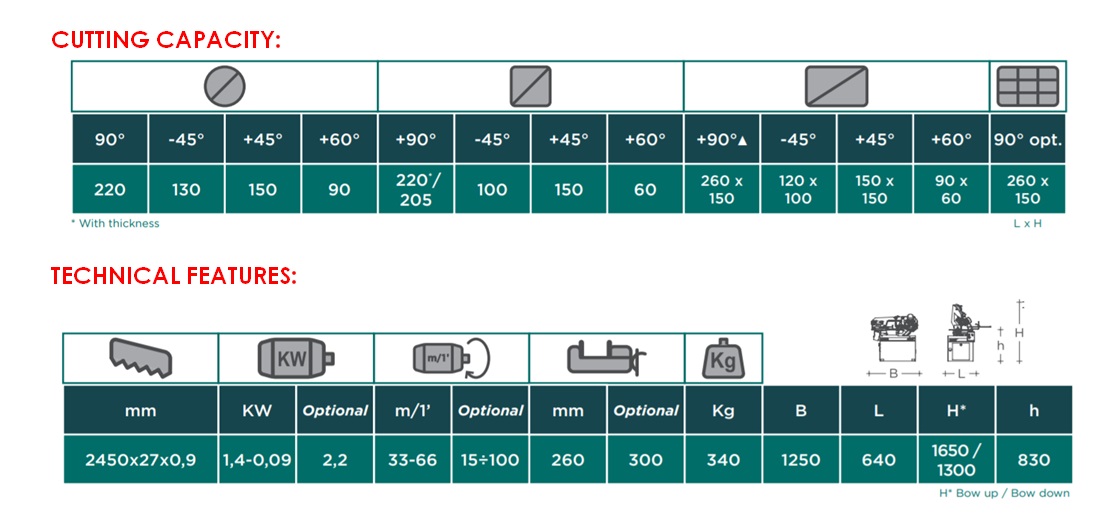

CUTTING CAPACITY
90°220 mm
-45°130 mm
45°150 mm
60°90 mm
+90° 220*/205 mm
-45°100 mm
+60°60 mm
+90°▲260 x 150 mm
-45°120 x 100 mm
+45°150 x 150 mm
+60°90 x 60 mm
+90° (OPTIONAL)260 x 150 mm
2450 x 27 x 0.9 mm
1.4-0.09 KW
OPTIONAL2.2 KW
33-66 m/1’
OPTIONAL15÷100
260 mm
OPTIONAL300 mm
STANDARD FEATURES:
  1. Robust base structure in steel powder painted with bright and smooth finishing
  2. Bow structure in special aluminum alloy hardened.
  3. Patented Hydraulic system for a fine regulation of bow feed and cutting pressure.
  4. Blade motor 1, 1/1, 4 KW; 2 speed regulation 33-66 m/1’.
  5. Miter cutting -45/+60°; bow rotation through conical bearings independent from the plans for piece support.
  6. Electrical cabinet easily movable for the best ergonomics.
  7. Wide plans for piece support for a comfortable and practical cutting area.
  8. Complete coolant equipment of 50lt. tank with electro-pump 3ph. 0,1KW inside the basement.
  9. Measuring device L=500 mm with height regulation.
  • Large chips container for easy cleaning.
  • Bimetal blade M42 mm 2450x27x0.9, cardboard box + pallet, service wrenches instruction manual and spare list.
