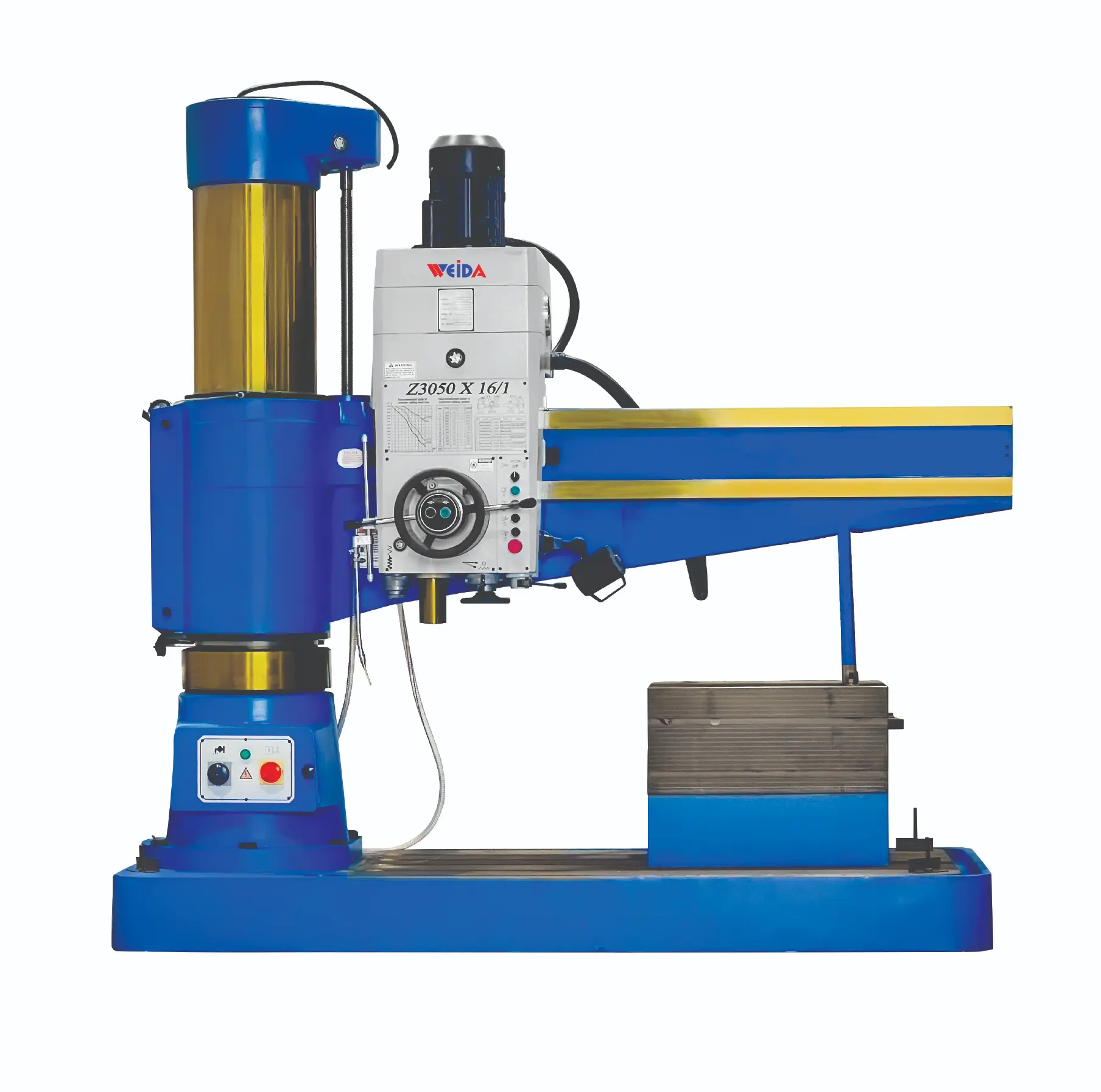

RADIAL DRILL MACHINE Z3050 x 16


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines , CNC gantry milling machines , universal milling machines , CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, a product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



MACHINE DESCRIPTION:

Radial Drilling Machine consists of a heavy round vertical column supporting a horizontal arm that carries the drill head. It is used primarily for drilling medium to large and heavy work piece. The machine has wide range application in machinery process such as drilling, tapping even boring if with essential device.

Quick info

SKU: 9672138499 Categories: ,
GET A QUOTESpecs pdf download

Description

RADIAL DRILL MACHINE
Model No.Z3050 x 16
Brand Name WEIDA
Drilling Capacity 50 mm
Distance column surface to spindle center 350-1600 mm
Max. Travel of Spindle 315 mm
Max. distance base to spindle 320-1220 mm
Spindle Travel 315 mm
Spindle Tap MT5
Number of Spindle Speed 16
Range of Spindle Speed 25-2000 r/min
Number of Feed 16
Range of feed 0.04-3.2 mm/r
Elevating Speed 1.2m/min
Angle of arm rotation 360°
Max torque of Spindle 400 N.m
Max feed Load 16000 N
Spindle driving motor 4 kw
Arm elevation motor 1.1kw
Clamping motor 0.75 kw
Coolant pump 0.120 kw
Weight 3500 kg.
Overall dimensions (L x W x H) 2500 x 1070 x 2840 mm
