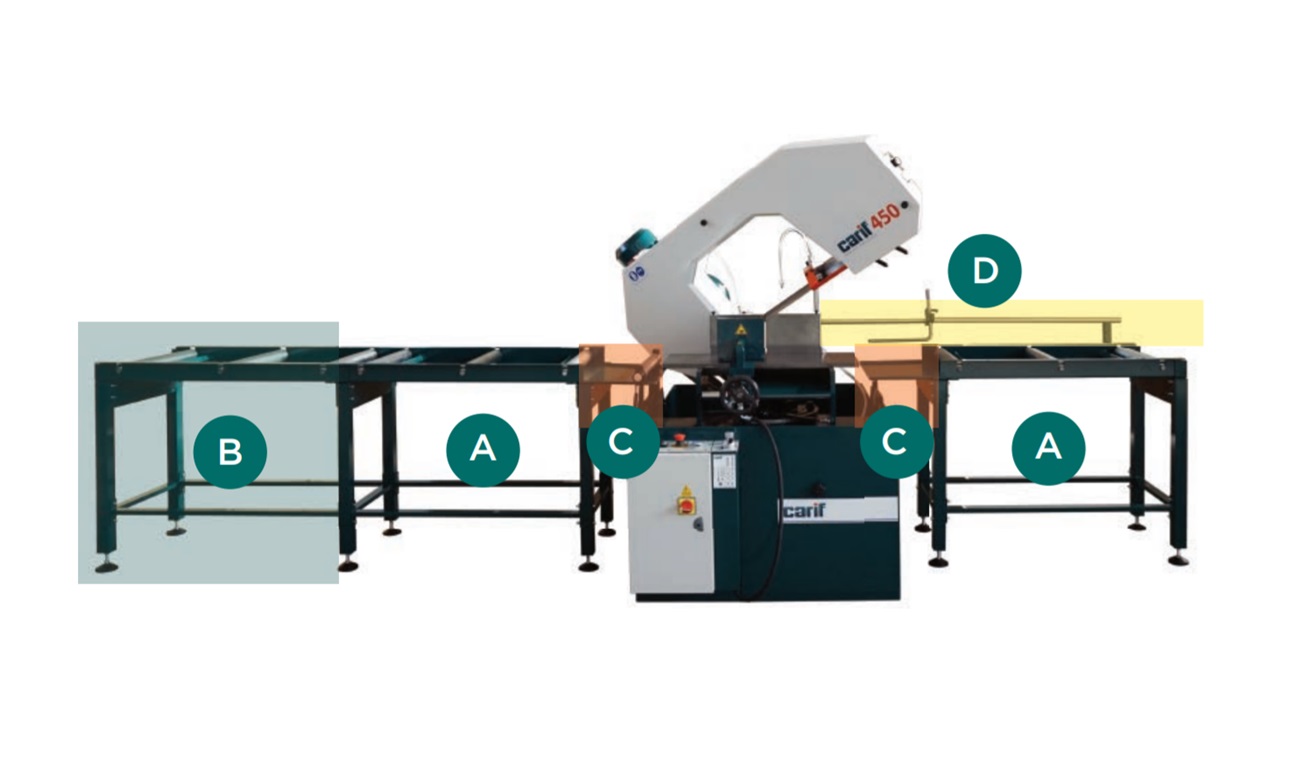

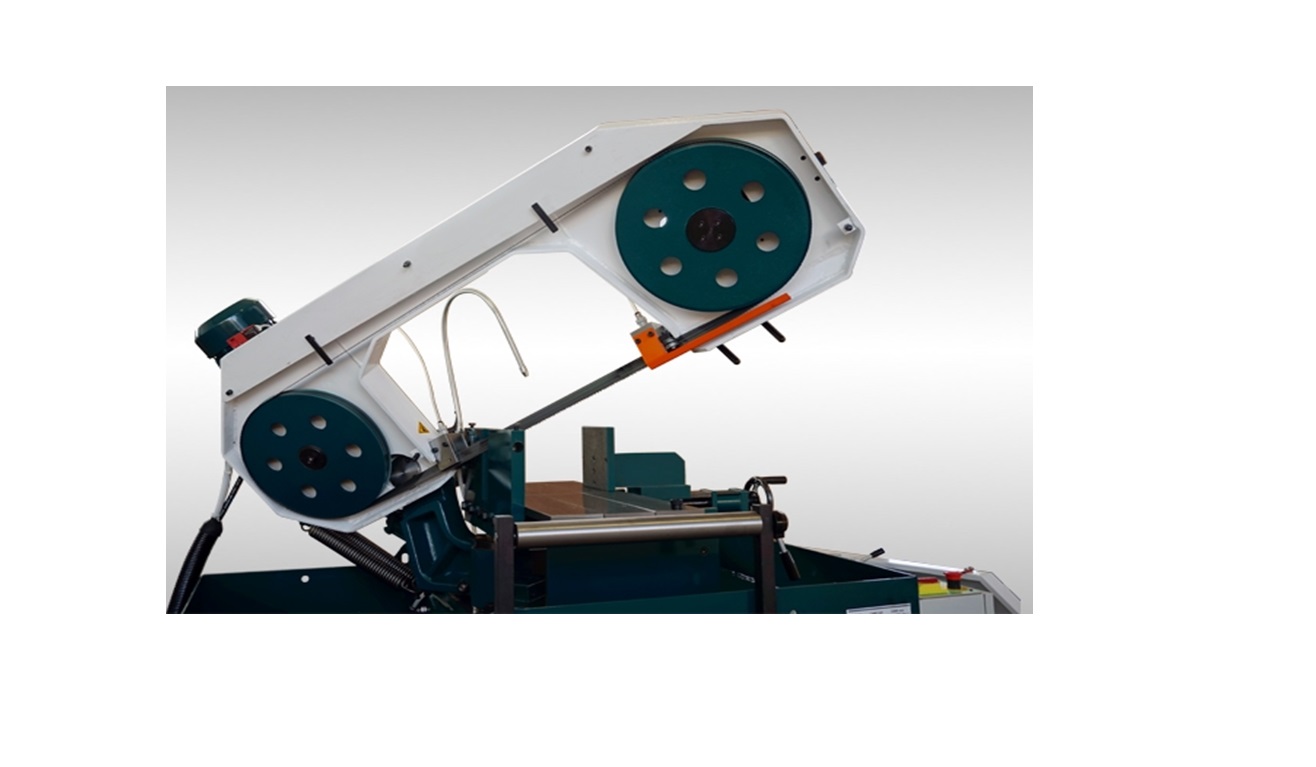

HYDRAULIC BAND SAW SEMI AUTOMATIC 450 BSA


CARIF

Carif is a mechanical company in the band saws market since 1948. Today it is a modern and flexible reality, which exports its products all over the world.



MACHINE DESCRIPTION :

Extremely robust Semi-Automatic Band Saw designed to cut medium/big dimension equipped with 2 speed motor  2.4Kw. Ø330 mm;  450x240h mm. It is used to cut many kinds of metal materials like carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless acid resistant steel.



WORKING PRINCIPLES:

Band Saw is a precision cutting tool. The working principle of a band saw machine cuts material to desired shape. Cuts are made by a blade that has long sharp teeth continuously rolling in loop through material.

Quick info

SKU: 7049737141 Categories: , ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC BAND SAW SEMI AUTOMATIC
Machine No.450-BSA
Brand Name CARIF

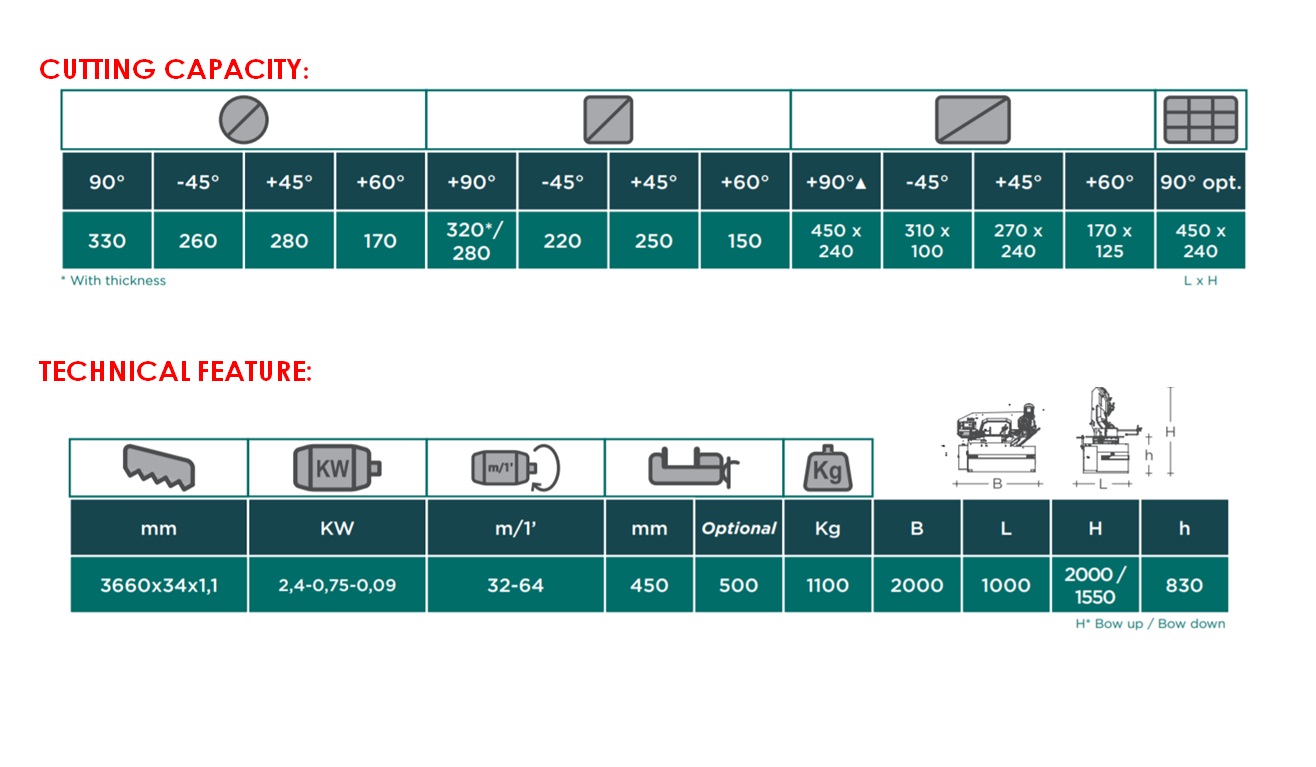

CUTTING CAPACITY
90°330 mm
-45°260 mm
45°280 mm
60°170 mm
+90° 320*/280 mm
-45°220 mm
+45°250 mm
+60°150 mm
+90°▲450 x 240 mm
-45°310 x 100 mm
+45°270 x 240 mm
+60°170 x 125 mm
+90° (OPTIONAL)450 x 240 mm
3660 x 34 x 1.1 mm
2.4-0.75-0.09 KW
32-64 m/1’
450 mm
: OPTIONAL500 mm
B
L
H*(Bow up and Bow down)
2000 mm
1000 mm
2000/ 1550 mm
STANDARD FEATURES:
  1. Robust base structure in steel powder painted with bright and smooth finishing.
  2. Robust head structure made in one unique piece of structural steel.
  3. Patented Hydraulic system for a fine regulation of bow feed and cutting pressure.
  4. Blade motor 1, 4/2, 4 Kw; 400V; 2 Speed regulation 32-64 m/min.
  5. Miter cutting -45°/+60°; bow rotation through conical bearings independent from the plans for piece support.
  6. Front display for rapid setting of frame position and cutting speed regulation.
  7. Wide Plans for piece support for a comfortable and practical cutting area.
  8. Complete coolant equipment of 50lt. tank with electro-pump 3ph. 0,1Kw inside the basement.
  9. Measuring device L-500 mm with height regulation.
  10. Sensor for monitoring blade rotation.
  11. Eccentric roller for short piece cutting.
  • Large chips container for easy cleaning.
  • Bimetal blade M42 mm 3660x34x1, 1 cardboard box + pallet, service wrenches, instruction manual and spare parts list.
