  /    /  ENGINEERING MACHINES, HYDRAULIC PRESS  /  HYDRAULIC PRESS HD/80 Ton

HYDRAULIC PRESS HD/80 Ton


HIDROLIKSAN

Workshop Type Hydraulic Presses HD80 Ton Motor Operated

Hidroliksan continues to manufacture hydraulic presses and is is proud to able to respond the needs of the following sectors which are automotive, agriculture, metal forming, recycling and many others they  need to compression  in their  production.

MACHINE DESCRIPTION

Workshop-Type Presses are standard-type presses, as well as measured according to customer purpose. Workshop-type presses can be manufactured up to 1000 tons in automatic and manual as optional. All Hidroliksan Workshop Presses comply with the strictest regulatory requirements, meeting the European CE standards. Each Hidroliksan Workshop Press includes a comprehensive manual, supporting our end users in use and maintenance of our products. Hidroliksan Workshop Type Presses are used mostly in repair and maintenance workshops for the small bending, punching, straightening, detruding / extracting (removing).

Quick info

SKU: 5678006548 Categories: ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC PRESS
Model No. HD/80 Ton
Brand NameHIDROLIKSAN
Pressing Power800 kN
Operating Pressure400 bar
Stroke (Course)400 mm
ELECTRIC MOTOR
Motor2.2kW
Power3Hp
Motor revolution1500 Rev/min
Voltage380 V
Frequency50-60Hz
HYDRAULIC SYSTEM
Pump vol. rate6.5 Lit/min
Tank volume31 lt.
Oil to be filled27 lt
OPERATING CONDITIONS
Landing speed5.4 mm/s
Return speed8.3 mm/s

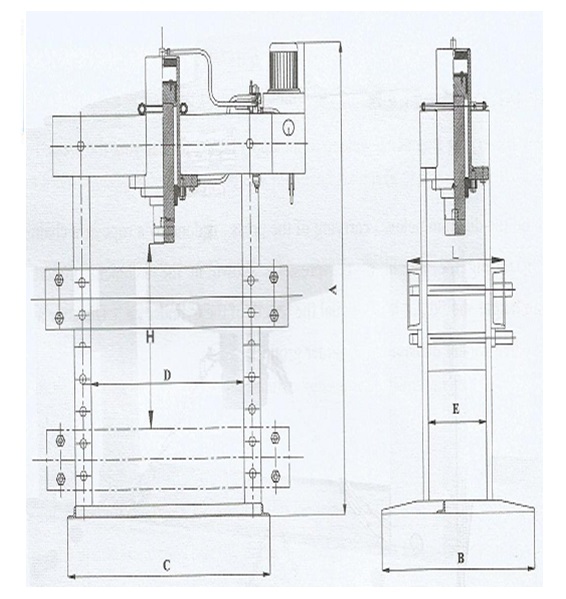

CRITICAL DIMENSIONS
Inner diameter of the cylinder160 mm
Ram diameter95 mm
A. Height2450 mm
B. Side width btn st900 mm
C. Front width btn st1350mm
D. Inner width920 mm
E. Side width300 mm
H. Max Work capacity900 mm
Weight725 kg
