Omega Press Brake 40ton

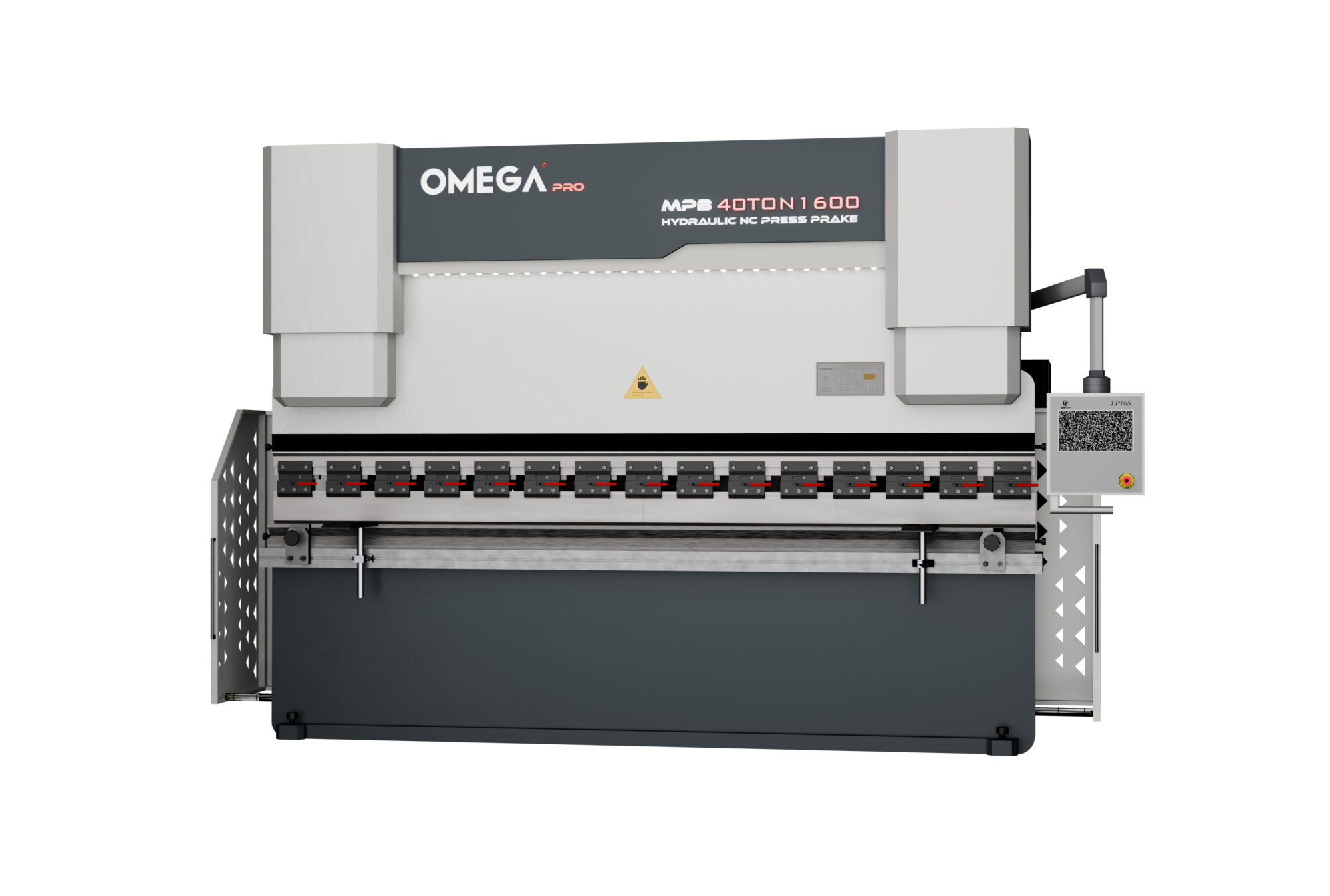

Hydraulic Press Brake WC67Y 40Ton x 1600


OMEGA

Omega main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

Quick info

SKU: 8468255516 Categories: , ,
Get A QuoteSpecs PDF Download

Description

HYDRAULIC PRESS BRAKE MACHINE
Model No : WC67Y – 40Ton x 1600
Brand Name : “OMEGA”
With E22
Nominal Force: 400 KN
Working bench length: 1600 mm
Distance between the columns : 1230 mm
Throat Depth : 250 mm
Cylinder Stroke : 70 mm
Max. opening height between the countertop & the slider : 270 mm
Adjust the volume between slide strips : 70 mm
Slider Travel Carrying Idler : 120 Adjustable
Work : 15 mm/s
Return Trip : 150 mm/s
Gear Pump Model : ITL0003-IBB23-3JA5
Rate of Flow : 10 L/min
Pressure : 35 Mpa
Main Motor Model : ITL0003-IBB23-3JA5
Power : 4 Kw
Speed : 1450 r/min
Max. Operating pressure of the Hydraulic System: 31.5 Mpa
Overall Dimensions : 1900 x 1300 x 1900 mm
Weight : 1200 kg.
  • Schneider electrical elements with CE standard electrical components and thermal overload protection, conventional main power switch, electrical box with lock, E21 NC controller with inverter.
  • NOK JAPAN SEAL RING, CHIP - SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING IRON PALLET IN FOUR CORNERS.
  • Back gauge with motor redactor movement with Ball screw Technology for higher precision.
  • Cantilever arm with stainless steel.
  • Foot pedal control
  • Supporting arm with measure
  • Bite type tube fittings
  • Automatically dropping system

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Additional information

Weight 2 kg
Dimensions 3 × 4 × 5 cm

Press Brake Tonnage Calculator (metric)

You can calculate press brake tonnage by input below required data.
If you are a manufacturer or a sheet metal processing factory that needs to buy new Press Brake Machine, you can refer to the Press Brake Tonnage Calculator for calculating the required bending tonnage. By using the Press Brake Tonnage Calculator, you only need to enter the Sheet Metal Thickness, Bending Length, and our recommended vee opening width then the calculator will show the required bending force.
