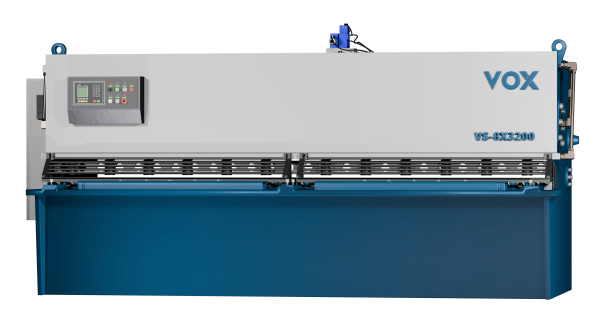

HYDRAULIC SHEARING MACHINE QC12Y–8 x 3200 mm


VOX

Vox’s main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Vox offers quality Hydraulic Press Brakes and Hydraulic Shearing machine that provides simplified and easily accessible controls for optimum operator efficiency and output.

Quick info

GET A QUOTESpecs pdf download

Description

HYDRAULIC SHEARING MACHINE
Model NoQC12Y – 8 x 3200
Brand Name“VOX”
(Joint Venture with France Co)
with E21S NC Controller
Shearing thickness8 mm
Shearing width3200 mm
Distance between uprights3450 mm
Shearing Angle1°30’
Max length of back gauge600 mm
Stroke20 min-¹
Blade Length

3300 mm
Height of the Work Table

800 mm
Main Motor (4-B5)Power15 kw
Speed1465 r/min
Motor for back gauge(6-B3 DoublePower 1 kw
Speed910 r/min
Two-stage idler gear pumpFlow40 mL/r
Pressure32 MPa
Dimension (L x W x H)) 3900 x 1900 x 1800 mm
Fuel Tank Capacity350 L
Tool machine temperature5-40 ˚C
Tool Machine degree of humidity30-80 %
Weight7500 Kg



  • Schneider electrical elements with CE standard electrical components and thermal overload protection, big chain lockable. Main power switch, E21 NC Controller with inverter.
  • Rexroth main valve, Siemens motor and Sunny gear pump.
  • NOK SEAL RING, CHIP-SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING, IRON PALLET IN FOUR CORNER.
  • Illuminated cutting line.
  • Sides and rear guards-covers, side guard fence with limited switch
  • Cantiler arm with stainless steel.
  • Foot pedal control
  • Manual adjustable the gap of the blades
  • Sheet support with ball transfer roller table
  • Bite type tube fittings
  • Automatically dropping system.
  • 350 Liter Fuel Tank Capacity
