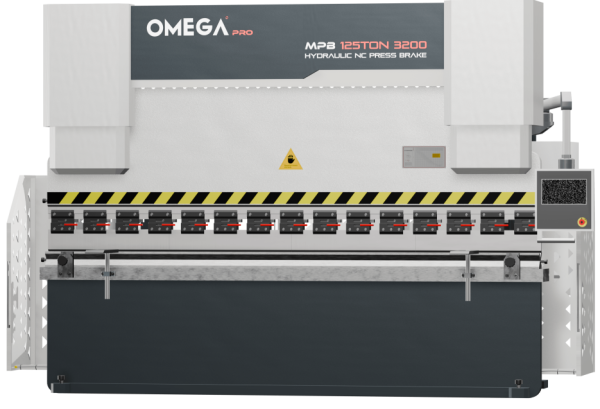

HYDRAULIC PRESS BRAKE WC67Y – 125Ton x 3200


OMEGA

Omega’s main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

Quick info

SKU: 3490229021 Categories: , ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC PRESS BRAKE MACHINE
Model NoWC67Y - 125Ton x 3200
Brand Name“OMEGA”
(Joint Venture with Italian Co)
With E21 – NC Control
Nominal Pressure1250 KN
Working Table Length3200 mm
Distance between housing2600 mm
Throat Depth320 mm
Ram Travel120 mm
Max. open height between

 working table surface & ram
390 mm
Adjustment of ram travel80 mm
Gear PumpTypeCP0-16-P-10R
Flow16 L/min
Pressure31.5  Mpa
Main MotorTypeY132M-4
Power7.5 kw
Speed1455 r/min
Overall Dimension ( L x W x H)3700 x  1900 x 2280 mm
Weight7000 kg.
  • Schneider electrical elements with CE standard electrical components and thermal overload protection, conventional main power switch, electrical box with lock, E21 NC controller with inverter
  • Rexroth main valve, motor made in Nantong and Sunny gear pump.
  • NOK JAPAN SEAL RING, CHIP - SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING IRON PALLET IN FOUR CORNERS
  • Back gauge with motor redactor movement with Ball screw Technology for higher precision.
  • Rear and sides covers with limit switch.
  • Cantilever arm with stainless steel.
  • English stickers and warning label
  • Foot pedal control
  • Manual adjustable the gap of the blades
  • Supporting arm with measure
  • Bite type tube fittings
  • Automatically dropping system
