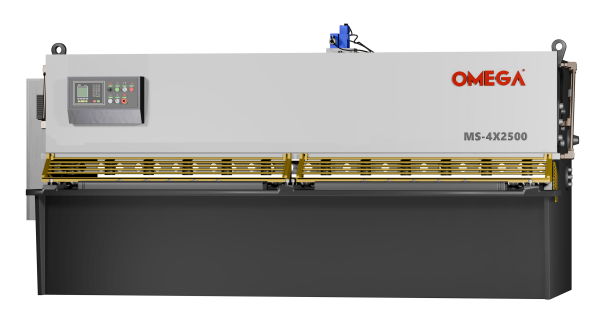

HYDRAULIC SWING PLATE SHEARING MACHINE QC12Y-4mmx2500mm


OMEGA

Omega’s main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

Quick info

GET A QUOTESpecs pdf download

Description

HYDRAULIC SHEARING MACHINE
Model NoQC12Y - 4mm x 2500mm
Brand Name“OMEGA”
(Joint Venture with Italian Co)
With E21S
Shearing thickness4 mm
Shearing width2500 mm
Strength of Sheets450 N/mm²
Shearing Angle1°30’
Back gauge Range500 mm
Shearing Angle1°30’
Back gauge Range500 mm
Number of Stroke20 min-¹
Length of Blade2600 mm
Height of the Work Table650 mm
Main motorTypeYE2-112M-4
Power4 Kw
Speed1455 r/min
Gear PumpTypeCP0-10-P-10R
Nominal Displacement10 ML/r
Pressure25 MPa
Overall dimension ( LxWxH )3100 x 1700 x 1650 mm
Net Weight 3300 kg.
  • Schneider electrical elements with CE standard electrical components and thermal overload protection, big chain lockable. Main power switch, E21 NC Controller with inverter.
  • Rexroth main valve, Siemens motor and Sunny gear pump.
  • NOK SEAL RING, CHIP-SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING, IRON PALLET IN FOUR CORNER.
  • Illuminated cutting line.
  • Sides and rear guards-covers, side guard fence with limited switch
  • Cantiler arm with stainless steel.
  • English sticker and warning label.
  • Foot pedal control
  • Manual adjustable the gap of the blades
  • Sheet support with ball transfer roller table
  • Bite type tube fittings
  • Automatically dropping system.
  • Oil tanks not less 300L
