POWER PRESS JD23- 40 TON


ROOY

MACHINE DESCRIPTION

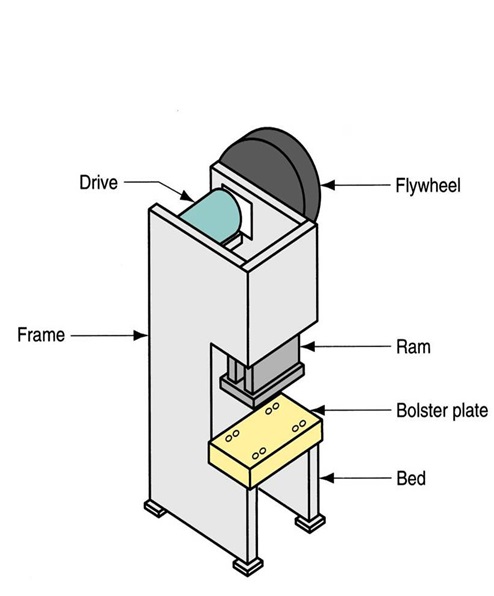

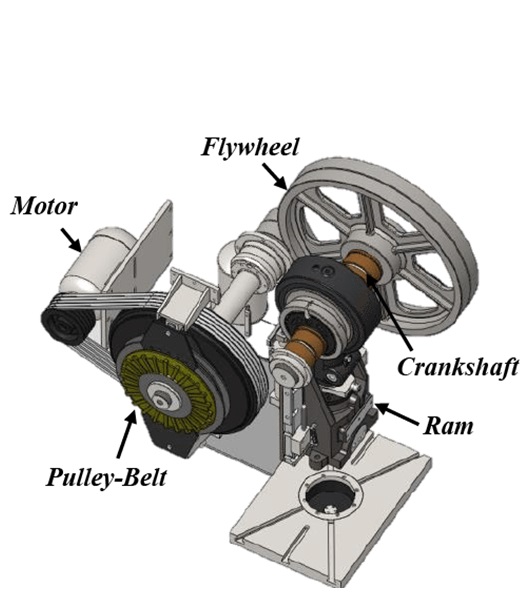

Power Press Machine is used for cutting, shaping, blending and pressing any metal sheet into required shape. This is a multi-purpose machine used to shape the metal sheet to be used for getting the desired shape of the parts to be used in electric and electronic appliances, automobile industry and metal manufacturing. The power press machine has revolutionized this process by adding force and accuracy in the operation of pressing.

Quick info

SKU: 3766302283 Categories: ,
GET A QUOTESpecs pdf download

Description

POWER PRESS MACHINE
ModelJD23-40
Brand Name“ROOY”
Nominal Force 400KN
Stroke under Nominal Force 4 mm
Slide Stroke10-80 mm
Number of Stroke50 Times /min
Max. Die set Height230 mm
Die Height Adjustment60 mm
Distance from slide block center to the frame220 mm
Worktable Size (FB x LR)420 x 630 mm
Worktable hole diameterɸ155 mm
Thickness of bolster70 mm
Slide Block Size (FB x LR)210 x 250 mm
Size of the handle hole (Dia. x Depth)ɸ50 x 70mm
Distance between columns 260mm
Motor Power 4 kw (Y112M-4)
Overall dimension1600 x 1100 x 2250 mm
Weight2960 kg
