Powermax 45


HYPERTHERM

Hypertherm is working  tirelessly on innovations to help meet market needs with a history of delivering industry-leading cutting technology and look at the future with possibility. With engineering team that works together to optimize the performance of your system across the Hypertherm product line. Hypertherm’s plasma cutting solutions range from powerful, portable Powermax® systems for cutting and gouging to industry-leading HyPerformance® mechanized cutting systems, as well as LongLife® heavy-duty production tools, and the diesel-driven FreedomTM system.



The Powermax45® XP delivers increased cut capacity – up to 16 mm (5/8″) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with enhanced gouging and marking capabilities.

Quick info

SKU: 6094647777 Categories: ,
Get A QuoteSpecs PDF Download

Description

Input Voltages 400 V, 3-PH, 50-60 Hz
Input Current400 V, 3-PH, 10 A
Output Current10 - 45 A
Rated Output Voltage145 VDC
Duty Cycle50% @ 45 A, 380/400 V, 3-PH
60% @ 41 A, 380/400 V, 3-PH
100% @ 32 A, 380/400 V, 3-PH
Dimensions with Handles442 mm D; 173 mm W; 357 mm H
Weight with Torch15 kg
Gas SupplyCuttingAir, N2, F5
GougingAir, N2, F5
MarkingAir or Argon
Recommended Flow Rate and PressureCutting188 L/min @5.9 bar
Gouging165 L/min @ 4.1bar
Torch Lead LengthsHandheld6.1, 15.2, 22.8 m
Mechanized4.5, 7.5, 10.7, 15.2, 22.8 m
Motor Generator12.5kVA or 10KW

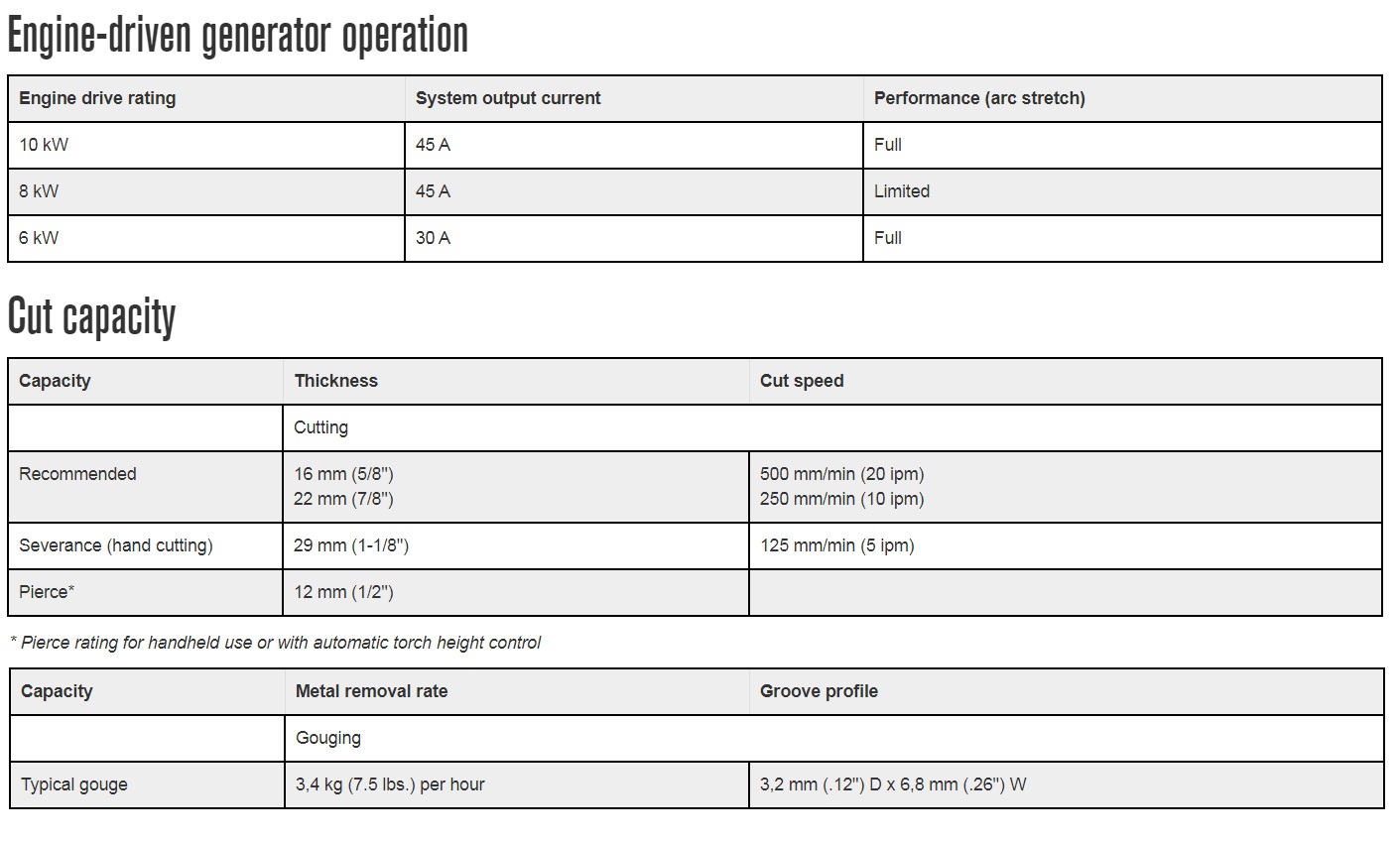

Cutting Capacity :
CapacityCutting ThicknessCutting Speed
Recommended16mmAt 500 mm/min
22mmAt 250 mm/min
Severance29mmAt 125mm/min
Pierce12mm
