CNC TUBE CUTTING MACHINE – TUBE TAILOR II


STEELTAILOR

SteelTailor is engaged in Cutting and Welding business for nearly 17 years. Focuses on providing the world with innovative and affordable portable CNC solutions. Our product line includes a verity of portable CNC cutting machines.

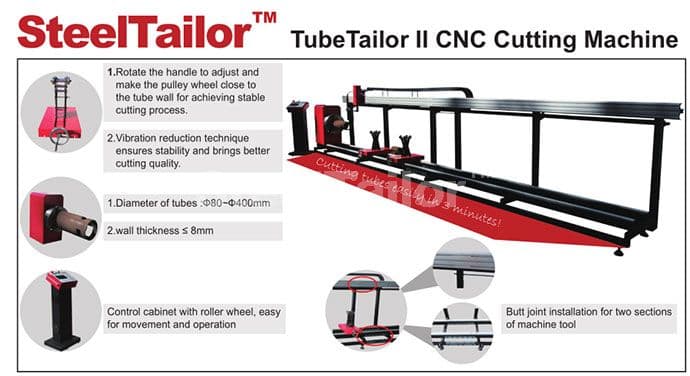

SteelTailor TubeTailorII CNC tube cutting machine cutting simple and efficient!



High Quality, High Performance, Superb Techniques Beyond All!



Quick info

SKU: 7528265072-1 Categories: ,
GET A QUOTESpecs pdf download

Description

PowerAC220V / 50/60Hz / 1.5 kw
Tube Diameter80-400 mm
Thickness≤8mm
X axis Effective Cutting Length6000 mm
Z Axis Effective Lifting Distance 110 mm
THCAutomatic Arc Voltage THC
Max Cutting Speed2000 mm/min
Max Running Speed3000 mm/min
X Positioning Precision±0.2 mm/10 mm
Y Repeatability±0.2 mm/10 mm
Dimension4000 x 900 x 1500 mm
