POWERMAX 85


HYPERTHERM

Hypertherm is working  tirelessly on innovations to help meet market needs with a history of delivering industry-leading cutting technology and look at the future with possibility. With engineering team that works together to optimize the performance of your system across the Hypertherm product line. Hypertherm’s plasma cutting solutions range from powerful, portable Powermax® systems for cutting and gouging to industry-leading HyPerformance® mechanized cutting systems, as well as LongLife® heavy-duty production tools, and the diesel-driven Freedom™ system.

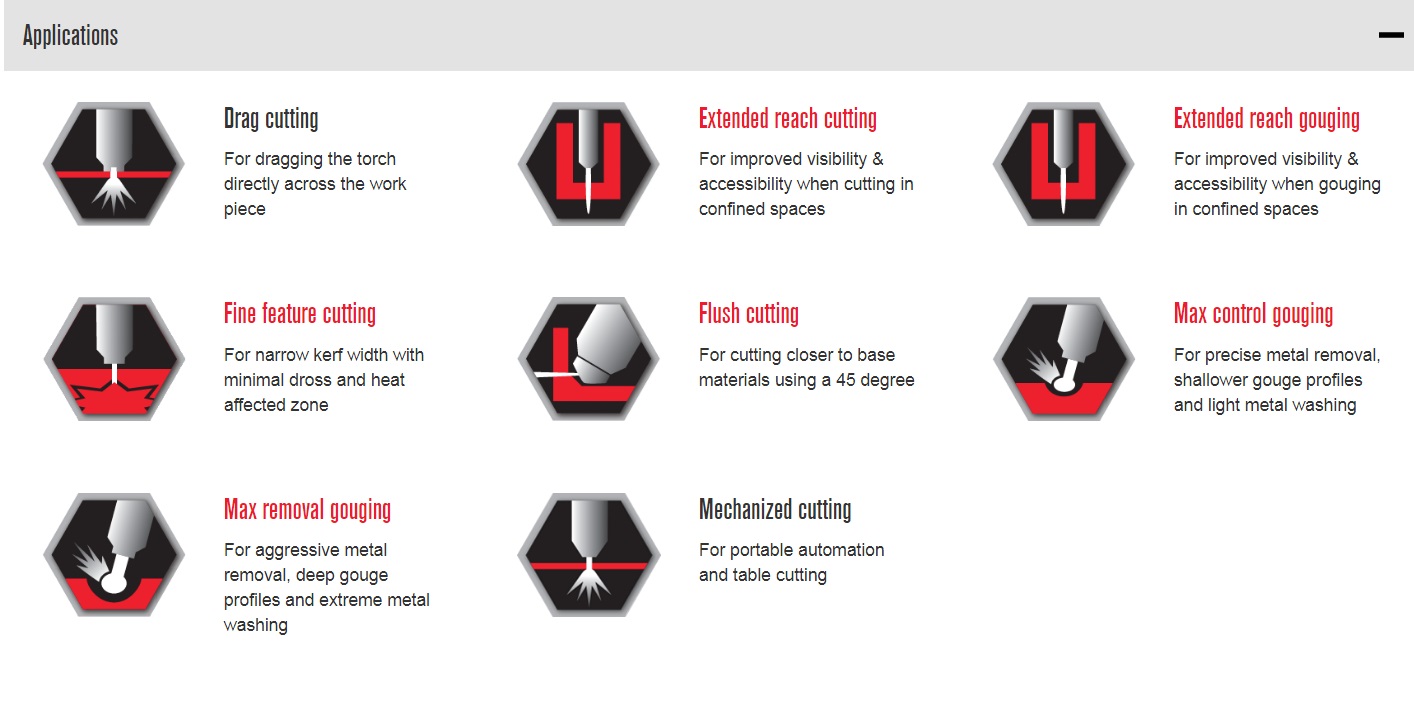

The premier system for cutting 25 mm (1″), the Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.

Quick info

SKU: 6094647777-1-1 Categories: ,
GET A QUOTESpecs pdf download

Description

Input Voltages 400 V, 3-PH, 50/60 Hz
Input Current380/400 V, 3-PH, 20.5/19.5 A
Output Current25 - 85 A
Rated Output Voltage143 VDC
Duty Cycle60% @ 85 A, 380/400 V, 3-PH
100% @ 66 A, 380/400 V, 3-PH
Dimensions with Handles500 mm D; 234 mm W; 455 mm H
Weight with Torch28 kg
Gas SupplyCuttingAir, N2, F5
GougingAir, N2, F5
Recommended Flow Rate and PressureCutting189 L/min @ 5.9 bar
Gouging212 L/min @ 4.8 bar
Torch Lead LengthsHandheld7.6, 15.2, 22.8 m
Mechanized4.5, 7.6, 10.7, 15.2, 22.8 m

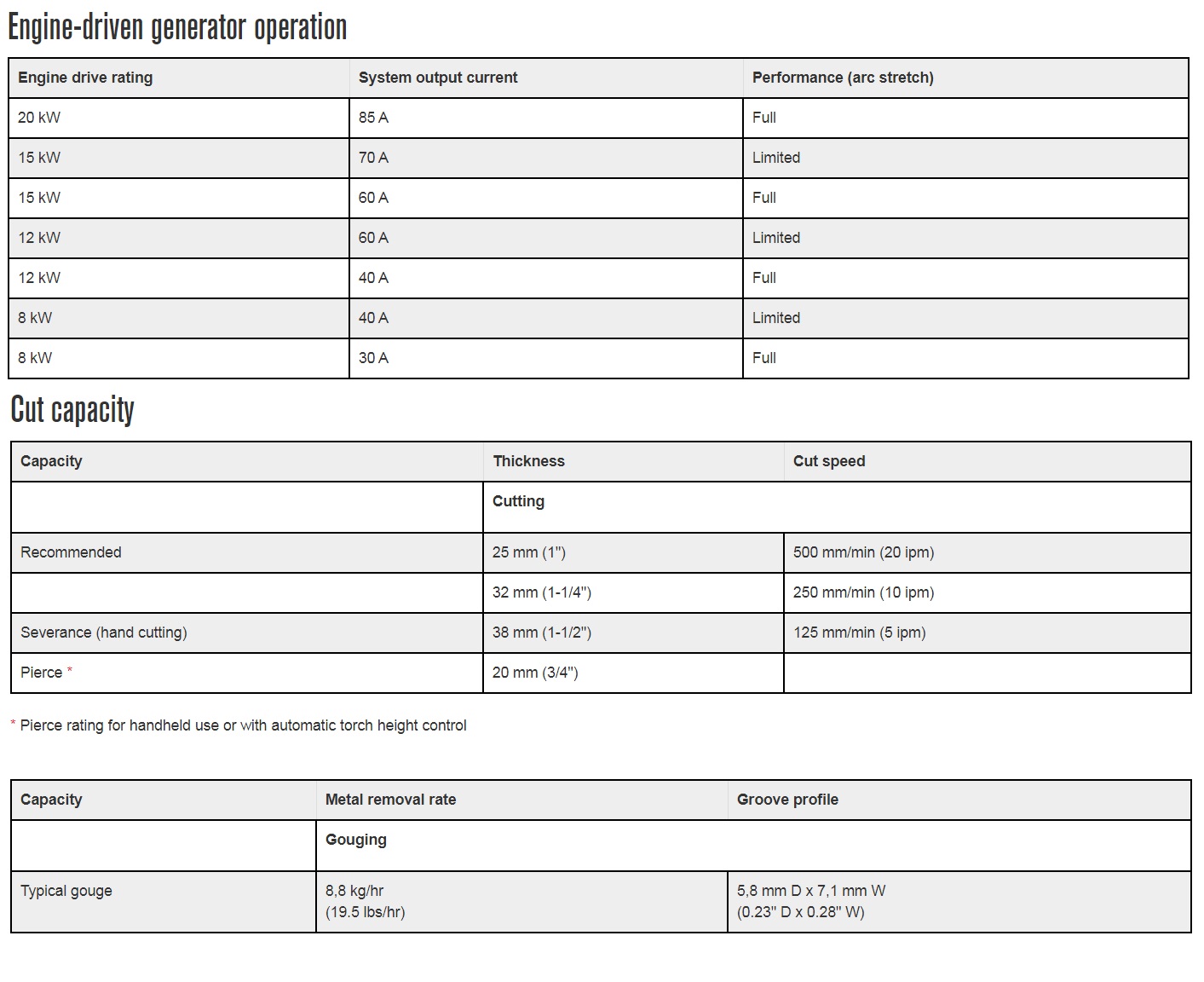

Motor Generator26.8 kVA or 20KW

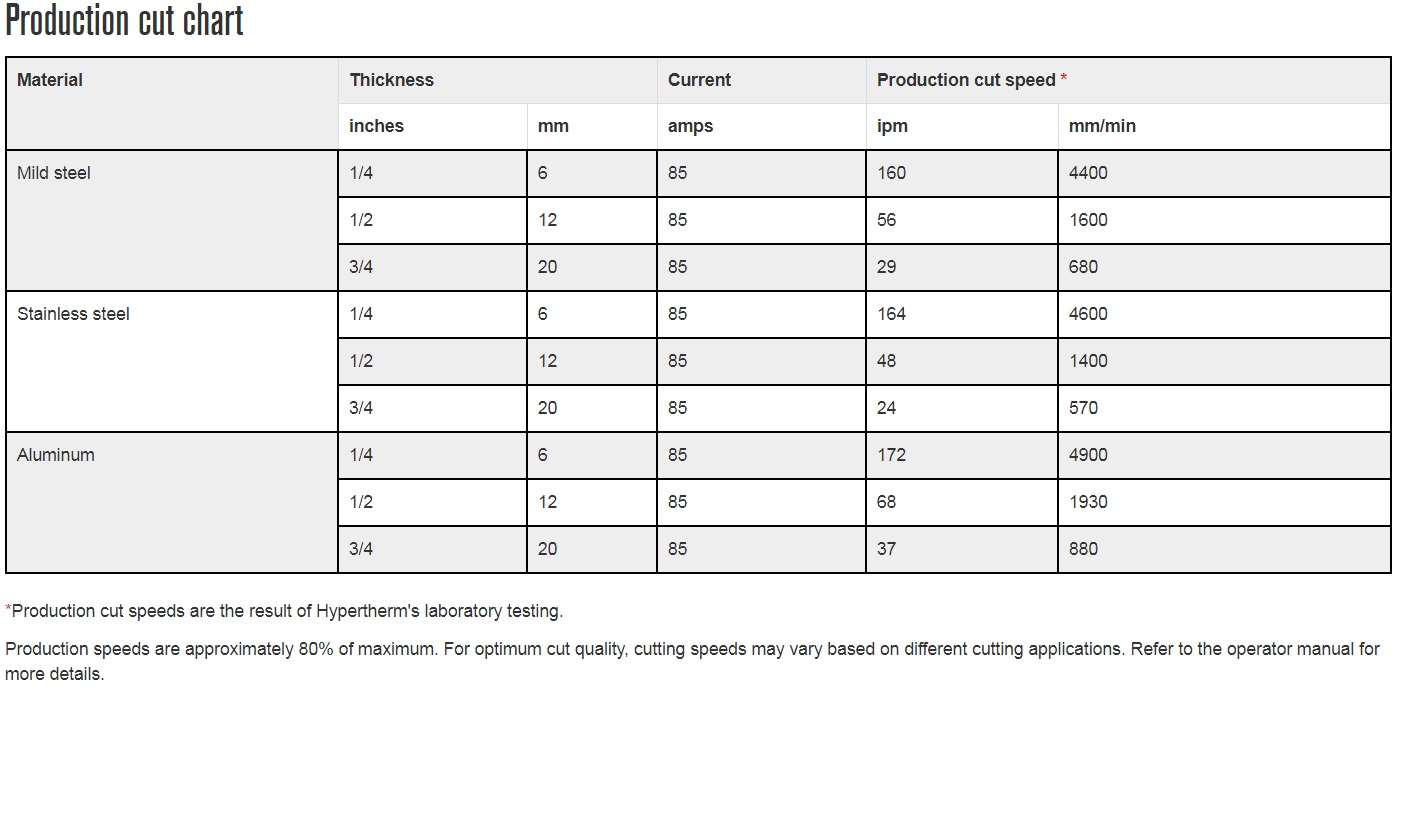

Cutting Capacity :
CapacityCutting ThicknessCutting speed
Recommended25mmAt 500 mm/min
32mmAt 250 mm/min
Severance 38mmAt 125 mm/min
Pierce 20mm
