TYPE SMART III PORTABLE CNC CUTTING MACHINES


STEELTAILOR

SteelTailor is engaged in Cutting and Welding business for nearly 17 years. Focuses on providing the world with innovative and affordable portable CNC solutions. Our product line includes a verity of portable CNC cutting machines.

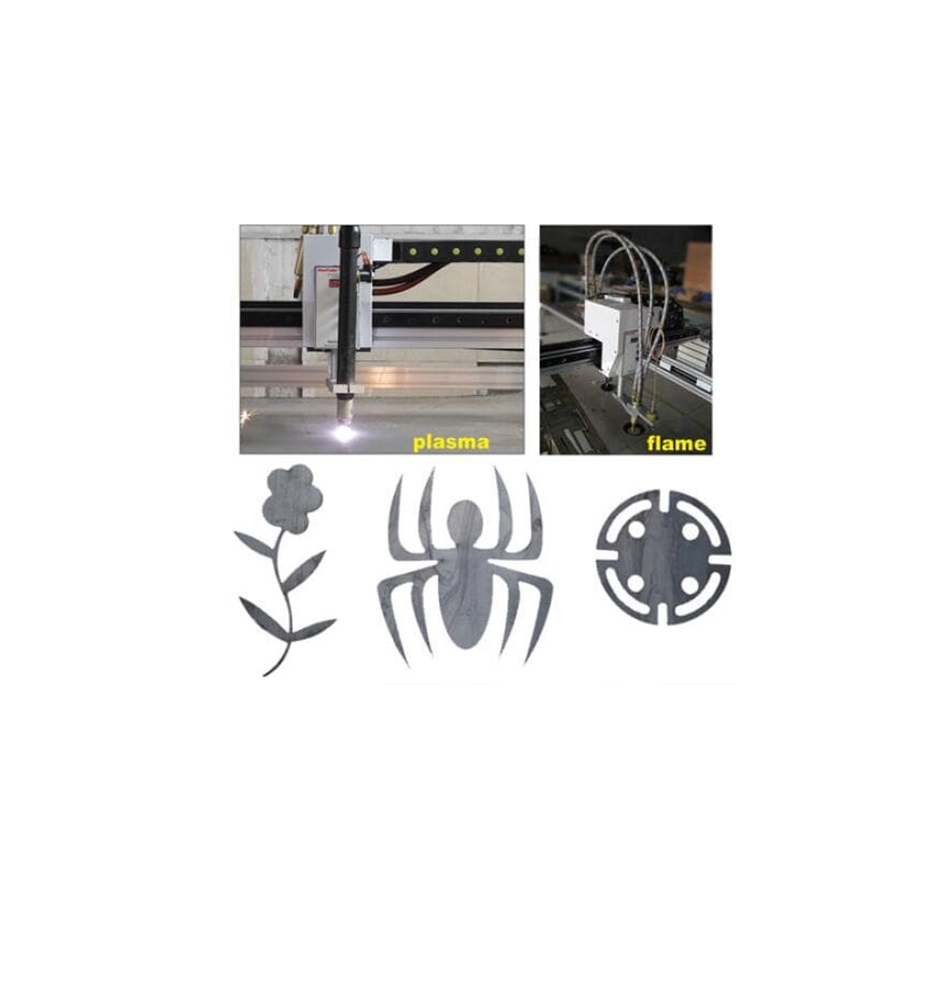

Plasma cutting or flame cutting, Smart III portable table CNC cutting machine can perform beyond your expectations!

SMART III combines the portability feature of SMART I and the stability of SMART II. The use of SteelTailor standard components has reduced the installation time. SMART III has 0.2mm repeatability; it guarantees the cutting size consistency. SMART III can fulfill the global industries requirements of metal processing workshops, smith craft, metal framework manufacturers, and DIY customers. The final cut product just needs simply cleaning of slag. No need for any rework.

  1. F4 Concept:
      Friendly in Transportation; Friendly in Installation;
      Friendly in Operation; Friendly in Maintenance.
    2. 1500mm*3000mm cutting area and table structure gives more precision;
    3. Dual drive system, that can handle more weight;
    4. Table structural design, combines stability and portability;
    5. High-precision dual shaft linear guide;
    Graphical controller, compatible with CAM software’s.

High Quality, High Performance, Superb Techniques Beyond All!

Quick info

SKU: 1040764372 Categories: ,
GET A QUOTESpecs pdf download

Description

Input voltage110/220 V
Power frequency60/50 Hz
Input power200 W
ControllerLCD 7” color screen controller (remote control is optional)
Effective cutting area1. 1500 ( crosswise) x 3000 (lengthways) mm
Max cutting speed (precision guarantee)4000 mm/ min
Max running speed5000 mm/ min
Machine positional accuracy0.2 mm
Repeated positioning accuracy0.2 mm
Cutting thickness rangeFlame cutting: 5-150 mm

Plasma cutting: POWERMAX 85 0.3-12mm
Boundary dimension (W X L)2200x3400 mm
Weight160kg
Cutting modeFlame/ Plasma
Z axis range80 mm
Cutting softwareOptional: one set of IBE/ FastCAM standard edition/MTC standard edition.
Automatic heightStandard configuration plasma THC (match with plasma/flame THC)
Mode of longitudinal driverDual driver
