POWERMAX 105 SYNC


HYPERTHERM

Hypertherm is working  tirelessly on innovations to help meet market needs with a history of delivering industry-leading cutting technology and look at the future with possibility. With engineering team that works together to optimize the performance of your system across the Hypertherm product line. Hypertherm’s plasma cutting solutions range from powerful, portable Powermax® systems for cutting and gouging to industry-leading HyPerformance® mechanized cutting systems, as well as LongLife® heavy-duty production tools, and the diesel-driven Freedom™ system.

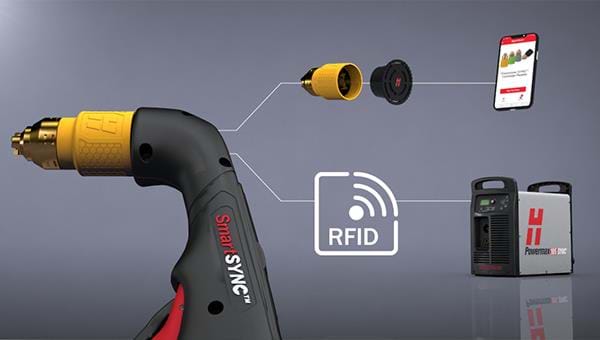

The Powermax105 SYNC™ is a next-generation, professional-grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 32 mm (1-1/4″). Features automated system process set-up via advanced RFID-enabled SmartSYNC™ torches, and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax105 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance, and streamlined consumable inventory management.





Quick info

SKU: 6094647777-1-1-1-2 Categories: ,
GET A QUOTESpecs pdf download

Description

POWERMAX 105 SYNC
Brand Name: “HYPERTHERM”
Input voltages: 200–600 V, 3-PH, 50/60 Hz
Kilowatt output: 16.8 kW
: 200/208/240/480/600 V,
Input current: 3-PH 58/56/49/25/22 A @ 16.8 kW
Output current: 30–105 A
Rated output voltage: 160 VDC
: 70% @ 105 A, 240 V, 3-PH
: 80% @ 105 A, 480–600 V, 3-PH
Duty cycle @ 104° F: 100% @ 94 A, 480–600 V, 3-PH
: 100% @ 88 A, 240 V, 3-PH
Open circuit voltage (OCV): 300 VDC
Dimensions with handles: 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H)
Weight w/7,6 m (25′) torch: 45.3 kg (95 lbs.)
Gas supply: Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure: 7.6–8.3 bar (110–120 psi)
Minimum inlet gas pressure: 5.5 bar (80 psi)
Recommended inlet gas flow rate: Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi)
: Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi)
Input power cable length: 3 m (10′)
Power supply type: Inverter–IGBT
Engine drive requirement: 30 kW for full 105 A output
Brand New: USA
CUTTING CAPACITY
CapacityThicknessCut speed
32 mm (1-1/4″)500 mm/min (20 ipm)
Recommended38 mm (1-1/2″)250 mm/min (10 ipm)
Severance (hand cutting)50 mm (2″)125 mm/min (5 ipm)
Pierce*22 mm (7/8″)
*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.
MAXIMUN REMOVAL GOUGING:
CapacityMetal removal rateGouge profile
Typical gouge8,6 kg (19.1 lbs.) per hour6,6mm D x 6,0mm W (0.26″ D x 0.24″ W)
