POWERMAX 105


HYPERTHERM

Hypertherm is working  tirelessly on innovations to help meet market needs with a history of delivering industry-leading cutting technology and look at the future with possibility. With engineering team that works together to optimize the performance of your system across the Hypertherm product line. Hypertherm’s plasma cutting solutions range from powerful, portable Powermax® systems for cutting and gouging to industry-leading HyPerformance® mechanized cutting systems, as well as LongLife® heavy-duty production tools, and the diesel-driven Freedom™ system.

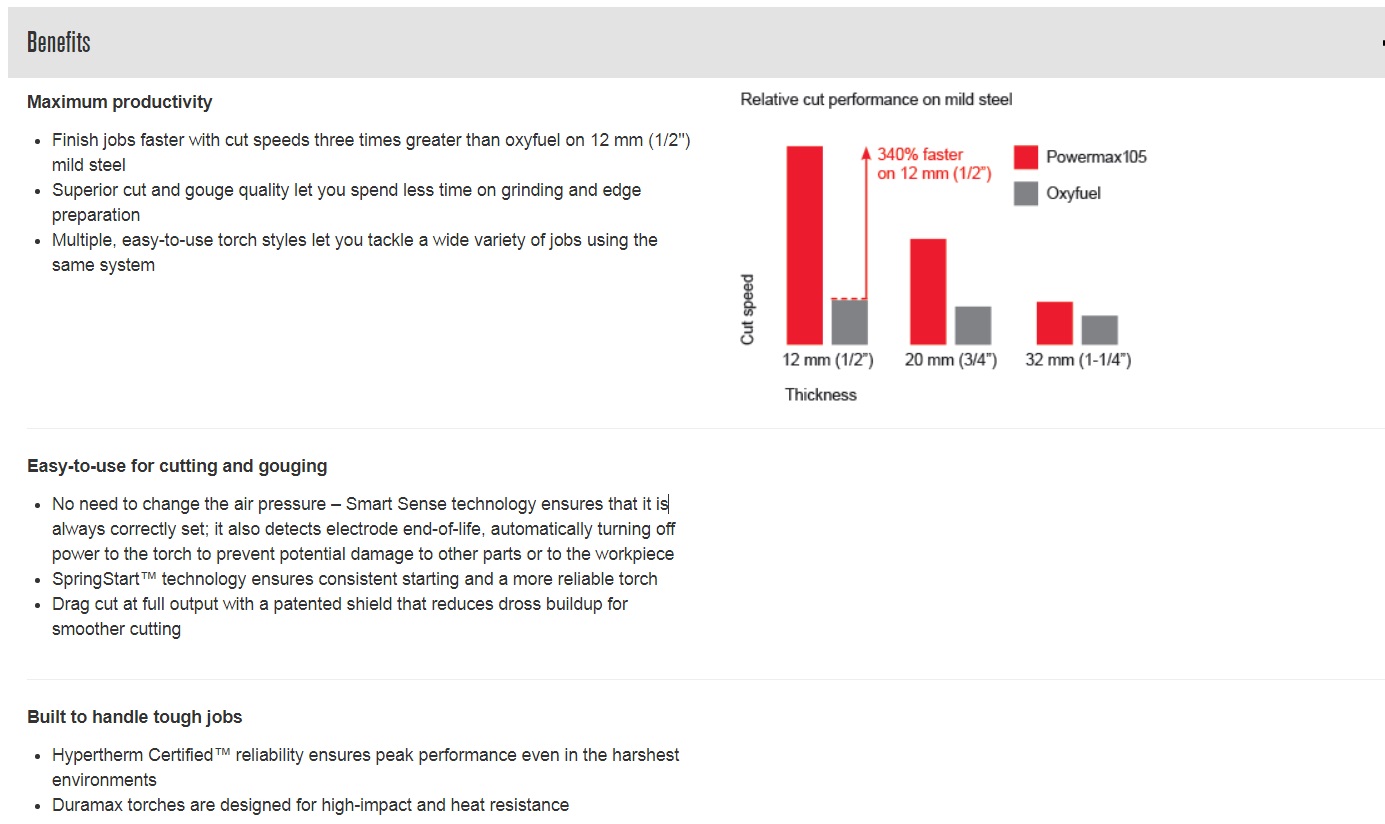

The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm (1-1/4″) thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.





Quick info

SKU: 6094647777-1-1-1 Categories: ,
GET A QUOTESpecs pdf download

Description

Input Voltages 230-400 V, 3-PH, 50/60 Hz
400 V, 3-PH, 50/60 Hz
Input Current230/400 V/, 3-PH, 50-60 Hz, 50/29 A
400 V, 3-PH, 50/60 Hz, 28 A
Output Current30 - 105 A
Rated Output Voltage160 VDC
Duty Cycle70% @ 105 A, 230 V, 3-PH
80% @ 105 A, 400 V, 3-PH
100% @ 94 A, 400 V, 3-PH
100% @ 88 A, 230 V, 3-PH
Dimensions with Handles592 mm D; 274 mm W; 508 mm H
Weight with Torch230-400 V: 45 kg / 400 V: 41 kg
Gas SupplyCuttingAir, N2, F5
GougingAir, N2, F5
Recommended Flow Rate and PressureCutting217 L/min @5.9 bar
Gouging227 L/min @4.8 bar
Torch Lead LengthsHandheld7.6, 15.2, 22.8 m
Mechanized4.5, 7.6, 10.7, 15.2, 22.8 m
Motor Generator40.2kVA or 30KW

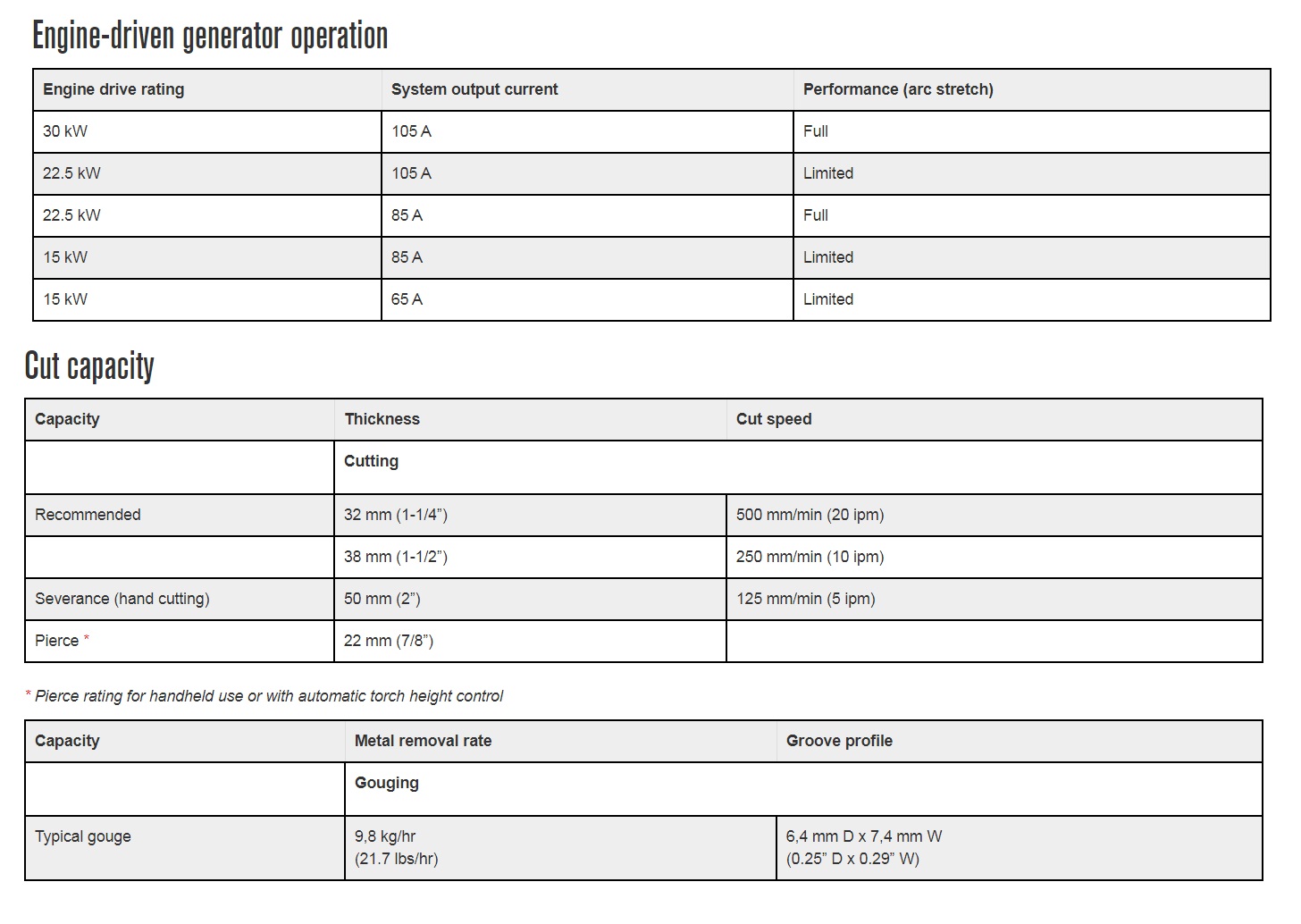

Cutting Capacity :
CapacityCutting ThicknessCutting speed
Recommended32 mm 500 mm/min
38 mm250 mm/min
Severance (hand cutting) 50 mm125 mm/min
Pierce 22 mm
