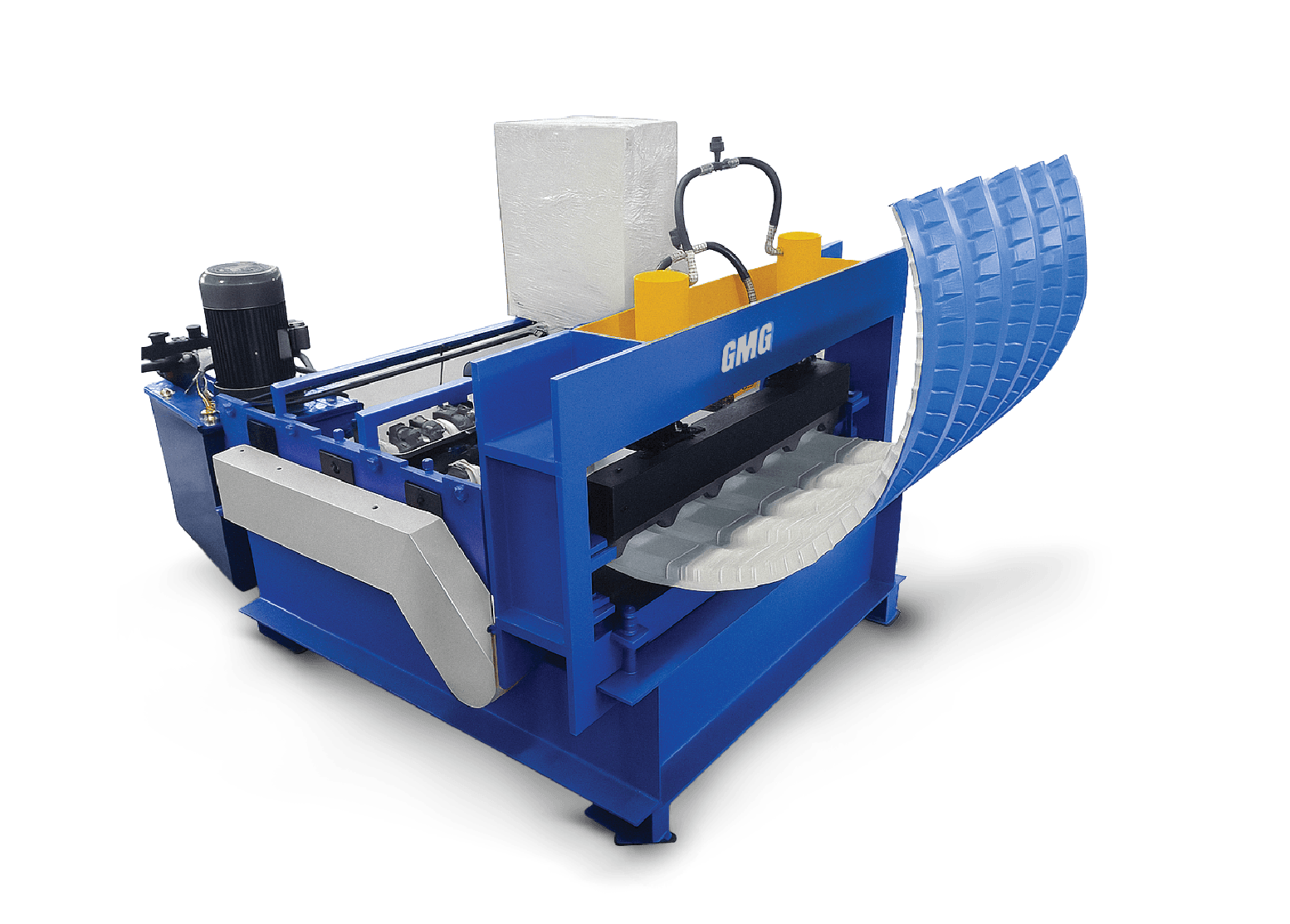

Punching Curving Machine YX35-250-1000


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines , CNC gantry milling machines , universal milling machines , CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, a product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



Main performance

  • Line speed: 0.5–5m/min (adjustable)
  • Suitable thickness for production: 0.4-0.8mm
  • Yield strength:≦235Mpa
  • Machine dimension: ≈ 2800mm×2050mm×1630mm
  • Total G.W    : approx 1200kg
  • Total power: approx 3.7kW
  • Voltage: 380V/50 Hz



Main technical parameter

  • Drive motor: approx 2.2kW
  • Hydraulic motor: approx 1.5kW
  • Hydraulic station oil: 46# Anti-wear hydraulic oil.
  • Material for press module: Cr12, with quenched and nitride surface
  • Minimal forming radius: 510mm
  • Operation language    : English and Chinese
