WALL ANGLE FORMING MACHINE

MACHINE DESCRIPTION:

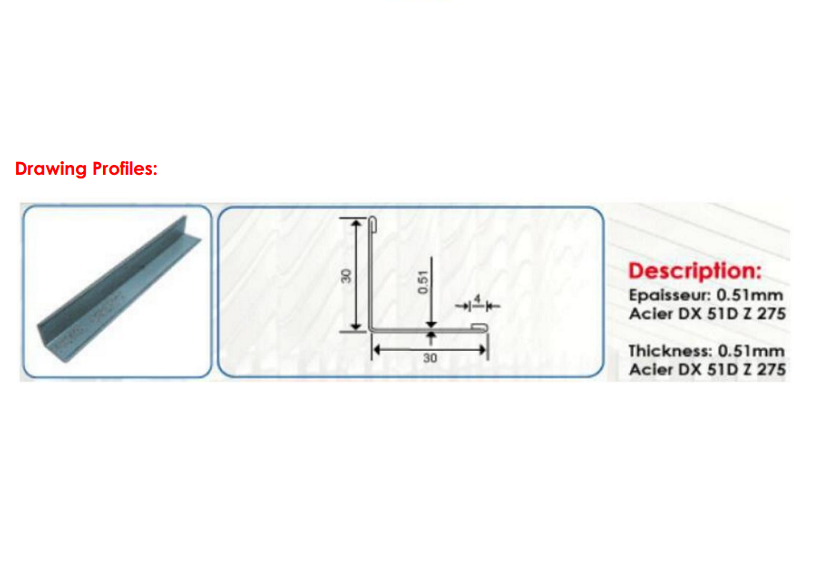

Wall angle roll forming machine could be used to make wall angel, angle protection board or L shape keel in various sizes with edge or without edge both. Wall angle light keel is one of the keel used in ceiling participation. The wall angle roll forming machine is developed to make those wall angle in batch for huge production.



Quick info

SKU: 3709688201 Categories: ,
GET A QUOTESpecs pdf download

Description

SERIESDETAILSPARAMETER
Material Raw materialSteel
Material thickness0.4-0.6 mm
Decoiler StructureManual passive type
Single head type
Loading capacity1.5 Ton
Coil inner diameter450-550 mm
Roll Forming MachineGuiding devicePlaced on the machine by seller
Rolling shaft material45# STEEL
Shaft diameter40 mm
Roller materialGB-Cr12
Rolling station11 stations
Work speed25 m/min
Machine structureVertical memorial arch frame
Machine basic frameSteel plate welded
BearingRoller bearing
Work power3 kw
Transmission By gear
Safety coveravailable
AppearanceGood appearance with no burrs in steel
body nor traces of rust or defects in
painting.
Control SystemFrequency brand Delta from Taiwan
PLC brandDelta from Taiwan
Screen typeTouch screen
Screen languageEnglish/Chinese/Arabic/French As requested
Cut commandYes
Profile length set-upYes
Batch quantity
program
Yes
Hydraulic SystemWork typeHydraulic
Driving methodBy Cylinder
Motor power3 kw
Cutter material GB-Cr12Good quality
material
Cutting length
tolerance
±0.5 mm/3m
Oil pumpSolenoid valves:1 setWith cooling
system
Cutting featureAutomatic cutting after
forming, no distorting or
wasting
Steady and
safety, no have
sounds by this
cutting way
Machine weight1.9 Tons
