U PROFILE ROLL FORMING MACHINE


GMG

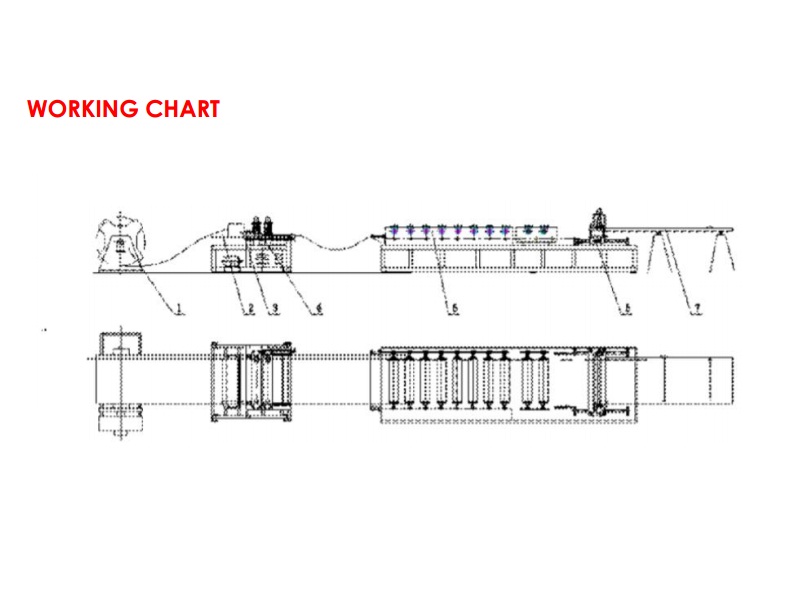

MACHINE COMPONENTS:

  • Motor Uncoiler
  • Leading and Leveling Material
  • Hydraulic Punching Device
  • Roll Forming Machine
  • Hydraulic Cutting Device
  • Electrical Control System

Quick info

SKU: 8266402869 Categories: ,
GET A QUOTESpecs pdf download

Description

Material Cold-rolled steel, hot-rolled steel, galvanized steel
Material thickness2.5-3.0mm

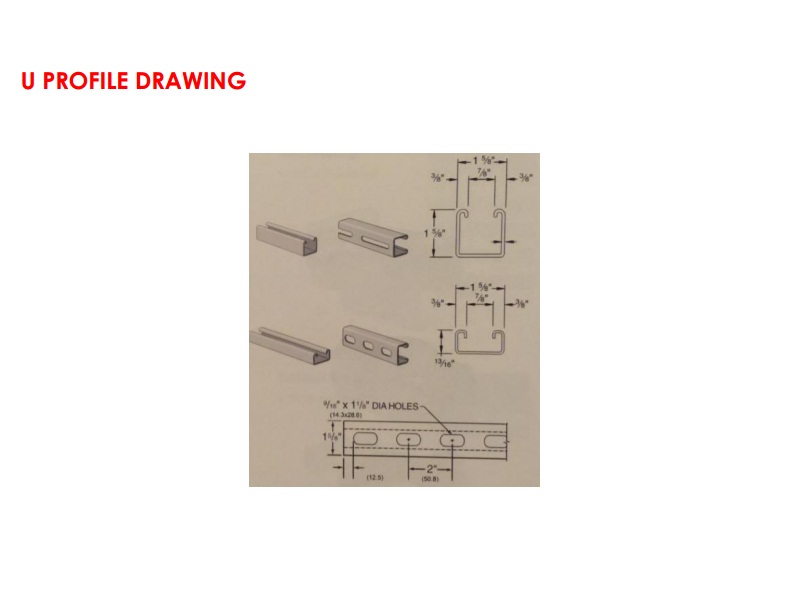

C Profile size41x41, 41x21mm
Products angle tolerance≤±1°
Products straightness
tolerance
<1-1.5mm(products length 3000mm)
Roller number14-16 stations
Working speedMax. 13m/min (including punching and cutting) (PLC control )
Total 16.7kw (main machine 5.5kw, hydraulic punching 7.5, hydraulic cutting 3.7kw)
Hydraulic stationTwo sets
DieTwo sets (one for punching hole, one for cutting)
