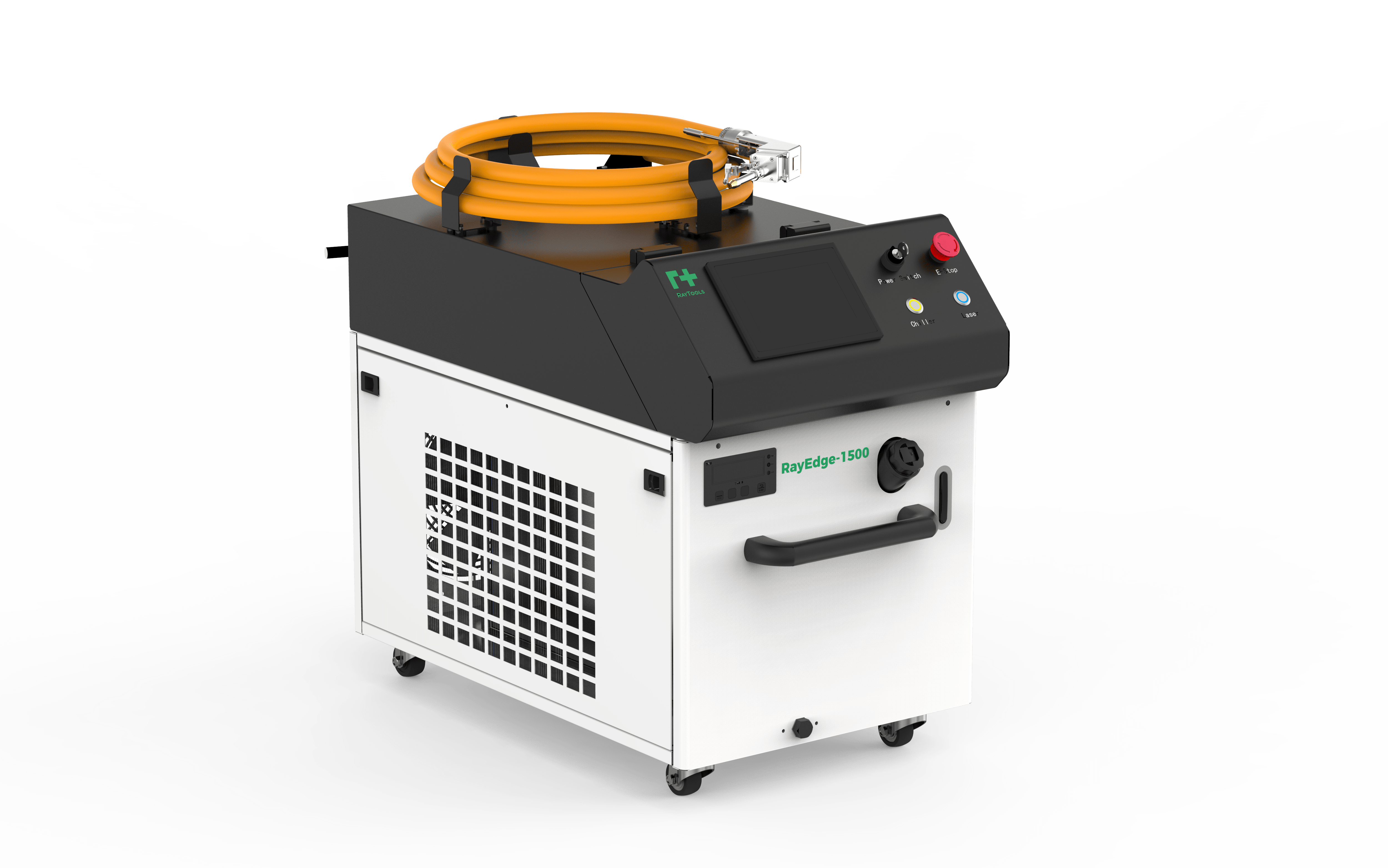

4-IN-1 Laser Welding Machine- Rayedge- 1500W


RAYTOOLS

RAYTOOLS Handheld Fiber Laser Welding, Cutting , Welding Seam and Remote Cleaning (4-in-1 Machine) is One Machine for multiple purposes, small size and light weight, easy to learn, only a few hours for beginners to get started.



Rayedge 4 In 1 Laser Welding Machine Features :

  1. Maxphotonics laser source
  2. “4-in-1 Function” (Welding, Cutting , Welding Seam Cleaning and Remote Cleaning). Quick change structure of tip assembly from laser processing head.
  3. Compact integrated design with easy operation.
  4. Wobble welding to improve welding capacity to seam.
  5. Wire feeder included to expand application range.
  6. Multiple safety protection with auto beam off function once the nozzle goes away from workpiece

Quick info

Get A QuoteSpecs PDF Download

Description

MODEL: RayEdge-1500W: RayEdge-2000W
LASER POWER: 1500W: 2000W
LASER SOURCE: 1500W MaxPhotonics: 2000W MaxPhotonics
Laser wavelength: 1080 mm: 1080 mm
Fiber length: 10 m: 10 m
Fiber core: 50 um: 50 um
Welding speed: 0-20 mm/s: 0-20 mm/s
Welding style: Wobble (Single Axis): Wobble (Single Axis)
Wobbling RangeWeld: 0 - 5 mm: 0 - 5 mm
Weld Seam Clean: 0 -10 mm: 0 -10 mm
Remote Clean: 0 - 80 mm: 0 - 80 mm
Welding seam width: Max 3 mm: Max 3 mm
Welding Thickness: Max 3mm (SS, MS) 2mm AL based on 1500W Laser (MS 7 series, SS 3 series Feeder Wire & AL 5 Series Feeder Wire): Max 5mm (SS, MS) 3mm AL based on 2000W Laser (MS 7 series, SS 3 series Feeder Wire & AL 5 Series Feeder Wire)
Cooling: Water cooling: Water cooling
Cover glass: Ø20mm *3mm: Ø20mm *3mm
Collimation Length: 60mm: 60mm
Focus Length: 150mm: 150mm
Power Supply: 220V/Single Phase/50 or 60 Hz: 220V/Single Phase/50 or 60 Hz
Overall Dimension: 910 x 490 x 800mm (L x W x H): 1053 x 800 x 1225mm (L x W x H)
Gross/Net Weight: 155kg / 125 kg: 280kg
Brand New: SWITZERLAND BRAND | China- Made: SWITZERLAND BRAND | China- Made
WIRE FEEDER DETAILS :
Wire Feeder: Included: Included
Wire Diameter: 0.8 /1.0 / 1.2 / 1.6 mm: 0.8 /1.0 / 1.2 / 1.6 mm
Feeding Speed: 0.1 -18 m/min: 0.1 -18 m/min
Wire Material: SS/AL Magnesium: SS/AL Magnesium
Overall Dimension: 440 x 250 x 580mm (L x W x H): 440 x 250 x 580mm (L x W x H)
Packing Dimension: 470 x 310 x 620 mm: 470 x 310 x 620 mm
Gross/Net Weight: 15kg / 14 kg: 15kg / 14 kg
