RAYTOOLS BM111 AUTO FOCUS LASER CUTTING HEAD


RAYTOOLS

MACHINE DESCRIPTION:



Raytools Laser Cutting Head is equipped with Auto Focus Laser Cutting Laser Technology. It has the ability to cut High Thickness in High Speed at Lower Cost of Consumables. Lastly, it has anti-collision design and height adjustment sensitivity.



POWER RATING: 3kw  Auto Focus Laser Cutting



Quick info

Categories: ,
GET A QUOTESpecs pdf download

Description

Model NoBM111
Fiber InterfaceQBH , QD
Clear Aperture28mm
Auto Focus
Range
+10 ~ -12 mm
Acceleration≤10 m/s²
Velocity≤10 m/min
Accuracy≤ 50μm
Cover Glasses
Collimation Side (top)Φ24.9* 1.5mm
Focusing Side (Middle / Bottom)

Φ27.9* 4.1mm

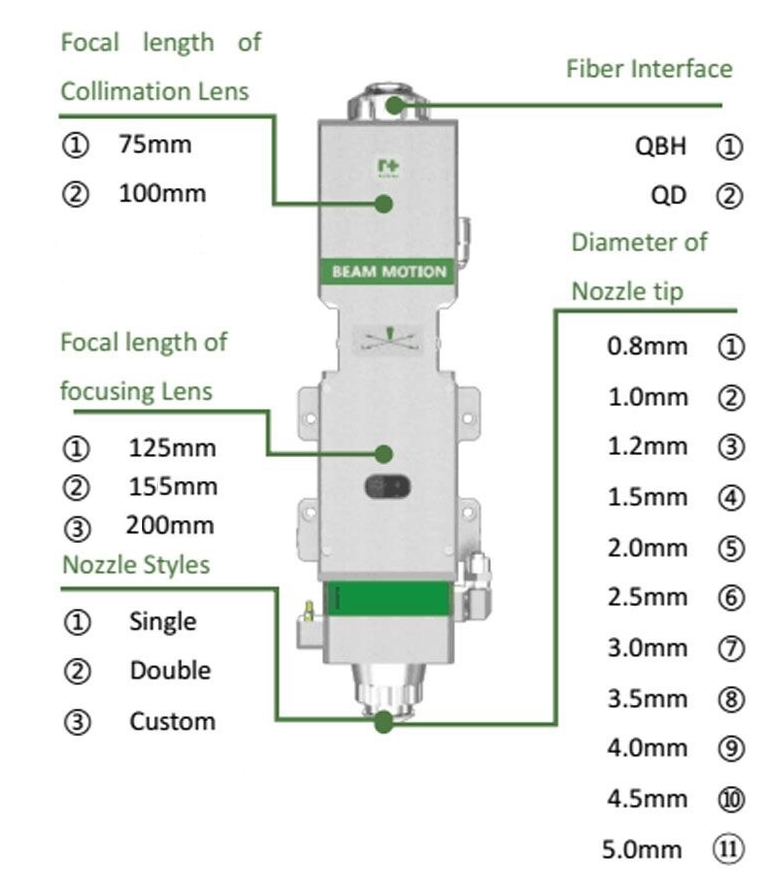

Collimation Length75mm , 100mm
Focusing Length125mm , 155mm , 200mm
Nozzle StylesSingle , Double , Custom
Diameter of Nozzle Tip0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Assist Gas Pressure≤ 30 bar
Weight~ 5.7 kg

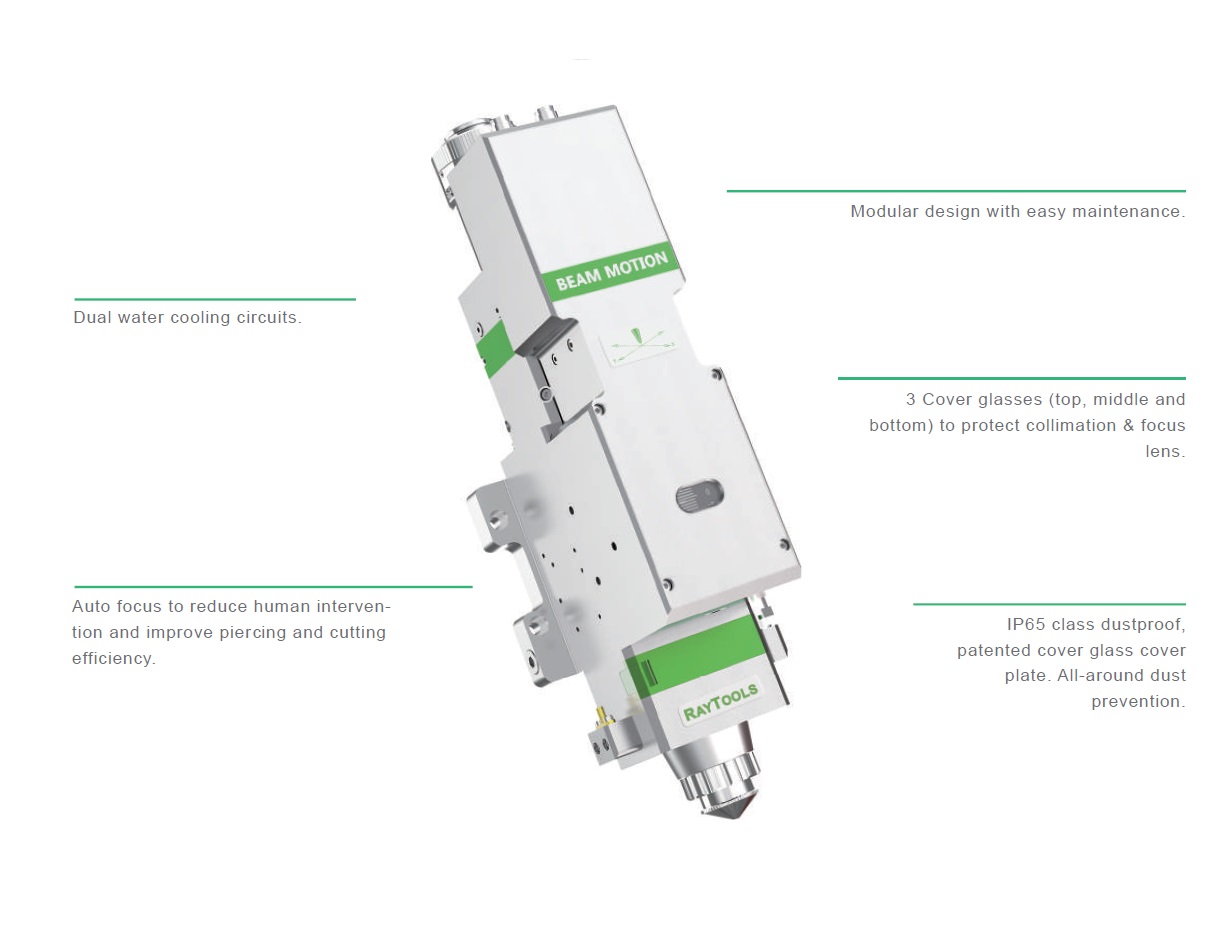

  • Modular design with easy maintenance.
  • Dual water cooling circuits.
  • Auto focus to reduce human intervention and improve piercing and cutting efficiency.

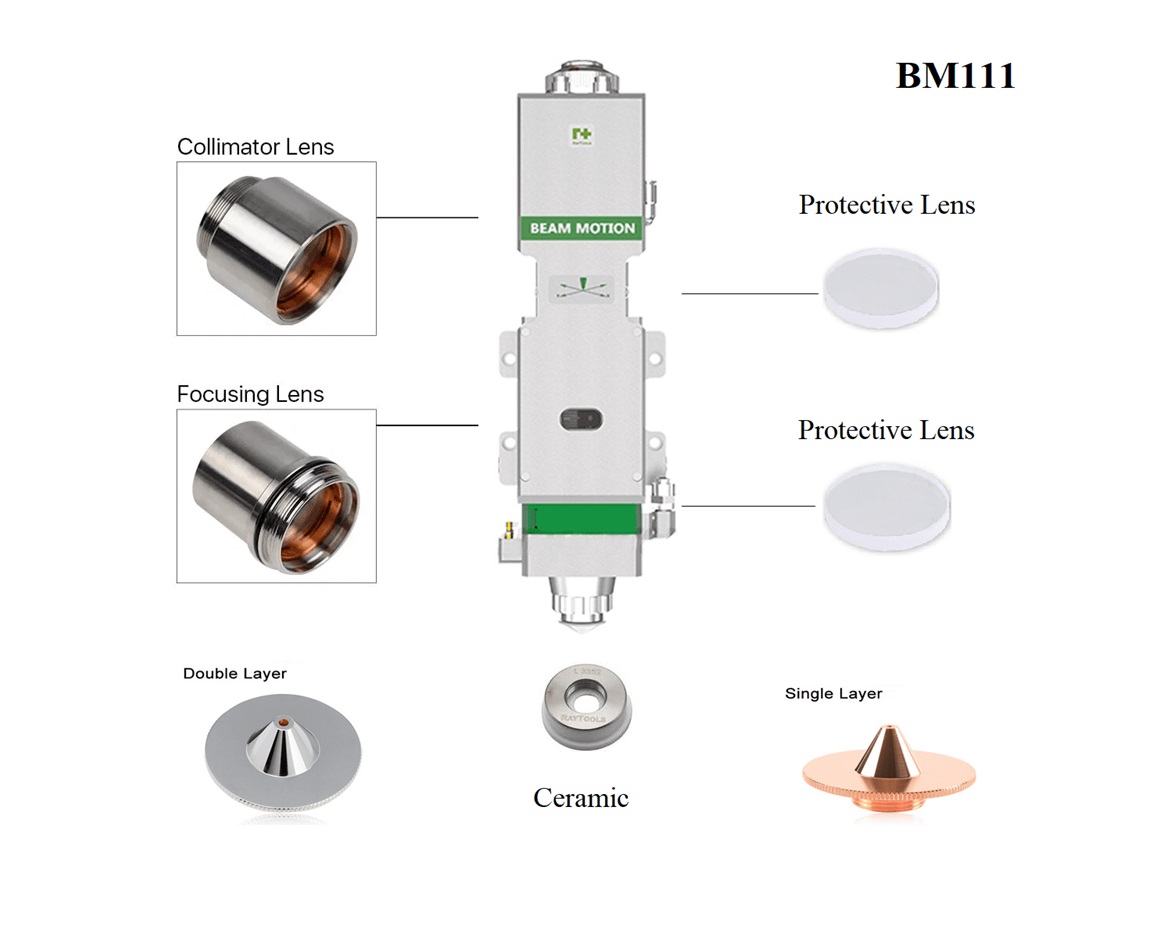

  • 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
  • IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
