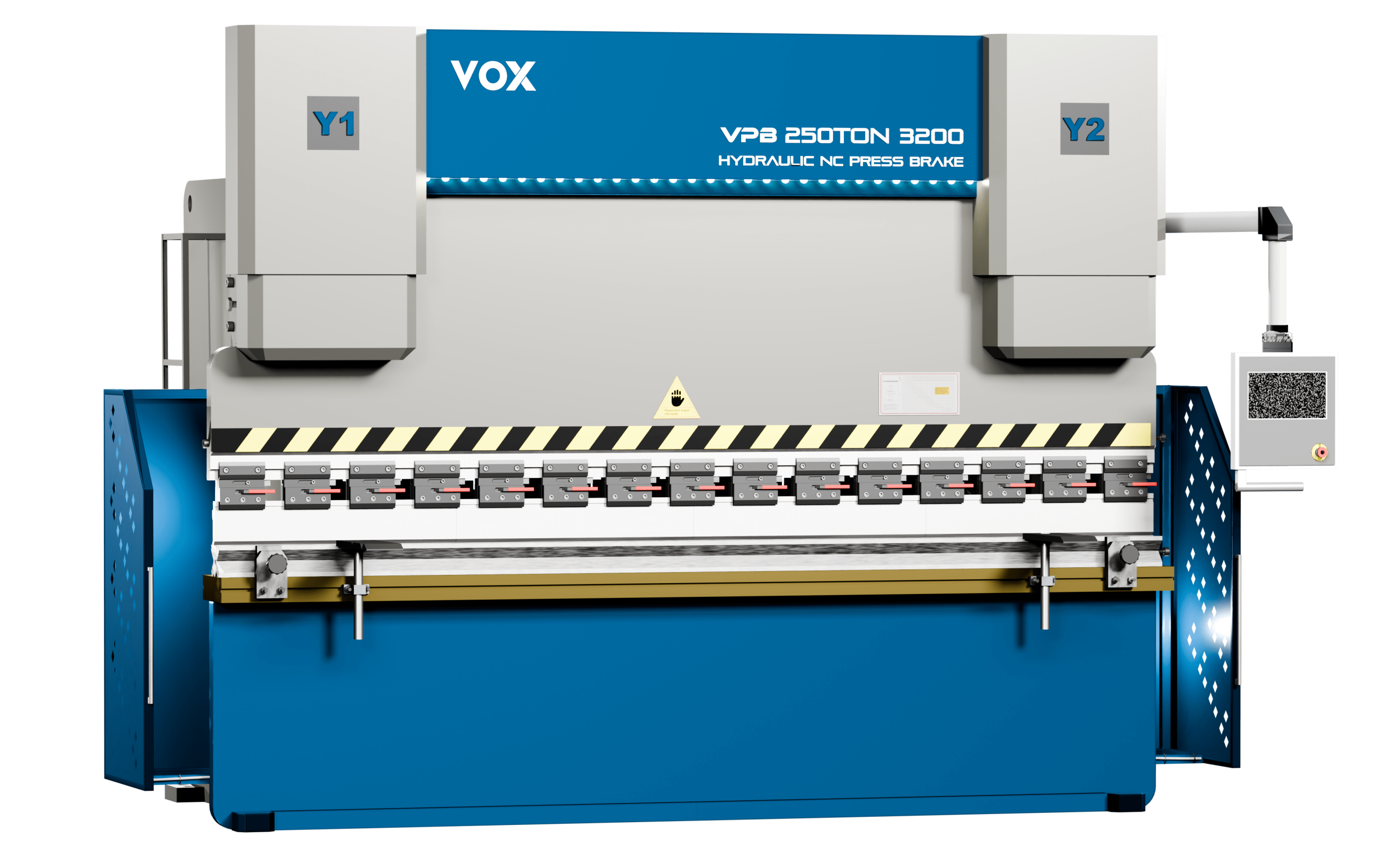

HYDRAULIC PRESS BRAKE – WC67Y-250Ton x 3200 mm


VOX

Vox’ main products are CNC Hydraulic Press Brake, Hydraulic Press Brake and Shearing machine. Vox offers quality Hydraulic Press Brakes and Hydraulic Shearing machine that provides simplifies and easily accessible controls for optimum operator efficiency and output.

The machine adopts steel plate welded frame, high strength and rigidity. After annealing, stress relief, overall processing. Ensure that the machine precision. The machine adopts hydraulic transmission, and use of Germany Rexroth world brand hydraulic system.

Quick info

SKU: 5761059604 Categories: , ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC PRESS BRAKE
Model NoWC67Y – 250 Ton x 3200 mm
Brand Name“VOX”
(Joint Venture with France Co)
With E21 NC CONTROLLER WITH INVERTER
Nominal Force2500 KN
Working table length3200 mm
Distance Between Housing2600 mm
Throat Depth 450 mm
Ram Travel 200mm
Max. open height between
working table surface and ram		480 mm
Adjustment of ram travel160 mm
Gear PumpTypeCP1-32-P-10R
Flow32 L/min
Pressure25 MpA
Main MotorType160L-4
Power15 kw
Speed1460 r/min
Dimension (LxWxH) (L x W x H)3900x2050x2800mm
Weight 12000kg
  • Schneider electrical elements with CE standard electrical components and thermal overload protection, big chain lockable main power switch, E21 NC controller with inverter.
  • Rexroth main valve, Siemens motor and Shanghai gear pump.
  • NOK SEAL RING, CHIP - SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING, IRON PALLET IN FOUR CORNER.
  • Back gauge with motor redactor
  • Metal cover with plastic sprayed surface, iron surface with good quality painting.
  • Rear and sides covers with limit switch.
  • Cantiler arm with stainless steel.
  • English and Arabic sticker and warming label
  • Foot pedal control
  • Manual adjustable the gap of the blades
  • Supporting arm with measure
  • Bite type tube fittings
  • Automatically dropping system

Reviews

There are no reviews yet.

Be the first to review “HYDRAULIC PRESS BRAKE – WC67Y-250Ton x 3200 mm”

Your email address will not be published. Required fields are marked *

  +  88  =  91

Additional information

Weight 2 kg
Dimensions 3 × 4 × 5 cm

Press Brake Tonnage Calculator (metric)

You can calculate press brake tonnage by input below required data.
If you are a manufacturer or a sheet metal processing factory that needs to buy new Press Brake Machine, you can refer to the Press Brake Tonnage Calculator for calculating the required bending tonnage. By using the Press Brake Tonnage Calculator, you only need to enter the Sheet Metal Thickness, Bending Length, and our recommended vee opening width then the calculator will show the required bending force.
