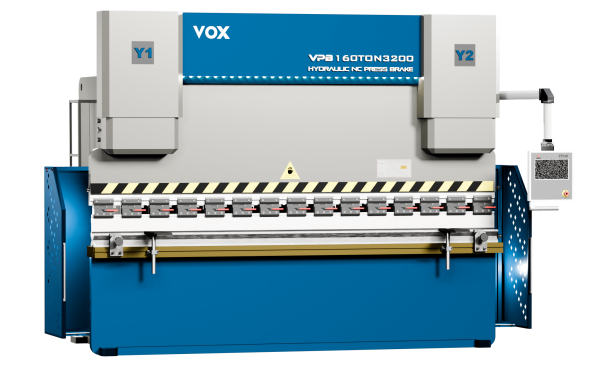

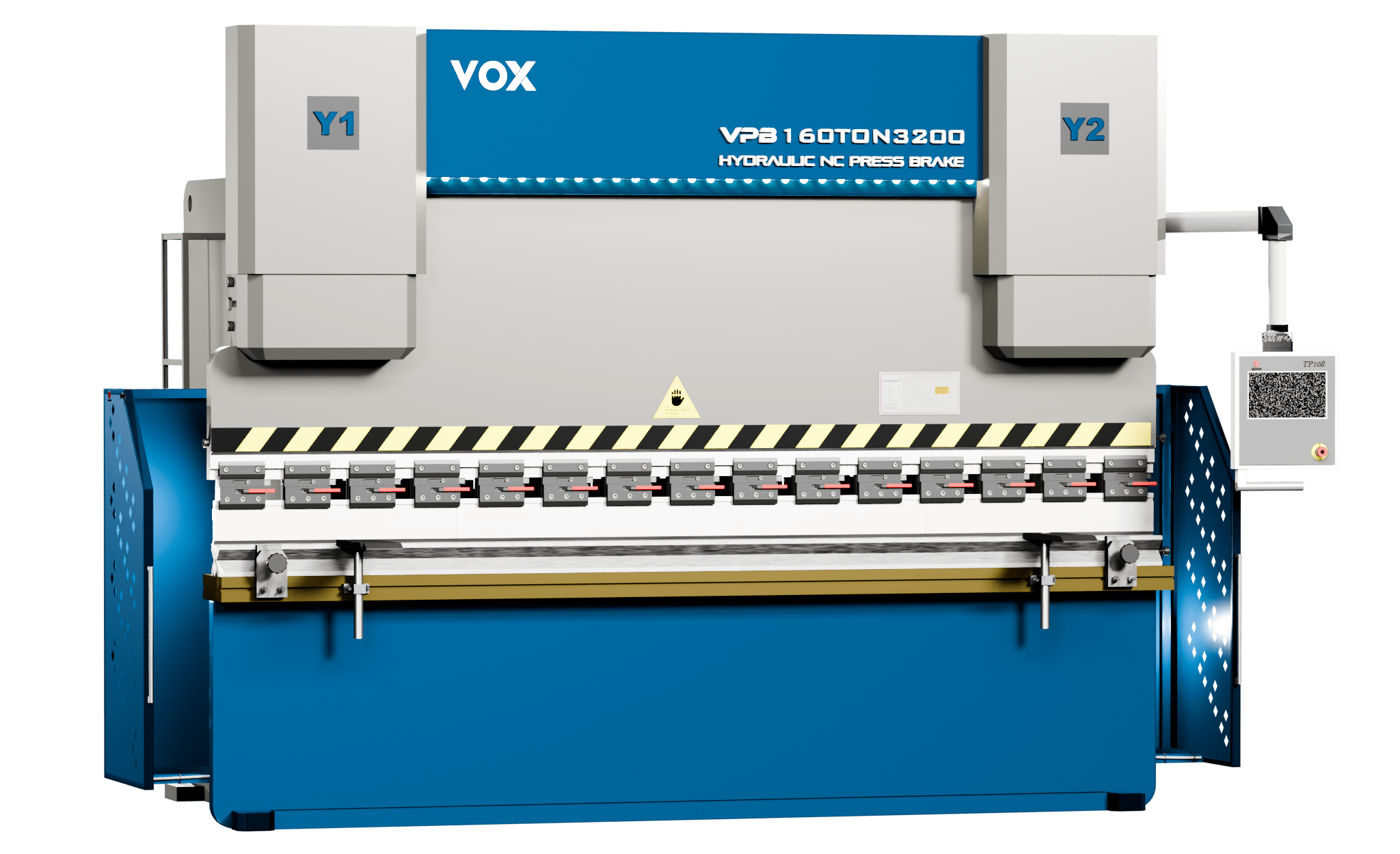

HYDRAULIC PRESS BRAKE WC67Y – 160 Ton x 3200 mm


VOX

Vox’ main products are CNC Hydraulic Press Brake, Hydraulic Press Brake and Shearing machine. Vox offers quality Hydraulic Press Brakes and Hydraulic Shearing machine that provides simplifies and easily accessible controls for optimum operator efficiency and output.



The machine adopts steel plate welded frame, high strength and rigidity. After annealing, stress relief, overall processing. Ensure that the machine precision. The machine adopts hydraulic transmission, and use of Germany Rexroth world brand hydraulic system.



Quick info

SKU: 6999458737 Categories: , ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC PRESS BRAKE MACHINE
Model NoWC67Y – 160Ton x 3200
Brand Name“VOX”
(Joint Venture with France Co) With E21 NC Controller
Nominal Force1600 KN
Working bench length3200 mm
Unload Travel Times of Slide Block6 min-1
Distance Between Columns2540 mm
Throat Depth330 mm
Slide Block Stroke200 mm
The max opening height between bench & slide block465 mm
Adjustment of slide block stroke150 mm
Working Pressure of Hydraulic System30 MPa
Travel Speed of Slide BlockUnload120 mm/s
Full Load11 mm/s
Return Stroke115 mm/s
Two-stage Idler Gear Pump#rowspan#Flow Rate32 ml/r
Pressure32 MPa
Key Motor (4-B35)Power15 kW
Speed1460 r/min
Motor for slide block adjustment (4-B14)Power0.37 kW
Speed1400r/min
Motor for Back Plate Striker Adjustment (6-B3)Power0.55 kW
Speed930 r/min
Dimension (L x W x H)3650 x 2110 x 2610 mm
Weight10,000 Kg
Oil Tank Capacity420L
Temperature around Machine5-40ºC
Humidity around Machine30-80%
  • Schneider electrical elements with CE standard electrical components and thermal overload protection, conventional main power switch, electrical box with lock, E21 NC controller with inverter.
  • Rexroth Hydraulic Components
  • SIEMENS MOTOR
  • NOK JAPAN SEAL RING, CHIP - SLEEVE-PIPE CONNECTION, EMERGENCY STOP, STANDARD UPPER AND LOWER TOOLING IRON PALLET IN FOUR CORNERS.
  • Back gauge with motor redactor movement with Ball screw Technology for higher precision.
  • Rear and sides covers with limit switch.
  • Cantilever arm with stainless steel.
  • English stickers and warning label
  • Foot pedal control
  • Manual adjustable the gap of the blades
  • Supporting arm with measure
  • Bite type tube fittings
  • Automatically dropping system
