Oval Roll Forming Machine

MACHINE DESCRIPTION:

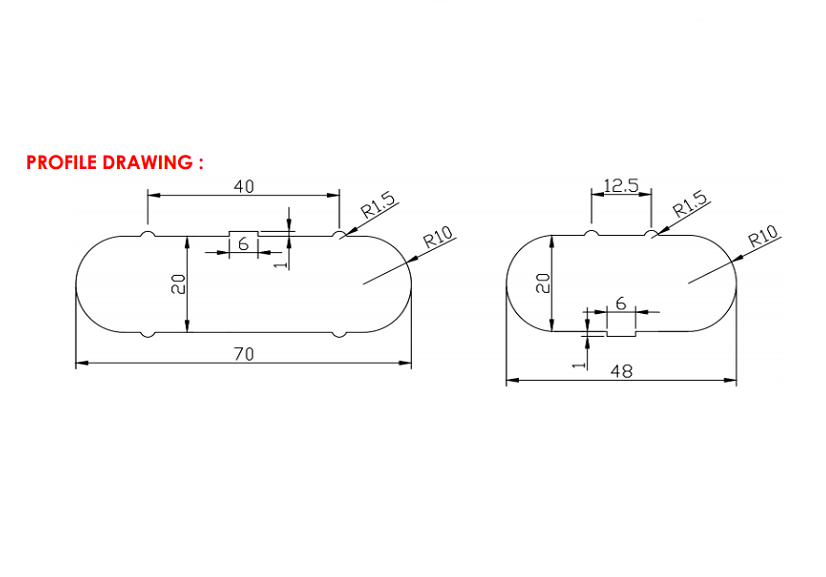

Oval Roll Forming Machine is technically capable to manufacture steel pipes in oval shape continuously as per fixed cutting lengths, and the pipes produced from galvanized steel are applied as electric conduits

Quick info

SKU: 0952517177 Categories: ,
GET A QUOTESpecs pdf download

Description

Decoiler
Expanding MethodManual Expanded Version
ID450-500 mm
OD12000 mm
Max Loading3Ton
Width300 mm
LEVELING BEACH
Four rollers leveling beach to make sure material neat, clear and straight
ROLLING MACHINE
Roller station20stations
Shaft material45# steel
Outer diameter 50mm
Roller materialGCr15 quenching at 58 to 60 degree
TransportChain
Forming Speed0-8m/min
Motor5.5KW
Machine8500 x 800 x1450 mm
Machine frame280 H beam
Frame thickness20mm, middle plate frame
Voltage380v,50Hz,3 phase
FLYING CUTTING SAW
The material of bladeCr12Mov , Hardening HRC 58-62℃
Length Tolerance3m±1.5mm
Flying cutting saw, can make sure the perfect shape after shearing
PLC CONTROL
Screentouch screen
PLCDelta
Automatic-length measurement
Automatic-quantity measurement
TABLE
Output frame each one for 3 meters
Could be welded locally according to customer needs.
