SURFACE GRINDER M7135A


WEIDA

MACHINE DESCRIPTION:

Surface Grinder is a machine tool used to provide precision ground surfaces, either to a critical size or for the surface finish. The grinding wheel rotates in the spindle head and is also adjustable for height.

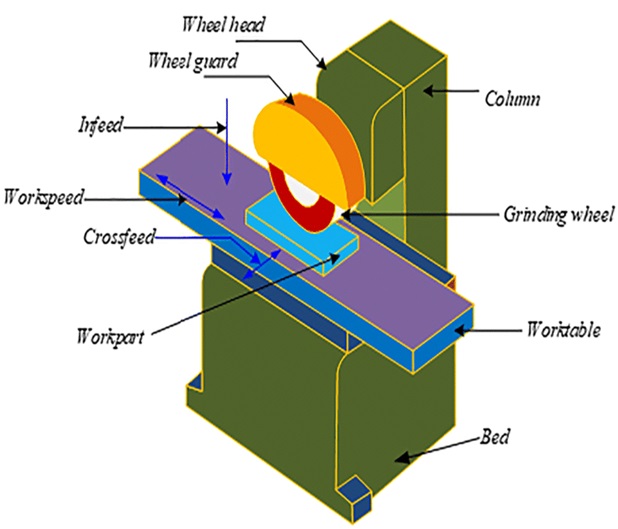

WORKING PRINCIPLE:

Surface grinding is used to produce a smooth finish on flat surfaces. It is a widely used abrasive machining process in which a spinning wheel covered in rough particles (grinding wheel) cuts chips of metallic or nonmetallic substance from a workpiece, making a face of it flat or smooth.

Quick info

SKU: 2154055348 Categories: ,
GET A QUOTESpecs pdf download

Description

SURFACE GRINDER
Model NoM7135A
Brand Name“WEIDA”
Capacity :
Max. Dim of grinding component (L x W x H)1000mm x 350mm x 405mm
Max. Longitudinal travel of table1020mm
Max. Cross travel of table390mm
Max. distance of spindle center to table surface580mm
Max. load of worktable400kg.
Worktable :
Dim. Of worktable surface ( L x W)1000mm x 350mm
T-sits of worktable18 x 3 mm*n
Speed of worktable0-26 m/min
Automatic feed forward and backward0.5 – 20 mm
Feed- rate of hand wheel (1 Scale)0.02 mm
Feed- rate of hand wheel ( 1 Circle)4 mm
Abrasive Wheel :
Abrasive wheel dim (D x W x D)350mm x 32mm x 127mm
Speed of spindle1450 r/min
Vertical Mechanism :
Vertical movement per circle of micro-adjusting mechanism0.04 mm
Federate per scale of micro-adjusting mechanism0.001 mm
Motor :
Spindle Motor5.5 (Y132S-4B5) kw
Dimension :
Outer dim. of machine (L x W x H)2660mm x 1722mm x 1917 mm
Net Weight , Gross Weight3.7 T , 3.9 T
