  /    /  WELDING MACHINES, WELDING MACHINES  /  WELDING MACHINE TIG 200CT

tig 200ct

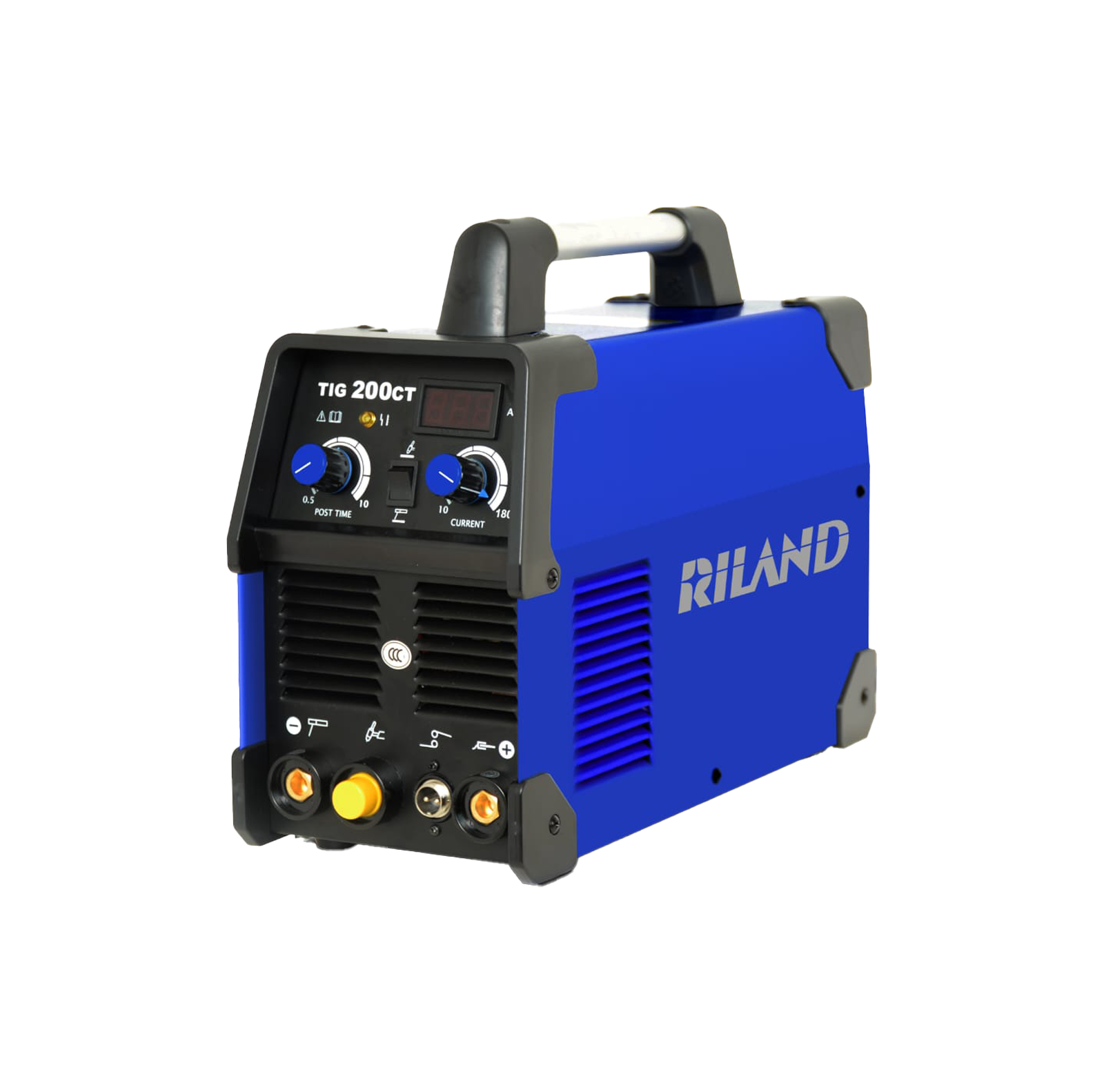

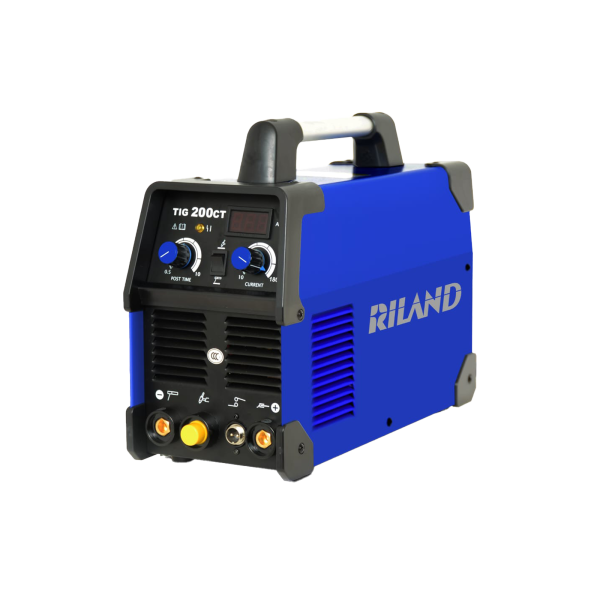

WELDING MACHINE TIG 200CT


RILAND

MACHINE DESCRIPTION:



TIG Welding, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with or without the addition of filler metal.

Quick info

Categories: ,
GET A QUOTESpecs pdf download

Description

Rated input voltageSingle phase AC220V±15%
Input frequency50/60 Hz
Rated Input CurrentTIG: 26 A
MMA: 31.2 A
Output CurrentTIG: 10 ~ 180 A
MMA: 10 ~ 155 A
Rated Working VoltTIG: 17.2 V
MMA: 26.2 V
No Load Volt Uo=58 , Ur=16.5 V
Duty CycleTIG: 30 %
MMA: 40 %
Arcing Way HF
Effectiveness 80 %
Power Factor 0.73
Insulation Grade F
Housing Protection Grade IP21S
Weight 6.5 kg
Dimensions 402×160×300mm
  • Adopt brand-new MOS inverter technology, imported key components, the whole machine is stable and reliable;
  • Newly added manual welding function, one machine with dual use, higher cost performance;
  • Brand new appearance design of surrounding corners, beautiful atmosphere;
  • Adopts high-frequency pressurized arc ignition and pulse thermal arc ignition design, the arc starting success rate of the spot welding process is high, and the weld is formed Beautiful;
  • The current adjustment is sensitive and accurate, during the welding process, what you adjust is what you get;
  • The use of a new type of buffer gas valve, steeples adjustment of the after-air time, greatly saving user gas costs;
  • A wide range of adaptable network pressure, perfect within 187 ~ 253V Work, stable current output;
  • Small size and light weight, suitable for outdoor site construction.
