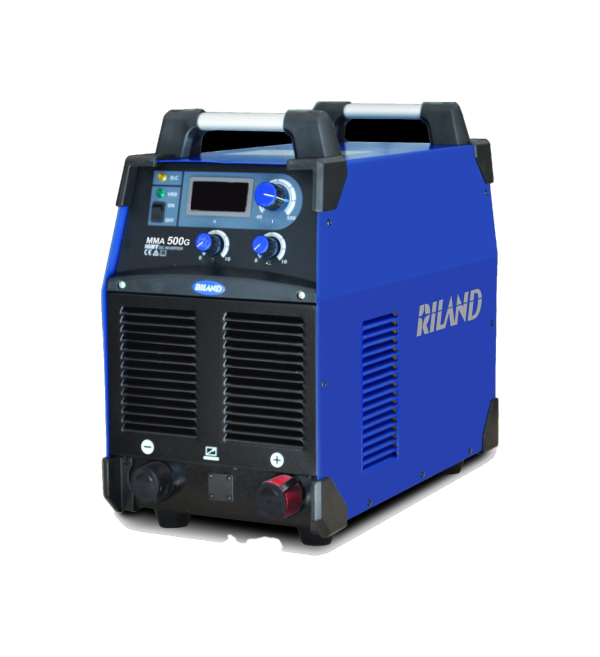

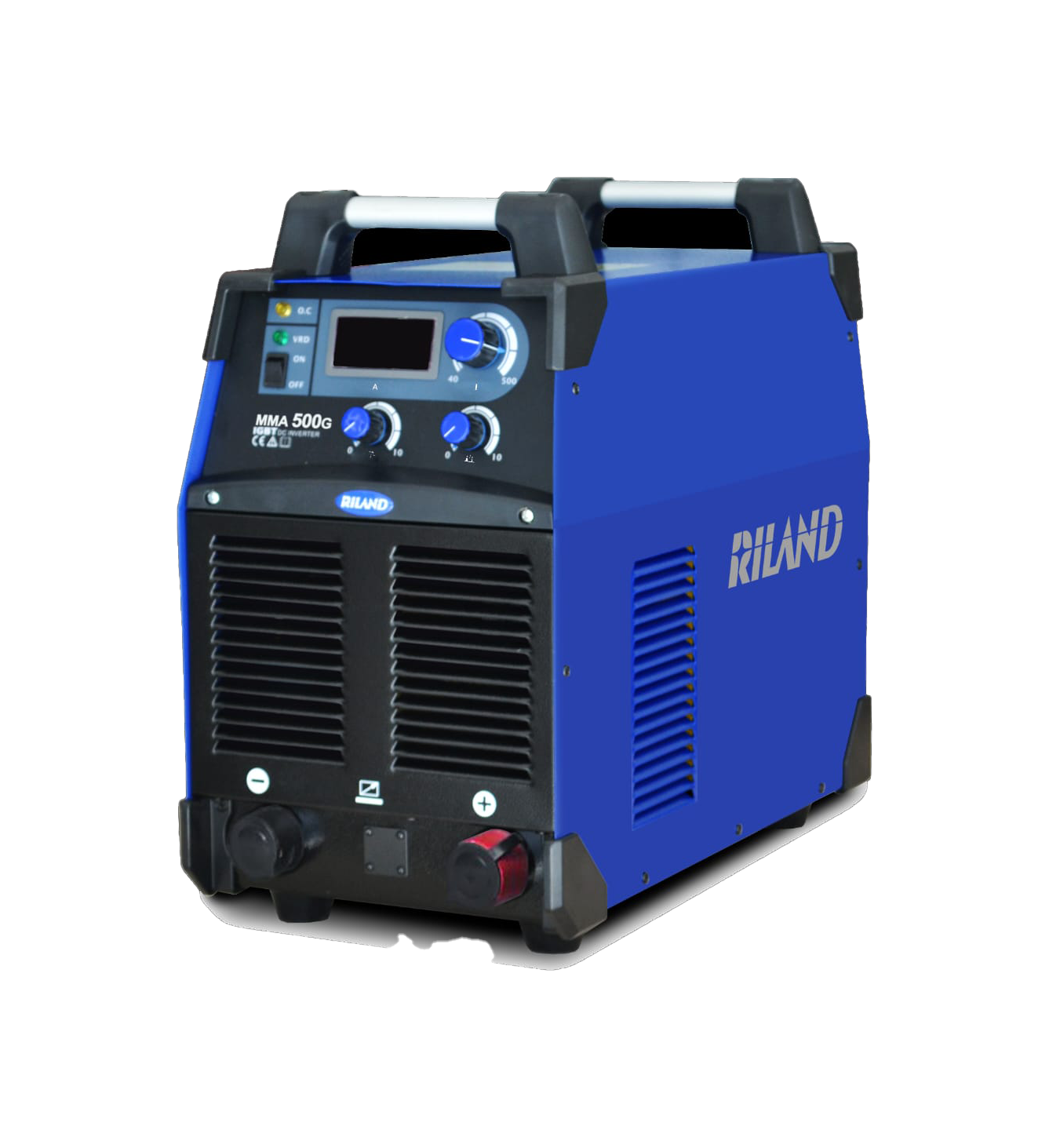

WELDING MACHINE MMA 500G


RILAND

MACHINE DESCRIPTION:



Manual Metal Arc (MMA) welding is the most flexible and one of the most widely used arc welding processes. It involves striking an arc between a covered metal electrode and a workpiece. The heat of the arc melts the parent metal and the electrode which mix together to form, on cooling, a continuous solid mass.

Quick info

GET A QUOTESpecs pdf download

Description

Frequency 50/60 Hz
Rated Input Current3 Phase AC380V±15%: 36.2 A
3 Phase AC415V±15%: 35.2 A
3 Phase AC440V±15%: 31.2 A
No Load Voltage3 Phase AC380V±15%:
68 V
3 Phase AC415V±15%: 73.4 V
Phase AC440V±15%: 74 V
Output Current40 V
Force Range 0-100 A
Duty Cycle 40 %
No Load Loss 80 W
Efficiency 85
Power Factor 0.93
Insulation Grade F
Housing Protection GradeIP21
Weight 26 kg
Dimension (LxWxH) 526 x 272 X 468 mm
  • VRD adjustable
  • Arc force adjustable
  • Hot start adjustable
  • Recommend for 5.0mm electrode
  • Suitable for acid electrode, basic electrode and cellulosic electrode
  • Tri-proof air duct design.
