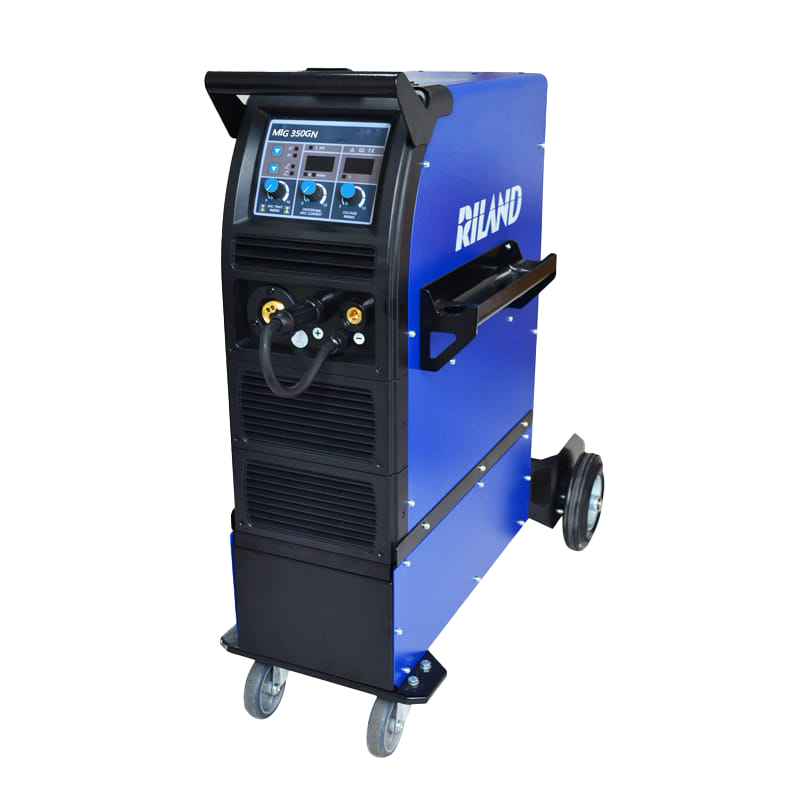

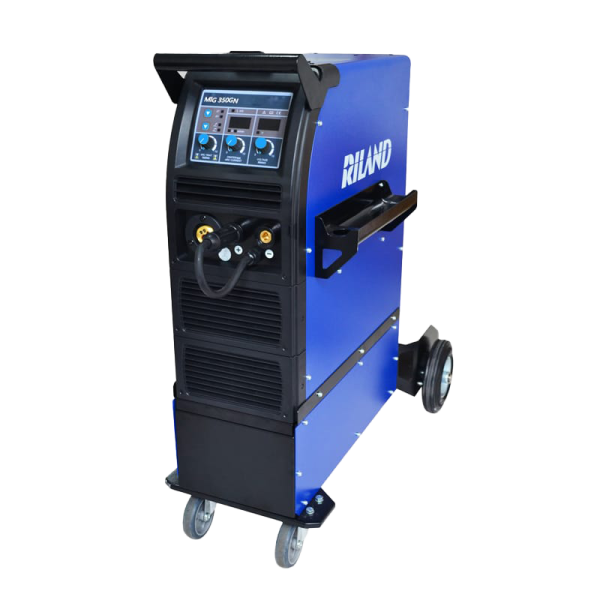

WELDING MACHINE MIG 350GN


RILAND

MACHINE DESCRIPTION:



Metal Inert Gas (MIG) welding is an arc welding process that uses a continuous solid wire electrode heated and fed into the weld pool from a welding gun. The two base materials are melted together forming a join.

Quick info

GET A QUOTESpecs pdf download

Description

Power Voltage3 Phase / 380V ±15%
Frequency50/60 Hz
No Load Voltage56 V
Rated Input CurrentMIG: 18 A
MMA: 19 A
Output Current Adjustment MIG: 50 – 350 A
MMA: 70 – 350 A
Output VoltageMIG: 16.5 – 31.5 V
MMA: 22.8 – 34 V
Duty CycleMIG: 35%
MMA: 20 %
Power Factor 0.93
Efficiency 85%
ype of Wire Feeder Internal
Wire Feed Speed 3-16 m/min
Post Flow Time 1.0 ± 0.5 S
Welding Wire Diameter 0.8 / 1.0 / 1.2 mm
Insulation Grade F
Housing Protection grade IP21
Welding Thickness More than 0.8 m
Weight 60 kg
Overall Dimension 900 x 458 x 960 mm
