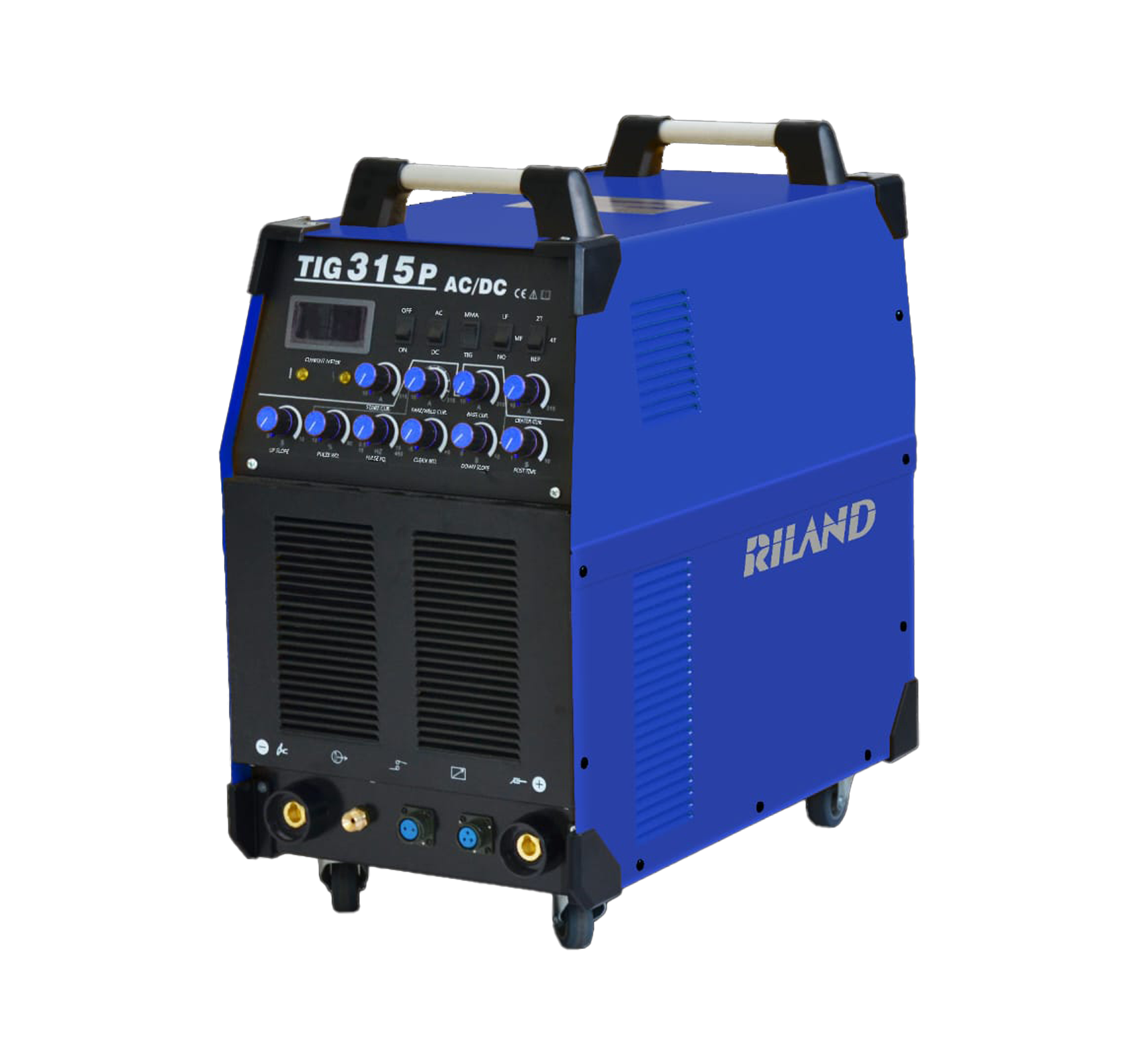

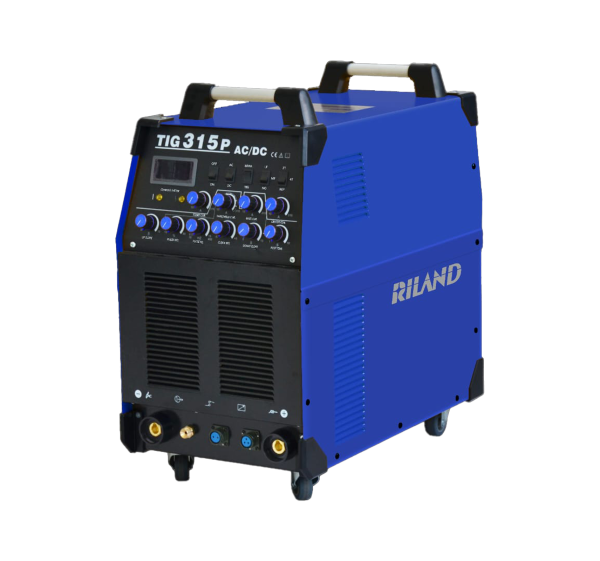

WELDING MACHINE TIG 315P


RILAND

MACHINE DESCRIPTION:



TIG Welding, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with or without the addition of filler metal.

Quick info

GET A QUOTESpecs pdf download

Description

Frequency 50/60 Hz
Rated Input CurrentTIG3 Phase AC380V±15%: 17.2 A
3 Phase AC400V±15%: 16.3 A
3 Phase AC415V±15%: 15.7 A
MMA3 Phase AC380V±15%: 15.5 A
3 Phase AC400V±15%: 14.7 A
3 Phase AC415V±15%: 14.2 A
Output CurrentTIG12-300 A
MMA 15-240 A
No Load VoltageTIG3 Phase AC380V±15%: 62 V
MMA 3 Phase AC400V±15%: 65 V
3 Phase AC415V±15%: 68 V
Rated Output Voltage TIG 22 V
MMA 29.6 V
Pulse Duty Cycle 10-90 %
Post Time 1-10 S
Pulse Frequency (LF) 0.5 -15 Hz
Pulse Frequency (MF) 15-450 Hz
Basic Value Current 12-300 A
Arc Initiation Current 12-300 A
Attenuation Time0-10 S
Remote Control Yes
Arc Initiation WayHF
Efficiency 85%
Duty CycleTIG 20%
MMA 60%
Power Factor0.93
Insulation GradeH
Protection GradeIP21
Weight 38 kg
Dimension (LxWxH) 609 x 332 X 622 mm
  • AC/DC selectable
  • Pulse frequency and pulse width adjustable
  • AC balance adjustable
  • 2T/4T
  • Post-flow adjustable
  • Down-slope adjustable
  • Start current and crater current adjustable
  • Tri-proof air duct design
