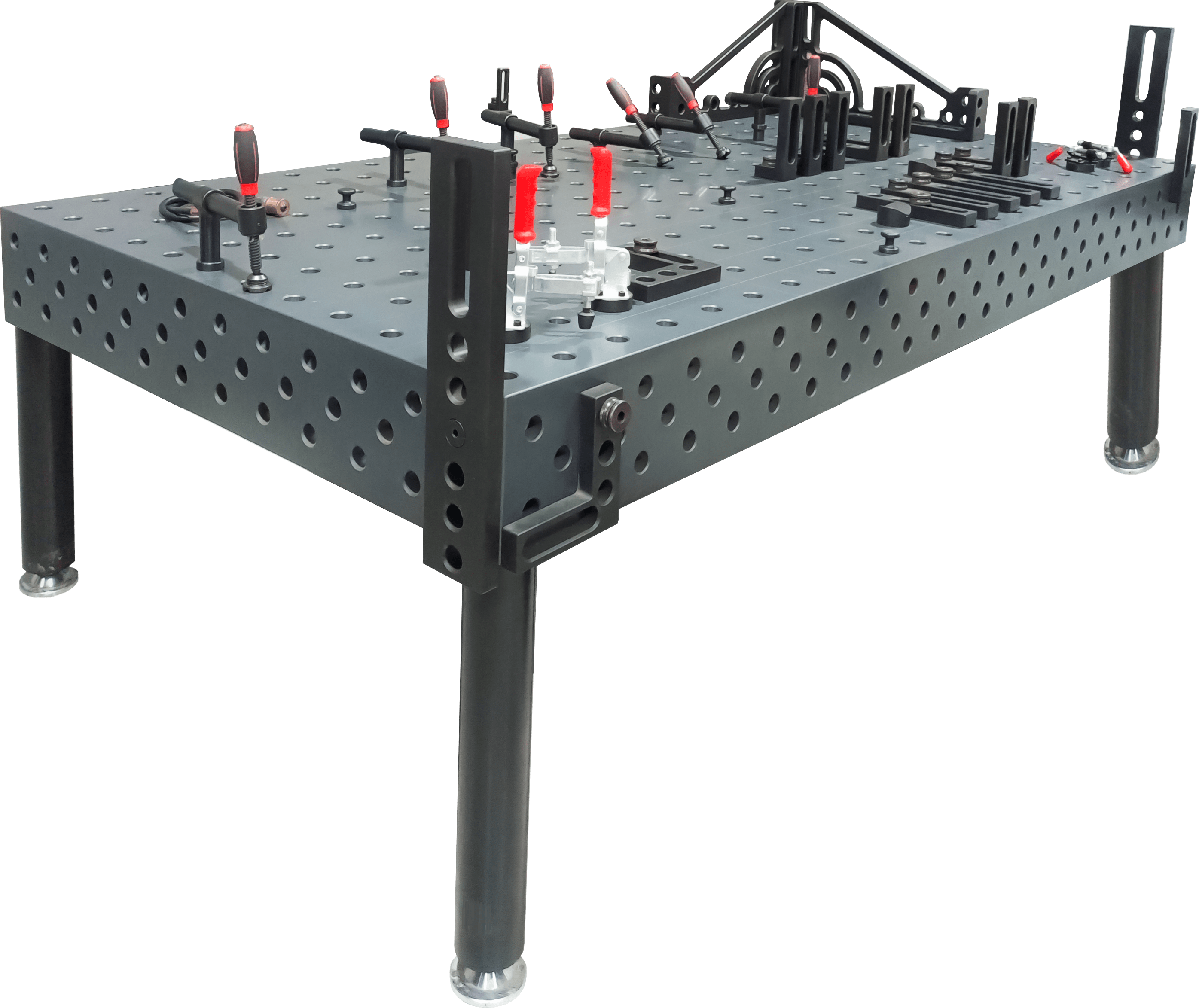

3D Welding Table (D28)

YAHANDA

Product Introduction:

• 3D Welding Table has 5 working surfaces (1 Top + 4 sides surfaces) , the sides are for extending working area and positioning.
• 3 Series: D16/D22/D28
• D16 Tables: Hole Diameter is 16mm; Hole spacing to each other is 50±0.05 mm; Grid Pattern 50 x 50 mm on table top.
• D22 Tables: Hole Diameter is 22mm; Hole Spacing to each other is 75±0.05mm; Grid pattern 75 x 75 mm on table top.
• D28 Tables: Hole Diameter is 28mm; Hole spacing to each other is 100±0.05mm; Grid pattern 100 x 100 mm on table top.</p>

Quick info

Get A Quote

Specs PDF Download

Description

D28
TABLE SIZE:	2400x1200x200		TABLE SIZE:	1200x1200x200
ACCESSORIES			ACCESSORIES
Locating Angle 175x50x75	YHD28JC175	4pcs	Locating Angle 175x50x75	YHD28JC175	2pcs
Locating Angle 175x50x175	YHD28JC175HS	4pcs	Locating Angle 175x50x175	YHD28JC175HS	2pcs
Locating Bar 225x50x25	YHD28PC225	6pcs	Locating Bar 225x50x25	YHD28PC225	3pcs
Locating Bar 500x75x25	YHD28PC500	2pcs	Locating Bar 500x75x25	YHD28PC500	1pc
V-Block Ø60x50x120°	YHD28VA60120	2pcs	V-Block Ø60x50x120°	YHD28VA60120	1pc
Clamping Parts 300x300x70	YHD28YSS300	4pcs	Clamping Parts 300x300x70	YHD28YSS300	2pcs
Clamping Parts 300x300x70	YHD28YSQ300	2pcs	Clamping Parts 300x300x70	YHD28YSQ300	1pc
Plane Square 175x175x25	YHD28PJ175175	2pcs	Plane Square 175x175x25	YHD28PJ175175	1pc
Horizontal Toggle Clamp 304cm/305cm	YHD28JY200C	2pcs	Horizontal Toggle Clamp 304cm/305cm	YHD28JY200C	1pc
Vertical Toggle Clamp 12132	YHD28JY200S	2pcs	Vertical Toggle Clamp 12132	YHD28JY200S	1pc
Quick Locking Bolt Ø28x50	YHD28KS2850	17pcs	Quick Locking Bolt Ø28x50	YHD28KS2850	9pcs
Magnetic Locking Bolt 28x25	YHD28CL2825	4pcs	Magnetic Locking Bolt 28x25	YHD28CL2825	2pcs
Countersunk Locking Bolt 28x50	YHD28CS2850	2pcs	Countersunk Locking Bolt 28x50	YHD28CS2850	1pc
Ground Connector 28x60	YHD28JD60	1pc	Ground Connector 28x60	YHD28JD60	1pc
Supporting Angle 325x75x600	YHD28ZC600L	1PC
Supporting Angle 325x75x600	YHD28ZC600R	1PC
