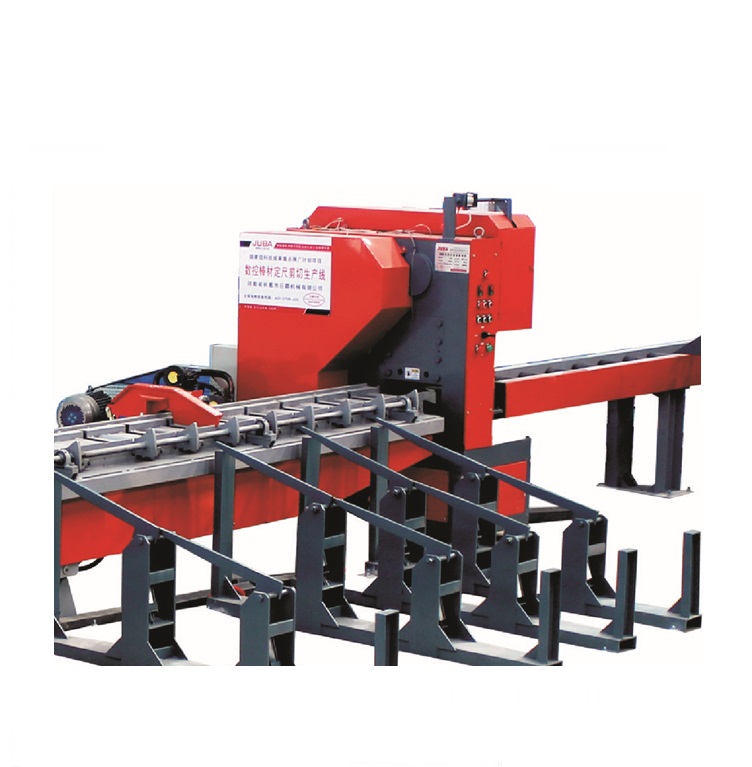

AUTOMATIC REBAR CUTTING SYSTEM – RCS-50


JUBA

MACHINE DESCRIPTION

This type of CNC steel bar shearing production line can be widely used in construction, highway and other industries. It is suitable for the cutting and shearing of steel bars of different specifications and lengths, and can realize the intercutting of steel bars. CNC steel shear production line adopts advanced programmable CNC and PLC system as the core of equipment control Stable and more efficient, strong expansion ability







Quick info

SKU: 8797919715-1 Categories: ,
GET A QUOTESpecs pdf download

Description

Model   RCS-50
Cutter 11 kw
Conveyor System1.5 kw x 2
Input Power 24.5 kwStorage System1.5 kw x 2
Air Compressor7.5 kw
Power Supply380V /3 Phase/50Hz
Cutting Diameter ≤50 mm
Conveyor Speed57m/min
Blade Size 300 x 100 x 50 mm
Cutting Length600-12000mm (or Longer)
Feeding rebar Speed47m//min
Loading Capacity6000 kg.
Dimension (L x W x h)2600 x 2300 x 2200 mm
Weight 10000 kg. (10Ton)
CUTTING CAPACITY:
DiameterD12D14D16D18D20D22D25D28D32D36D40D50
Quantity252016151310975421
DAILY OUTPUT (8Hour)
DiameterRebar LengthCutting LengthCutting TimesCutting Qty./TimesCutting Qty.Cutting Weight
D2212m6m1109666170000kg.
 MACHINE FEATURE:
  • It’s over 17 times faster than the existing manual operation to process the rebar bending operation.
  • The body consists of a multiple-stage gear and a strong flying wheel, which makes sure of the prompt and powerful bending capacity.
  • With elegant appearance, good performance and ease of use, they can reduce labor intensity.
  • Fixed-scale cutting system with three flappers can fix length accurate and preset the machining length.
  • Scissor blades make the bar with minimal section.
  • Main engine adopts distributing oil-filling system to achieve optimal results of lubrication.
  • Wide type feeding rack and discharging rack can process more bars each time.
  • Diversified storing unit and different combination patterns can increase its flexibility to store bars.
