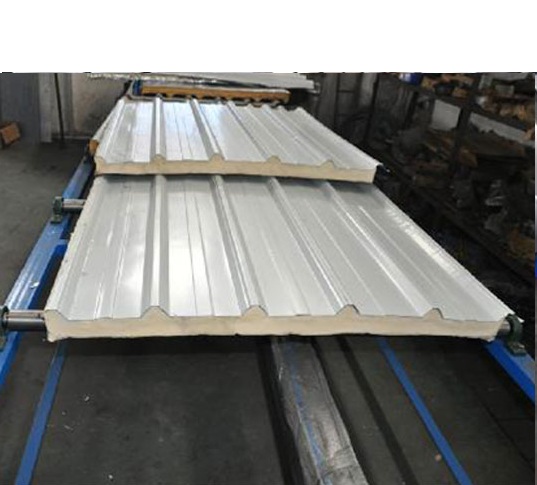

CONTINUOUS PU SANDWICH PANEL LINE


GMG

Automatic Decoiler:

  • Single arm, hydraulic expansion
  • Coil dimension: Φ508×1300 mm
  • Expansion range: Φ480~Φ550 mm
  • Expansion piston: Φ160×90 mm
  • Brake: Oil pressure brake
  • Max. capacity: 8T
  • Power: 7.5 KW
  • Loading car driven by motor which power is 5.5KW, hydraulic driven up and down: 12-15 MPA



PU Panel Line:

  • Production Material(mm): (0.35-0.8)×1220, yield strength≤G300 Colored steel
  • Production speed: 3-8 M/min
  • Production type: totally continuous production with PLC controlling
  • PU foam thickness: 30-50 mm
  • Composite structure    : position fixed by double rubber tracker
  • Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
  • Power of production    : ≥ 22KW
  • Total power: ≥ 35 KW
  • Cutting: pneumatic piston driving, non-stop cutting via sliding table
  • Electronic controlling system: full-frequency PLC controlling system
