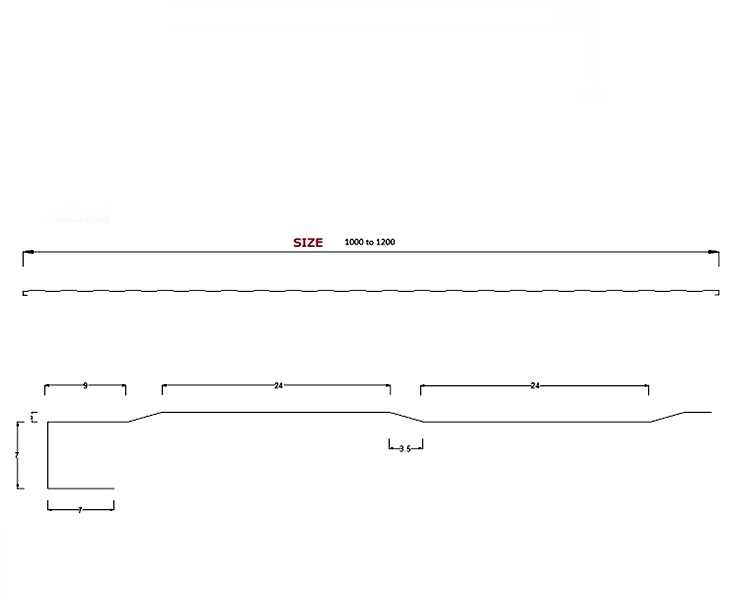

LINEAR MACHINE – YX7-1000-1200mm


GMG
  • Material Thickness: 0.5-1.0mm
  • Control Method: Mitsubishi PLC
  • Decoiler: 5 Ton normal quality
  • Rolling station number: 12 station (Single side adjustment structure
  • Shearing system: One set
  • Pressure bar: One set
  • Roller Material: GCR15 steel after quenching processing, HRC58-62 C, chrome plated surface
  • Shaft diameter & material    : 45 # steel processing, shaft diameter of 65mm
  • Main machine power: 4kw
  • Hydraulic station: 3kw
  • Hydraulic pressure: 12Mpa
  • Shearing blade material: Cr12Mov, quenching HRC 58-62

Quick info

SKU: 8682178755 Categories: ,
GET A QUOTESpecs pdf download

Description

Material Thickness0.5-1.0mm
Control MethodMitsubishi PLC
Decoiler5 Ton normal quality
Rolling station number12 station (Single side adjustment structure
Shearing systemOne set
Pressure barOne set
Roller MaterialGCR15 steel after quenching processing HRC58-62 C, chrome plated surface
Shaft diameter & material45 # steel processing, shaft diameter of 65mm
Main machine power4kw
Hydraulic station3kw
Hydraulic pressure12Mpa
Shearing blade materialCr12Mov, quenching HRC 58-62
Tolerance3m±1.5mm
Electricity380V, 50HZ, 3 Phase (Customized)
Machine frameMedia plate
TransmissionBy Chain
Machine colorYellow and blue
Machine size4.5 x 1.6 x 1.0 m
