UPRIGHT PROFILE ROLL FORMING MACHINE

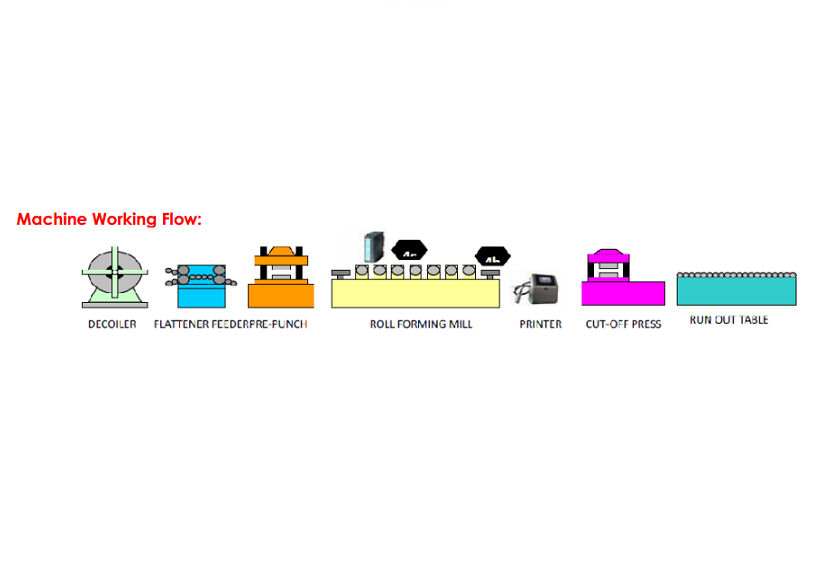

MACHINE COMPONENTS:

  • Decoiler
  • Leveling System
  • Punching Machine
  • Roll Forming Machine
  • Shearing Machine
  • Control System
  • Hydraulic System

Quick info

SKU: 8359724250 Categories: ,
GET A QUOTESpecs pdf download

Description

  PARAMETER
Decoiler3 Ton
Working speed0-15m/min adjustable
Main motor Power3Kw AC Motor
Hydraulic Power3Kw
Speed controlled by frequency converterChina
De-coiler should be with Loop control and hold down, and
with baffle for forbid coil fall down
The Decoiler has 3 segments
Leveling SystemLeveling roller diameter80mm, made from 90mm round bar
Leveling roller material45# steel quenching after 58 to 60 degree quenching
FrameMiddle plate
Frame thickness20mm

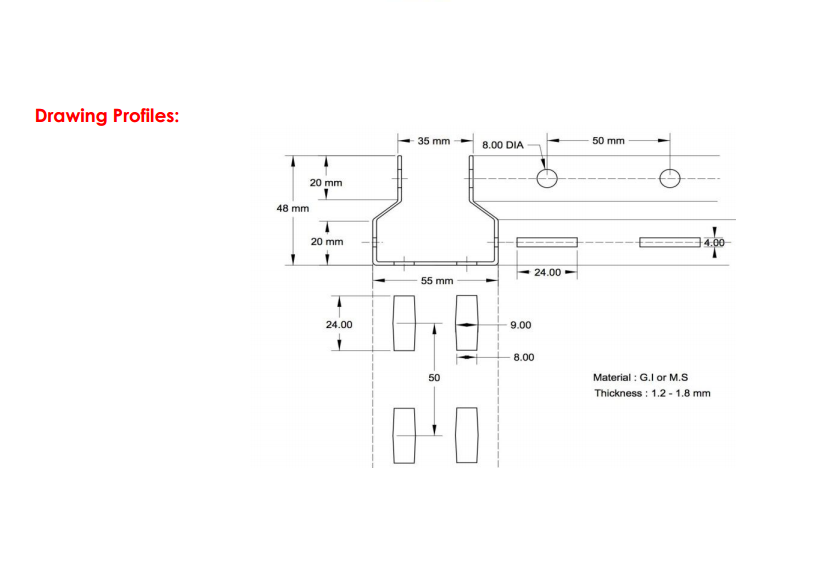

Punching StationThis punching machine will punch the material according to drawing profile
Punched coil, have to be used together with the coil feeder
Roll Forming MachineNumber of rolling stations16 rolling stations
Shaft diameter70mm
Roller materialGCR15 steel after quenching 58
Transmission methodby China
Chain width1.25mm
Machine working speed5-10m/min
Working speed5-10m/min
Motor BrandChinese famous brand MengNiu
Voltage380v, 50Hz, 3 phases
Machine size9.5*1.5*1.2m
Shearing SystemMaterialblade and mold material: Cr12 steel with quenched treated 60-62
Cutting systemadvanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor
Control SystemScreenDelta screen from Taiwan
PLCDelta DVP14ES from Taiwan
CoderENC-1-1-1T-24 from South Korea
HydraulicAdvanced hydraulic system from Taiwan
Power5.5kw
Spare PartsEasy damaged partsconk 2 pcs, fuse-link 4 pcs
Rubber mats1 pc
Bolt spanner1 pc
