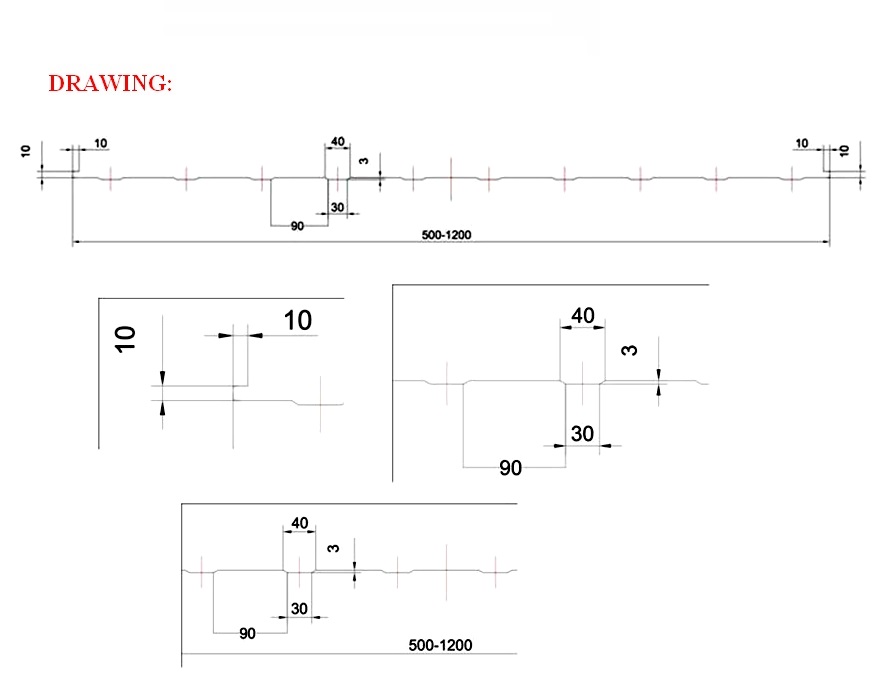

LOW RIB CORRUGATED SHEET ROLL FORMING MACHINE RF10-1180


GMG

De-coiler:
Inner dia.: ф460-510 mm;
Hyd. power: 3KW
Main roller power: 4KW
Outer Diameter: φ1200mm;
Max. Loading: ≤7T
Rib forming: Cast iron with gantry type
Cutting device: (Hydraulic blade cutting)
Material of cutting blade: Cr12
Hydraulic station power: 3kw



Roll forming unit
Forming station: 14stations (double row)
Width adjustment type: electric control type
motor power 1.5kw
The diameter of the roller axis: ¢76mm
Roll mold material: 45# forge steel, coated with chrome, 1sets, and motor 5.5kw.
The center distance of the roller up and down not less than 130mm
Driving mode: chains gearing
