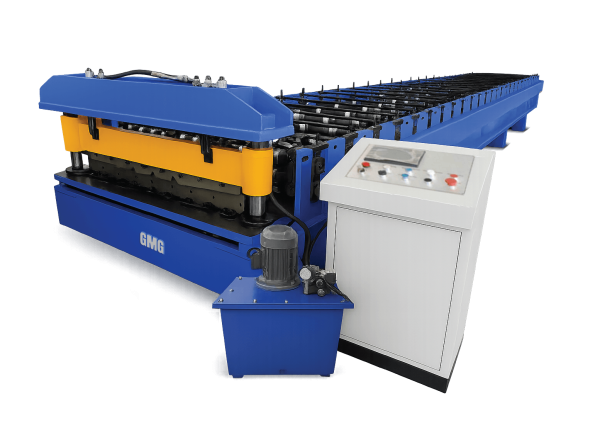

ROOF SHEET ROLL FORMING MACHINE YX 38-200-1000


GMG

MACHINE DESCRIPTION:



Roll forming is continuous bending operation in which a long strip of metal sheet that passes through sets of rolls mounted on consecutive stand each set performing only an incremental part of the bend, until the desired cross-section profile is obtained.  Roofing Sheet Roll Forming Machine consists of an automatic Decoiler feeding guide, roll forming unit, hydraulic cutter with PLC base control system. It is capable to produce a wide array of color sheet making machine that is manufactured using high grade raw material and the latest technology with the set universal standards. These products are available in various specifications and can be customized as per variegated demands of the clients

Quick info

GET A QUOTESpecs pdf download

Description

  TECHNICAL PARAMETER
Roof Sheet Roll Forming MachineMatching Materialgalvanized steel sheet, PPGI with 245mpa- 350mpa yield strength
Thickness0.3-0.9 mm
Power7.5kw, hydraulic 2.2kw
Forming speed 15m/min

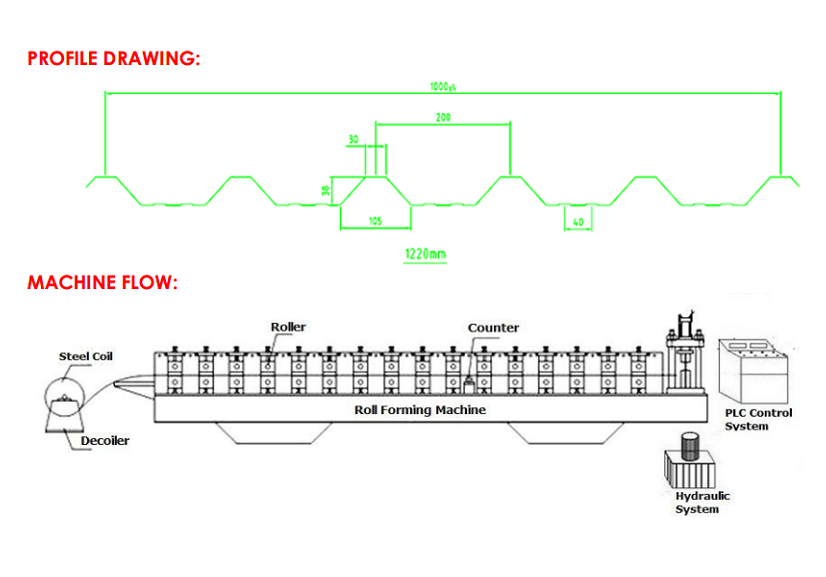

Width of the plates1220mm as per drawing
Formed width 1000mm as per drawing
Roll stations20 steps
Shaft diameter 75mm
Material of forming rollers5# CNC lathes, heat treatment,
hard chrome coated with thickness 0.04mm, surface with
mirror treatment (for longer life and anti-rust)
Machine FoundationH350 Steel, sideboard thickness : 14mm
Machine with manual pre-cuter
Controlling systemPLC
Voltage380V, 50Hz, 3Ph (as customer require)
Cut to length tolerance ≤±2mm
Material of cutter bladeCr12 mould steel with quenched treatment HRC58-62
Hydraulic station inside of the machine
CuttingCutting MotionThe main machine automatically stops and
then cutting. After the cutting, the main machine will
automatically start.
Material of bladeGCR12 with heat treatment
Length MeasuringAutomatic length measuring
Tolerance of length10+/-1.5mm
PLC Control SystemVoltage, Frequency , Phase380V,60Hz, 3 Phase
Automatic length measurement
Automatic quantity measurement
Computer used to control length and quantity. Machine will
automatically cut to length and stop when required quantity is
achieved.
Length in accuracy can be amended easily
Control PanelButton-type switch and touch screen
Unit of lengthMillimeter (switched on the control panel)
PLC control the quantity and cutting length automatically.
Input the production data (batch, pcs, length, etc. on the
touch screen, it can finish the production automatically
PLCDelta
InverterDelta
Touch ScreenWEINVIEW
EncoderOmron
