CNC Press Brake Machines in UAE
The Complete Buyer’s Guide to Industrial Hydraulic Press Brake Machines
What Is a CNC Press Brake Machine?
A CNC press brake machine is one of the most essential tools in modern metal fabrication. Whether you are building structural steel components, HVAC ducting, electrical enclosures, or automotive parts, this machine delivers the precise bends and angles required in industrial production.
The term “press brake” refers to the machine’s mechanism: a powered ram (punch) presses the sheet metal workpiece down into a die (V-block), creating a bend. The CNC (Computer Numerical Control) system allows operators to program exact angles, depths, and sequences — delivering repeatability that manual machines simply cannot achieve.
Key Components of a CNC Press Brake
- Upper beam (ram / punch holder)
- Lower beam (die holder / V-block)
- Hydraulic cylinders (Y1 and Y2 axes)
- Back gauge system (X, R, Z axes for workpiece positioning)
- CNC controller (touchscreen or dedicated CNC unit)
- Side frames (welded steel plate construction)
- Crowning system (compensates beam deflection for straight bends)
How Does a CNC Press Brake Work?
Step-by-Step: The CNC Press Brake Bending Process
- Programming the CNC Controller: The operator inputs the required bend angle, material thickness, bend length, and sequence into the CNC system. Modern machines use touchscreen controllers with auto-calculation.
- Material Placement: The sheet metal workpiece is placed on the lower die (V-block). The back gauge (motorized stop) positions the sheet to the correct depth.
- Punch Descent (Y-axis): The hydraulic ram drives the upper punch downward. Dual hydraulic cylinders (Y1 and Y2) operate synchronously, controlled by the CNC to ensure parallel movement across the full bending length.
- Metal Deformation: As the punch enters the die opening, the metal is bent to the programmed angle. The machine uses air bending, bottom bending, or coining depending on the application.
- Angle Verification: Advanced CNC machines use automatic angle measurement systems to verify the actual bend angle, compensating for spring-back in real time.
- Back Gauge Repositioning: For multi-bend sequences, the CNC automatically repositions the back gauge for the next bend.
- Completion & Cycle Repeat: The ram retracts, and the operator repositions the workpiece (or the machine auto-feeds in automated setups) for the next bend or piece.
Types of Press Brake Machines Available in UAE
1. Hydraulic CNC Press Brake (Most Popular in UAE)
The most widely used type in the UAE market. These machines combine the power of a hydraulic system with the precision of CNC control. Both Omega CNC (PB1332 series) and Vox (VPB series) machines in this guide are hydraulic CNC press brakes.
- Best for: Steel fabrication, construction components, HVAC, automotive parts
- Tonnage range: 40 Ton to 250 Ton (UAE market)
- Working length: 1600 mm to 3200 mm
- Control: CNC touchscreen with multi-axis back gauge
- Hydraulic system: Germany Rexroth system (Vox models) or equivalent
2. NC (Numerical Control) Press Brake
A step below CNC — uses simpler numerical programming without full computer control. The Omega MPB series falls in this category (“Hydraulic NC Press Brake”).
- Best for: Repetitive, simpler bends with lower programming needs
- More affordable than full CNC models
- Less flexibility for complex multi-bend sequences
Top CNC Press Brake Machines Available in UAE
1. Hydraulic NC Press Brake— Omega PB1332
Boost your metal fabrication capabilities with our advanced hydraulic CNC press brake. Designed for precision and efficiency, this machine provides exceptional control for bending and shaping metal sheets. Featuring a powerful hydraulic system and innovative CNC technology, our press brake delivers consistent, high-quality results, even for complex projects. Ideal for use in the automotive, aerospace, and construction industries, our hydraulic CNC press brake meets the rigorous demands of modern manufacturing. Learn how our press brake can enhance your production process, minimize material waste, and increase productivity. Contact us today to discover more about our hydraulic CNC press brake and how it can benefit your business.

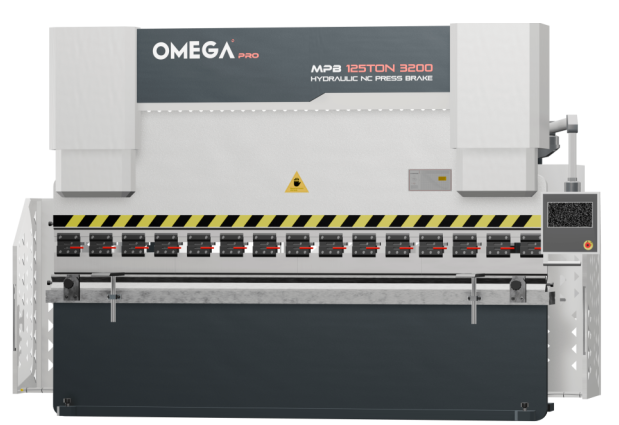

2. Hydraulic NC Press Brake — Omega MPB 125Ton × 3200
Omega’s main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

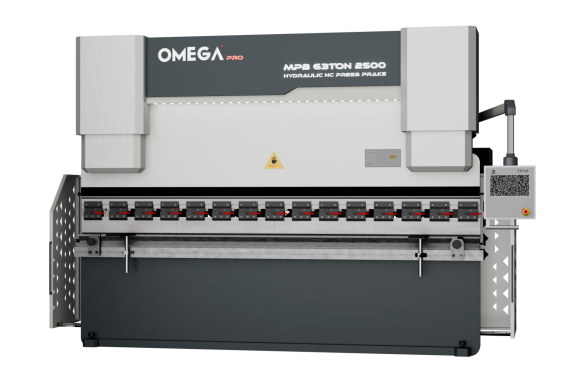

3. Hydraulic NC Press Brake — Omega MPB 63Ton × 2500
Omega main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

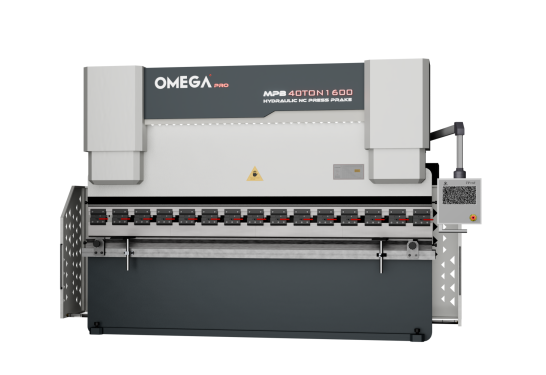

4. Hydraulic NC Press Brake — Omega MPB 40Ton × 1600
Omega main products are CNC Hydraulic Press Brakes, Hydraulic Press Brake and Shearing machine. Their goal is to produce superior quality machines at reasonable prices with experienced engineering department conducting research and development on all machines and ongoing improvements as well.

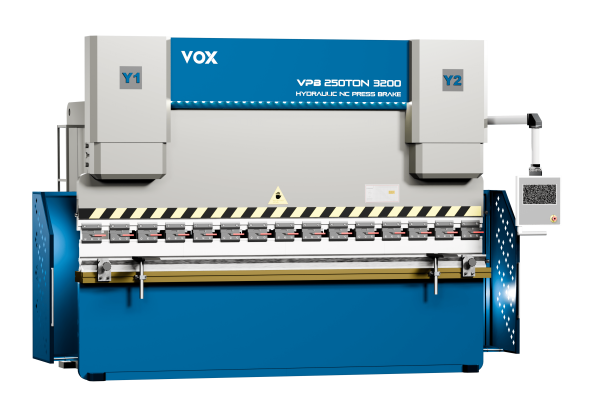

5. Hydraulic CNC Press Brake — Vox VPB 250Ton × 3200
Vox main products are CNC Hydraulic Press Brake, Hydraulic Press Brake and Shearing machine. Vox offers quality Hydraulic Press Brakes and Hydraulic Shearing machine that provides simplifies and easily accessible controls for optimum operator efficiency and output.
The machine adopts steel plate welded frame, high strength and rigidity. After annealing, stress relief, overall processing. Ensure that the machine precision. The machine adopts hydraulic transmission, and use of Germany Rexroth world brand hydraulic system.

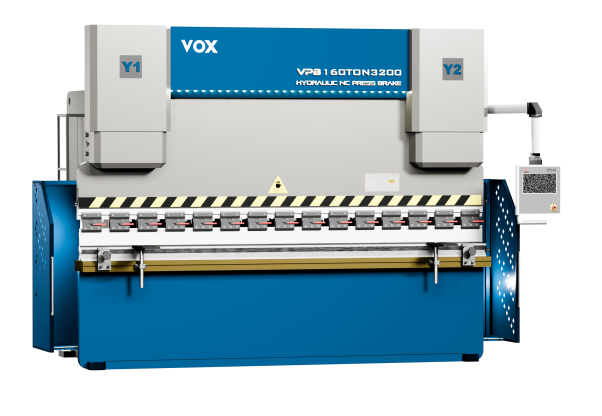

6. Hydraulic CNC Press Brake — Vox VPB 160Ton × 3200
Vox main products are CNC Hydraulic Press Brake, Hydraulic Press Brake and Shearing machine. Vox offers quality Hydraulic Press Brakes and Hydraulic Shearing machine that provides simplifies and easily accessible controls for optimum operator efficiency and output.
The machine adopts steel plate welded frame, high strength and rigidity. After annealing, stress relief, overall processing. Ensure that the machine precision. The machine adopts hydraulic transmission, and use of Germany Rexroth world brand hydraulic system.
Frequently Asked Questions
How does a CNC press brake work?
A CNC press brake works by using a hydraulic or servo-electric system to drive an upper punch (ram) down into a lower V-shaped die. The CNC controller precisely manages the ram position, speed, and depth based on programmed parameters (material type, thickness, bend angle, sequence). Dual hydraulic cylinders (Y1 and Y2) ensure synchronized movement across the full bending length. The back gauge system (motorized X-axis stop) automatically positions the workpiece for each bend in a sequence, allowing complex multi-bend parts to be produced with high repeatability.
What is the difference between a CNC press brake and a regular press brake?
A regular (manual) press brake requires the operator to manually set stops, angles, and positioning for each bend using mechanical adjustments. A CNC press brake uses a computer controller to store programs with exact settings for bend angle, depth, back gauge position, ram speed, and bend sequence. CNC machines offer far higher precision (±0.01°), speed, and repeatability — critical for production environments. Manual machines require highly skilled operators and are slower for complex parts.
What tonnage press brake do I need for 4mm mild steel?
For 4mm mild steel (tensile strength ~400 MPa) with a 3000mm bending length using an 8× die opening (32mm V-die), you need approximately 55–65 tons. Always add a 20–30% safety margin, making a 80–100 ton machine appropriate. For shorter bending lengths (1600mm), 40–50 tons may be sufficient. Use the manufacturer’s bending force chart or tonnage calculator for precise calculations specific to your material and tooling.
What is the price of a CNC press brake machine in UAE?
CNC press brake machine prices in UAE vary by capacity and brand. Entry-level NC hydraulic models (40T–63T) start from approximately USD 15,000–25,000. Mid-range CNC models (125T–160T) range from USD 35,000–80,000. Heavy-duty CNC press brakes (250T, 3200mm) can cost USD 70,000–120,000 or more. Prices depend on capacity, working length, CNC controller brand, hydraulic system, tooling, installation, and warranty. Contact suppliers directly for UAE-specific pricing including delivery and support.
What materials can a hydraulic press brake bend?
Hydraulic press brakes can bend a wide range of metals including: mild steel (most common), stainless steel, aluminum, copper, brass, galvanized steel, and pre-painted sheet metal. The required tonnage depends on material type, thickness, tensile strength, and bend length. Harder and thicker materials require higher tonnage. Always consult the machine’s bending capacity chart for your specific material and thickness combination.
How do I choose the right press brake for my UAE workshop?
To choose the right press brake: (1) Determine the thickest material you need to bend and its tensile strength; (2) Identify the maximum bend length required; (3) Calculate required tonnage using bending force formulas or charts; (4) Decide between CNC (complex/high-volume) vs NC (simpler/lower volume) based on your production needs; (5) Consider available floor space and power supply (typically 380V 3-phase in UAE); (6) Evaluate supplier after-sales support and spare parts availability in UAE; (7) Compare at least 3 quotes including installation and training.
What is spring-back in press brake bending and how is it managed?
Spring-back is the elastic recovery of metal after bending — when the punch is removed, the material partially returns toward its original flat position, resulting in a slightly larger angle than programmed. In CNC press brakes, spring-back is managed by: (a) over-bending (programming a smaller angle than required so the material springs back to the target angle); (b) using automatic angle measurement systems that detect actual bend angle and compensate in real time; (c) bottom bending or coining for critical tolerances where spring-back variation is unacceptable. The CNC controller on advanced machines stores material-specific spring-back compensation data.
Can a press brake machine be used for stainless steel in UAE?
Yes, press brakes can bend stainless steel, but it requires more tonnage than mild steel (typically 1.5–2× more force) due to higher tensile strength. Key considerations: use larger V-die openings (minimum 8× material thickness) to reduce cracking risk; use protective film or tooling coatings to prevent surface scratching; consider that stainless has higher spring-back than mild steel, requiring angle compensation; ensure the machine has sufficient capacity for your stainless steel thickness and length requirements.
Finding the Right CNC Press Brake Machine in UAE
Whether you are setting up a new fabrication facility or upgrading your existing press brake capacity, choosing the right CNC press brake machine in UAE requires careful analysis of your material specifications, production volume, and budget.
The machines covered in this guide — from the compact Omega MPB 40T for small workshops to the heavy-duty Vox VPB-250T for structural steel fabrication — represent a comprehensive range that covers most industrial needs in the UAE market.
For a precision-focused operation, the Omega CNC PB1332 delivers CNC-grade accuracy. For heavy-duty industrial bending with world-class hydraulics, the Vox VPB series with Germany Rexroth systems is the premium choice. The Omega MPB NC series offers an excellent balance of performance and CNC press brake machine price for mid-range requirements.
