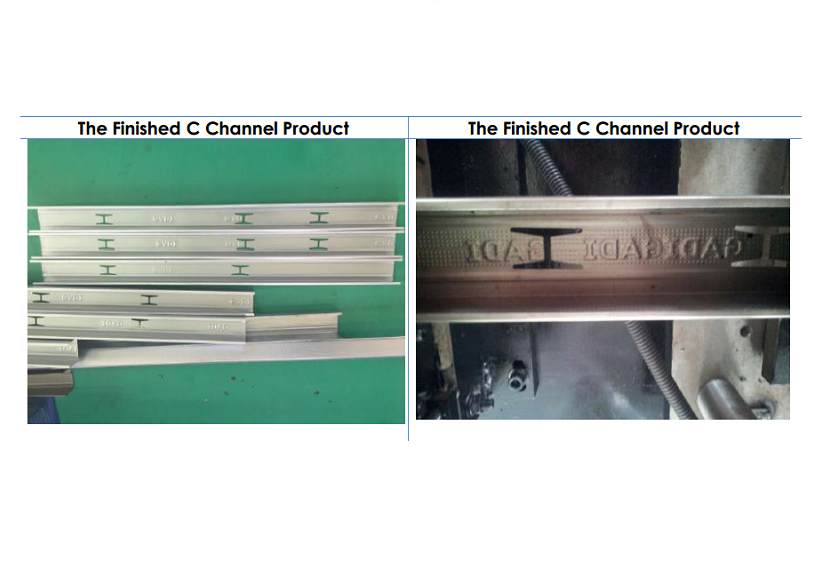

C CHANNEL ROLL FORMING MACHINE

MACHINE COMPONENTS:

  • Decoiler
  • Roll Forming Machine
  • Control System
  • Hydraulic System

Quick info

SKU: 0666445813-1-1 Categories: ,
GET A QUOTESpecs pdf download

Description

SERIES DETAILSPARAMETER
MaterialRaw materialSteel
Material thickness0.4-0.6 mm
DecoilerStructureManual passive type
Single head type
Loading capacity1.5 Ton
Coil inner diameter450-550 mm
Roll Forming MachineGuiding devicePlaced on the machine by seller
Rolling shaft material45# STEEL
Shaft diameter50 mm
Roller materialGB-Cr12
Rolling station12stations
Work speed15-20 m/min
Machine structureVertical memorial arch frame
Machine basic frameSteel plate welded
BearingRoller bearing (Famous brand of harbin)
Work power5.5 kw
TransmissionBy gear (With Cover)
Safety coveravailable
AppearanceGood appearance with no burrs in steel
body nor traces of rust or defects in
painting.
Control SystemFrequency brandDelta from Taiwan
PLC brandDelta from Taiwan
Screen typeTouch screen
Screen
language
English/Chinese/Arabic/French as requested
Cut command Yes
Profile length setupYes
Batch quantity
program
Yes
Hydraulic SystemWork typeHydraulic
Driving methodBy Cylinder
Motor power5.5 kw
Cutter material GB-Cr12
Cutting length
tolerance
±0.5 mm/3m
Oil pumpSolenoid valves 1 set with cooling
system
Cutting featureAutomatic cutting after forming, no distorting or wasting
Machine weight4.2 Tons
Machine dimension5800*900*1400 mm
Machine colorblue (As requested)
Work voltage380V-50HZ-3P (As requested)
Total power11 kw
