HYDRAULIC IRON WORKER- DIW-120 E/L (120TON)


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines, CNC gantry milling machines, universal milling machines, CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



MACHINE DESCRIPTION:

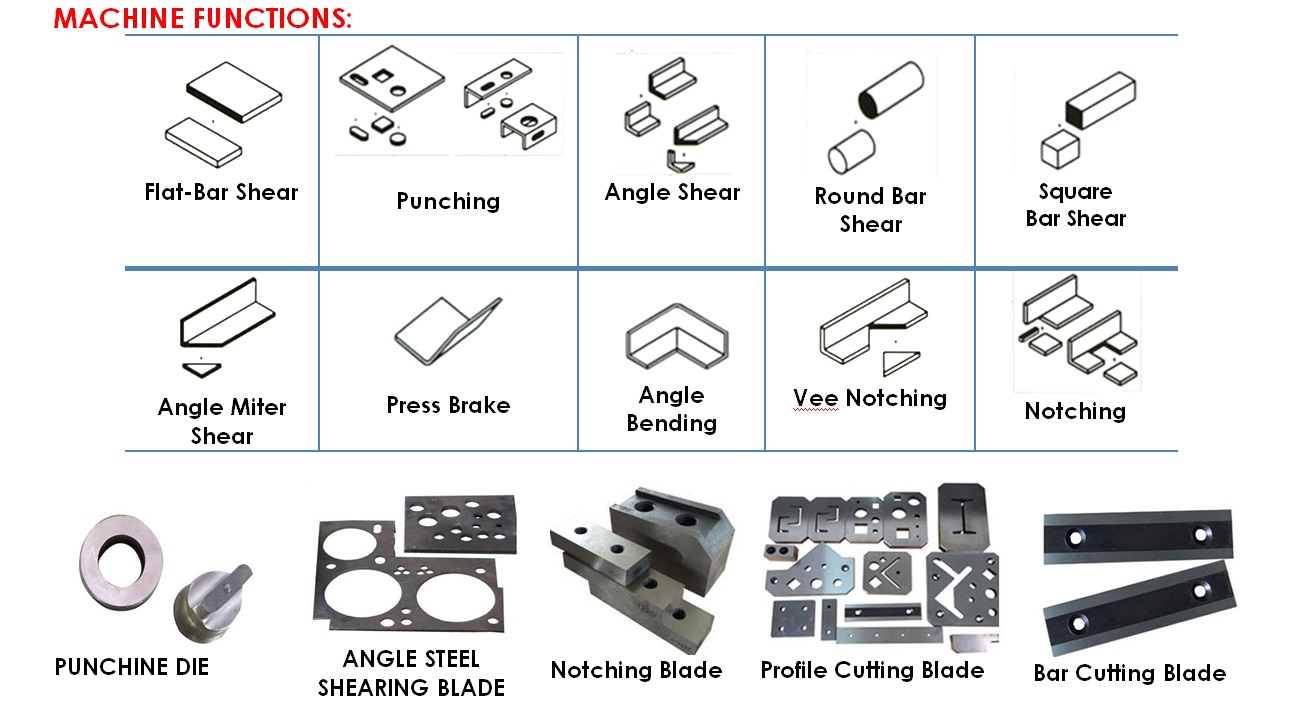

Hydraulic Iron Worker can be used for punching, shearing, notching and other metal fabrication works it consist of two hydraulic cylinders working simultaneously to produce an output pressure of 120 Ton.

Quick info

SKU: 9589161480-1-1 Categories: ,
GET A QUOTESpecs pdf download

Description

HYDRAULIC MULTIFUNCTION IRON WORKER
Model No DIW-120 E/L
Punching Pressure 120Ton
Max. Shearing thickness of steel plate25 mm
Strength of steel plates≤450 N/mm2
Angle of shearing8˚
Shearing sizes of one stroke(mm)16 x 600
(W*H) 25 x 330
Ram stroke80 mm
Number of stroke8-22 times/min
Depth of Throat400 mm
Punching thickness 25 mm
Max. diameter of punching35 mm
Round Steel 60 mm
Square steel 50 x 50 mm
90° shearing of equal-angle steel160 x 160 x 14 mm
45° shearing of equal-angle steel 80 x 80 x 7 mm
H Beam 120 x 120 mm
C-Channel 200 x 75 x 9 mm
I-Beam 200 x 102 x 9 mm
Main motor power 7.5 / 11 KW
Overall dimension (L x W x H)2350 x 980 (1250) x 2100 mm
Net Weight 4800 kg.
Brand NewChina



MACHINE FEATURES:
  1. Robust and accurate steel frame
  2. Large punch table with scales
  3. 2 shielded foot controls
  4. 2 Separate Die Openings for oversized punching
  5. 5 working stations for wide applications
  6. Movable work light as standard
  7. Overload protection on hydraulic system
  8. Electric back gauge
  9. 5 pieces punches and dies (punch die, angel steel, square steel, round iron and a series of shearing die)
  10. Other punches and dies can be produced as clients' requirement.
